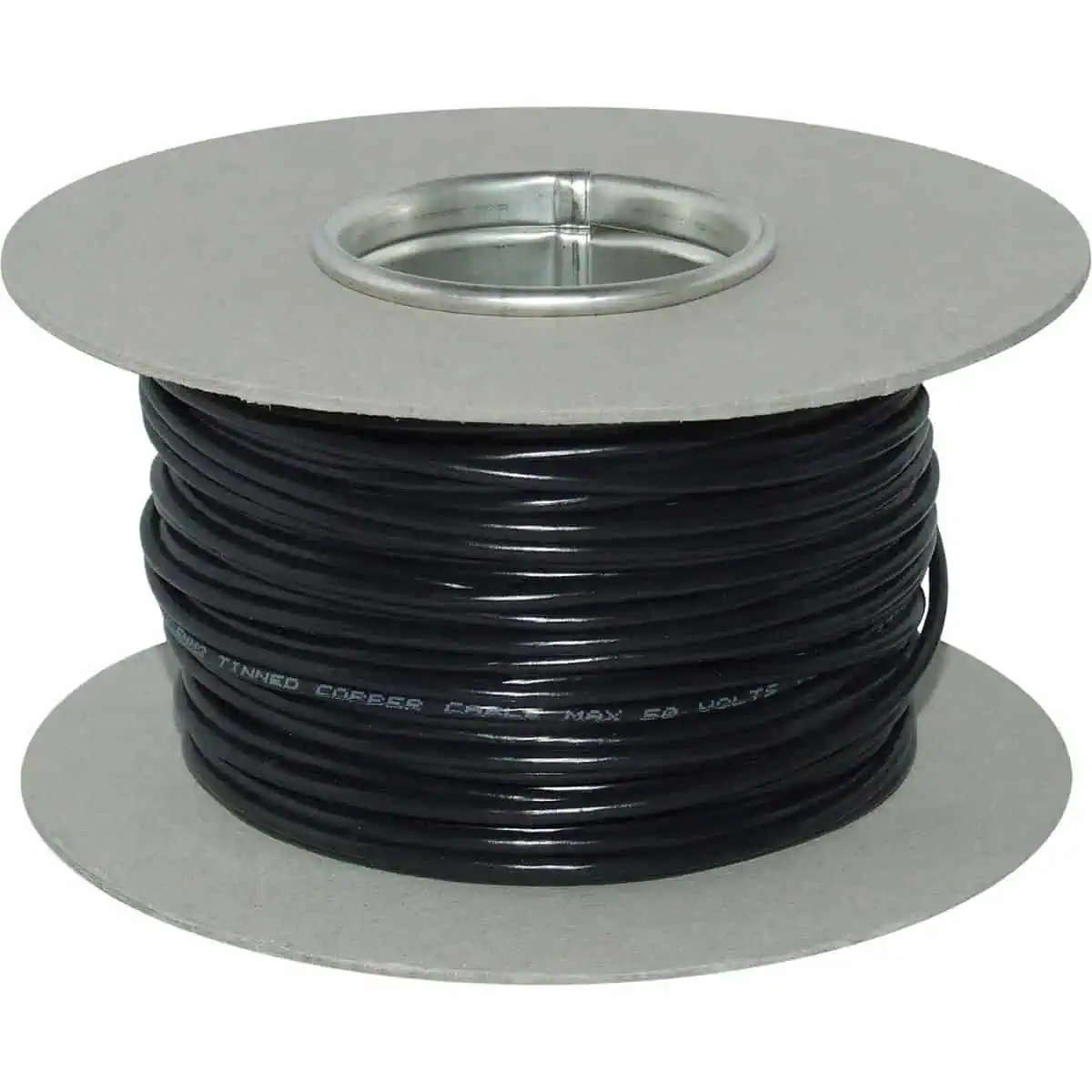

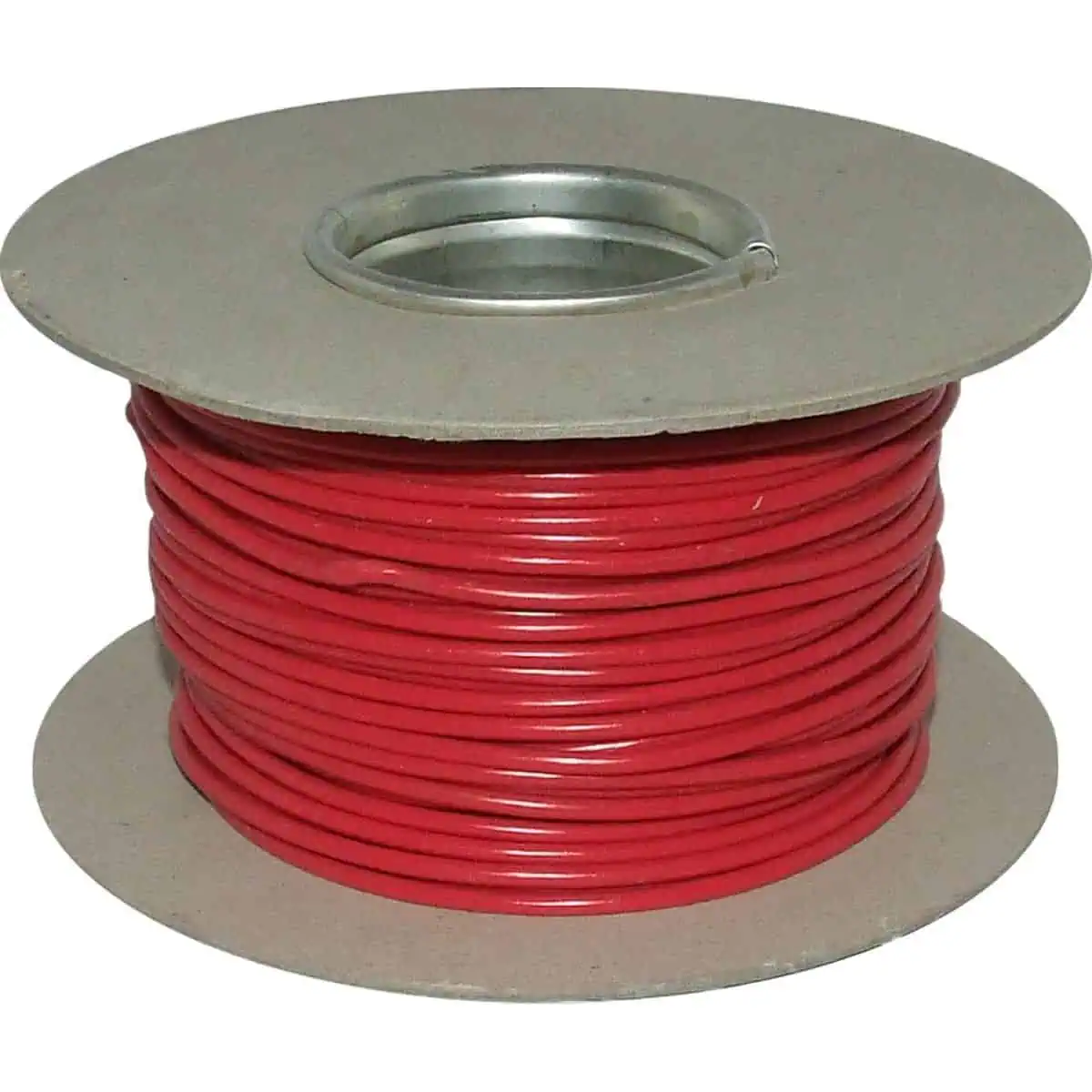

OceanFlex Single Core Tinned Cable
£ 0.72 - £ 3.60 / metre
Sold per Metre
High temperature thin wall low voltage wiring cables suitable for use in automotive, marine and other harsh
environments. The tinned copper conductors make this cable more resistant to corrosion.
| Part No | Conductor Specification (mm)* | Conductor Cross Section (mm²) | Maximum Overall Diameter (mm) | Nominal Current Rating (Amps)** | Maximum Load (Watts) at 12v | Maximum Load (Watts) at 24v | Maximum Resistance Per Metre at 20ºC (Ohms) |
| CM1.5 | 21/0.30 | 1.5 | 2.4 | 21 | 252 | 504 | 0.013 |
| CM2.5 | 35/0.30 | 2.5 | 3 | 29 | 348 | 696 | 0.00782 |
| CM4.0 | 56/0.30 | 4 | 3.7 | 39 | 468 | 936 | 0.00485 |
| CM6.0 | 84/0.30 | 6 | 4.3 | 50 | 600 | 1200 | 0.00323 |
| CM10.0 | 80/0.40 | 10 | 6 | 70 | 840 | 1680 | 0.00185 |
*The conductor specifications shown are representative configurations; actual cable strand may differ slightly, but will meet resistance values shown.
**Nominal current amperage ratings are provided as a guide only, and can vary depending on application, conditions and environmental factors. If in doubt, please consult a qualified electrician.
Part Number
Size / Colour
Port Solent
Warehouse
99754150
1.5MM / Black
49m
0m
99754174
1.5MM / Red
47m
0m
99754181
2.5MM / Black
44m
0m
99754198
2.5MM / Red
37m
0m
99754204
4MM / Black
30m
0m
99754211
4MM / Red
30m
0m
99754228
6MM / Black
30m
0m
99754235
6MM / Red
30m
0m
99754242
10MM / Black
30m
0m
99754259
10MM / Red
30m
0m
