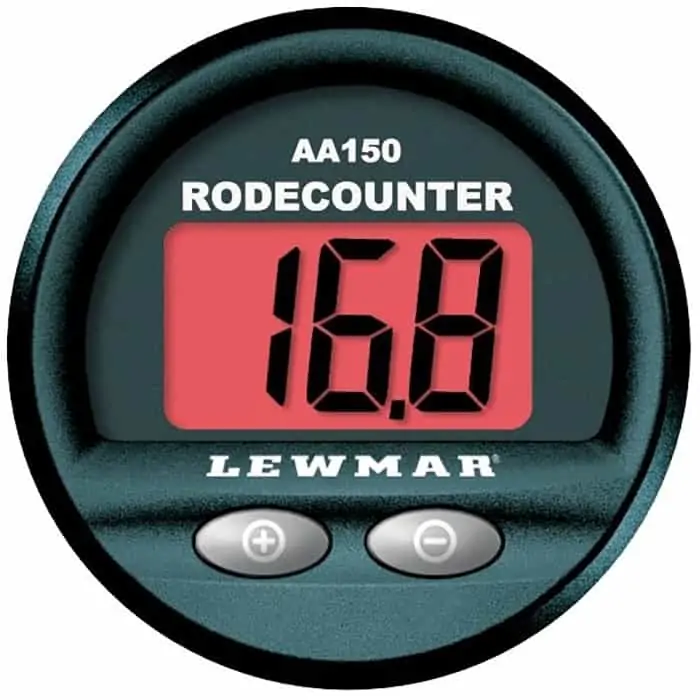

Lewmar Chain Counter AA150 Plug/Play

The AA150 rode counter (chain counter) displays the length of rode deployed through the windlass and can fit any windlass.

Features

• LCD display shows at a glance how much anchor rode is out.
• Docking alarm sounds when the anchor is close to docking.
• Adjustable red backlighting ensures clear night viewing
• Choice of feet or metres rode measurement
• Easy installation and set up
• Plug and play AA sensor installation
• Works with rope/chain or all-chain rode.
• Use with DC, AC and hydraulic windlasses
• Install up to 2 units or combine with the AA560, AA710 or AA300 series for multiple stations on the boat
• Standard 60mm (2.36″) marine instrument console

Specifications

• Power Supply: 12V or 24V DC
• Current Consumption: 30mA
• Temperature Range: 23F to 140F (-5C to 60C)
• Maximum Voltage: 30V DC

Kit Includes: 1 console unit, 1 grey sensor, 3 magnets ( 6mmx4mm, 8mmx6mm, 10mm x 8 mm), load sensing connectors, installation and operation instructions
