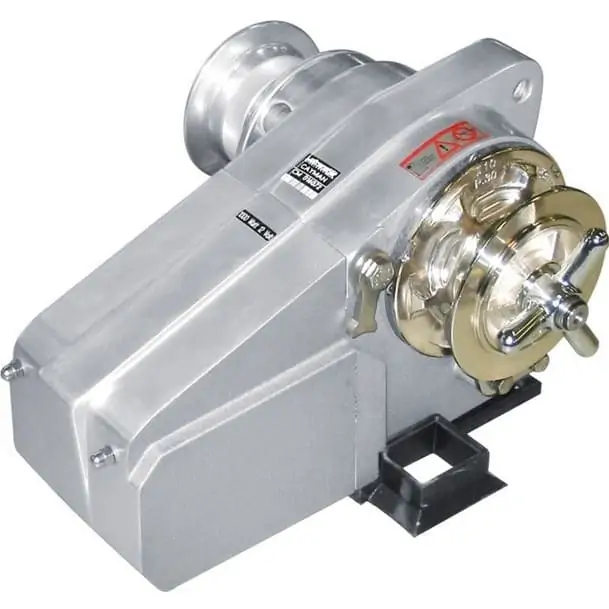

Lofrans Cayman Horizontal Windlass
£1,299.95
The Cayman 88 horizontal windlass is a very popular amongst boat builders worldwide. The Cayman has a 12 volt 1000 watt motor.
Features:
- Reversing motor allows for anchor to be released electrically.
- Anchor can also be released manually.
- Rope Drum can be used independent of gypsy.
- Supplied with handle and control box.
- Suitable for boats up to approx. 13m.
- Made in special seawater-resistant light alloy, polished and anodised or with additional white polyester coating protection.
- D.C. electric motor: 1000 Watt.
- 12 Volt.
- Gypsy in marine bronze alloy for chain Ø 8mm.
- Manual operation available in case of emergency.
- Maximum pull: 900Kg (1980lb) 1000 Watt.
- Haulage speed: 20m/min (1000Watt) 50Kg.
- Current Draw: 70-100 Amp (1000W / 12V)
- Weight: 21kg (46lb) 1000 Watt.
|
Model |
Amps at working load (A) |
Circuit Breaker |
Gipsy for Chain |
Line Speed at Working Load |
Max Line Speed |
Maximum Pull |
Motor Size |
Net Weight |
Power Supply |
Type |
Working Load (kg) |
|
220279 8mm |
150 |
100 A |
8mm, ISO 4565 DIN 766 |
16m/min |
32m/min |
1250kg |
1000W |
25kg |
12v |
With Drum |
170 |
|
419732 10mm iso |
150 |
100 A |
10mm, ISO 4565 |
16m/min |
32m/min |
1250kg |
1000W |
25kg |
12v |
With Drum |
170 |
| Model | A | D | F | L | M | N |
|---|---|---|---|---|---|---|
| 1000W | 230 | Ø85 | 370 | 85 | 150 | 175 |
Part Number
Size
Port Solent
Warehouse
99126162
8mm
1
1
99142230
10mm (iso)
1
4
