Lofrans Kobra Windlass
£1,299.95 £1,129.95

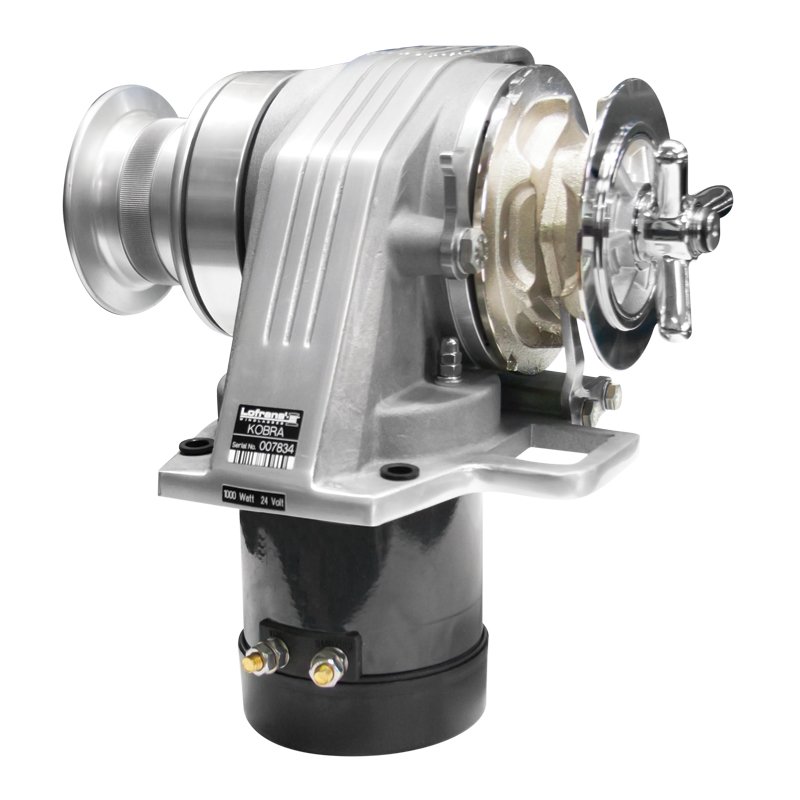

The Lofrans Kobra is a neat, compact horizontal windlass with its gearbox in housing above deck and the reversing motor below. The Kobra has a 1000 watt motor in 12 volt.
Features:
- Anchor can be released electrically or manually.
- Rope drum can be used independently of gypsy.
- Supplied with handle and control box.
- Suitable for boats up to approx. 13m.
- Made in special seawater-resistant light alloy, polished and anodised or with additional protective white polyester coating.
- Manual operation available, for use in emergencies.
- D.C. electric motor:, 12 Volts, 1000 Watt.
- Gypsy marine bronze alloy for chain Ø 8-10mm
- Maximum pull: 1250Kg.
- Haulage speed: 25-35m/min (50kg).
- Current draw: 117 Amp
- Weight: 19Kg
|
Model |
Amps at working load (A) |
Circuit Breaker |
Gipsy for Chain |
Line Speed at Working Load |
Max Line Speed |
Maximum Pull |
Motor Size |
Net Weight |
Power Supply |
Type |
Working Load (kg) |
|
220260 8mm |
150 |
100 A |
8mm, ISO 4565 DIN 766 |
16m/min |
32m/min |
1250kg |
1000W |
21kg |
12v |
With Drum |
170 |
|
428747 10mm
|
150 |
100 A |
10mm, ISO 4565 |
16m/min |
32m/min |
1250kg |
1000W |
21kg |
12v |
With Drum |
170 |
| Model | A | C | F | D | J | L | M | N |
|---|---|---|---|---|---|---|---|---|
| 1000W | 184 | 136 | 250 | Ø85 | Ø114 | 83 | 147 | 172 |
Part Number
Size
Port Solent
Warehouse
99197827
8mm
1
5
99197834
10mm iso
1
2
