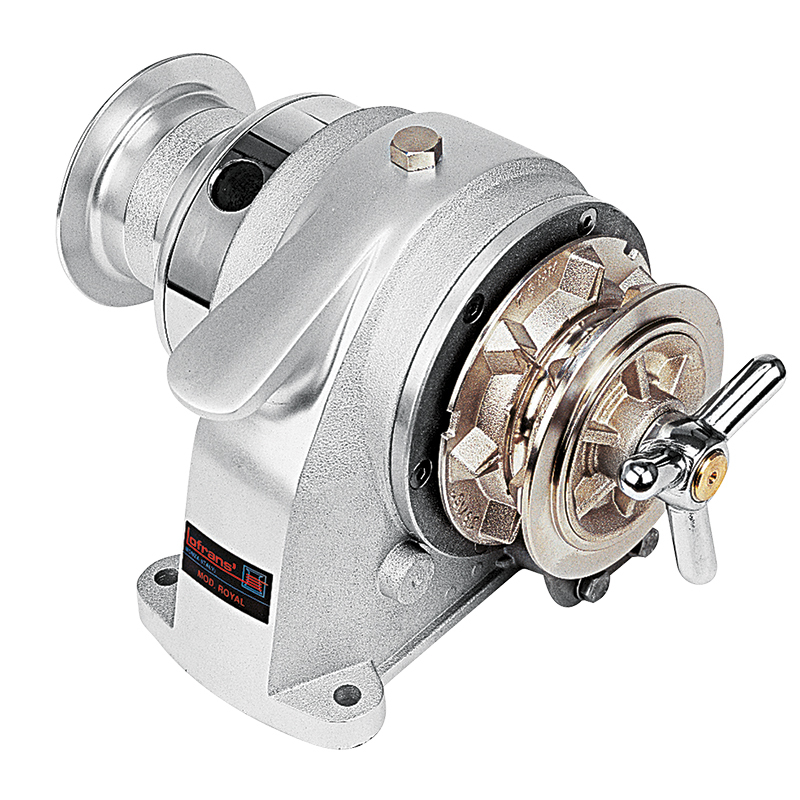

Lofrans Royal Windlass

£529.95

The Royal is a manual, horizontal windlass that is suitable for use on boats up to around 12m LOA. Double action operation brings in chain quickly and easily. Clutch to release chain is operated by releasing triple spiked side nut. Lifetime lubrication, alloy finish. Gypsies for 6mm, 8mm and 10mm chain. Max lifting power 250kg.

Features:

  • Marine aluminium anodised body
  • Independent Gypsy and drum operation
  • Manual chain release
  • Manual override
Code Gipsy For Chain Maximum Pull Motor size Net Weight Type Working load (kg)
220002 10 mm, ISO 4565 400 kg MANUAL 10 kg With Drum 70
404725 8 mm, ISO 4565 DIN766 400 kg MANUAL 10 kg With Drum 70



Model A D F L M N
Manual 192 Ø85 222 80 145 167

USER MANUAL

Part Number
Size
Port Solent
Warehouse
16131AXA
8mm
1
4
99126179
10mm (iso)
0
2
