South Pacific Vertical Windlass
£499.95 - £549.95

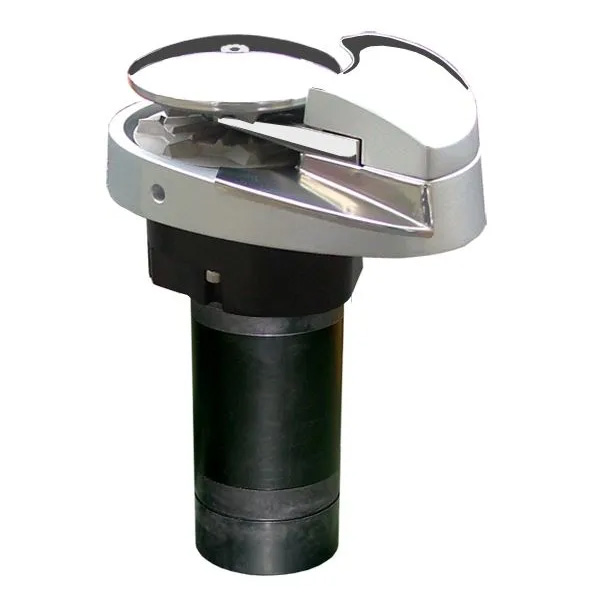

Vertical Windlass Kits with Aluminium Base – VA Series
The VA Series of one piece vertical windlasses come in two models with a combination of gypsy. The 1000W, VA1000 with an 8mm gypsy and the 700W, VA600 with either a 6mm or 8mm gypsy.
The VA series are made of marine grade aluminium alloy with a powder coated finish to ensure corrosion resistance. The metal gearbox, heavy duty DC motor and base have been designed in one providing a robust unit and enabling easier installation. The one piece vertical unit also eliminates the need for additional gears.
Windlass Kit
1.Windlass VA Series
2. Direct Control Switch SW-200 (no solenoid required)
3. Circuit Breaker CB-001-30
4. Fixing Bolts
5. Manual & Template
Features:
• Stainless steel gypsy takes both rope and chain
• Efficient spur gears, low current draw, high output power
• A torque limiter to deliver smoother operation and greater reliability.
• Efficient heavy duty DC motor produces less heat
• Manual retrieval capable with a handle bar included
• Compact one-piece unit for easy installation
Specifications
Power:1000W
Operating Voltage : 12V DC only
Max. Working Load : 300kg
Typical Working Load : 55kg
Retrieval Speed : 20m/min
Pay-Out Speed : 25m/min
Current Draw (Typical) : 22 A
Gear Type : spur gear
Weight : 6.5kg / 7kg

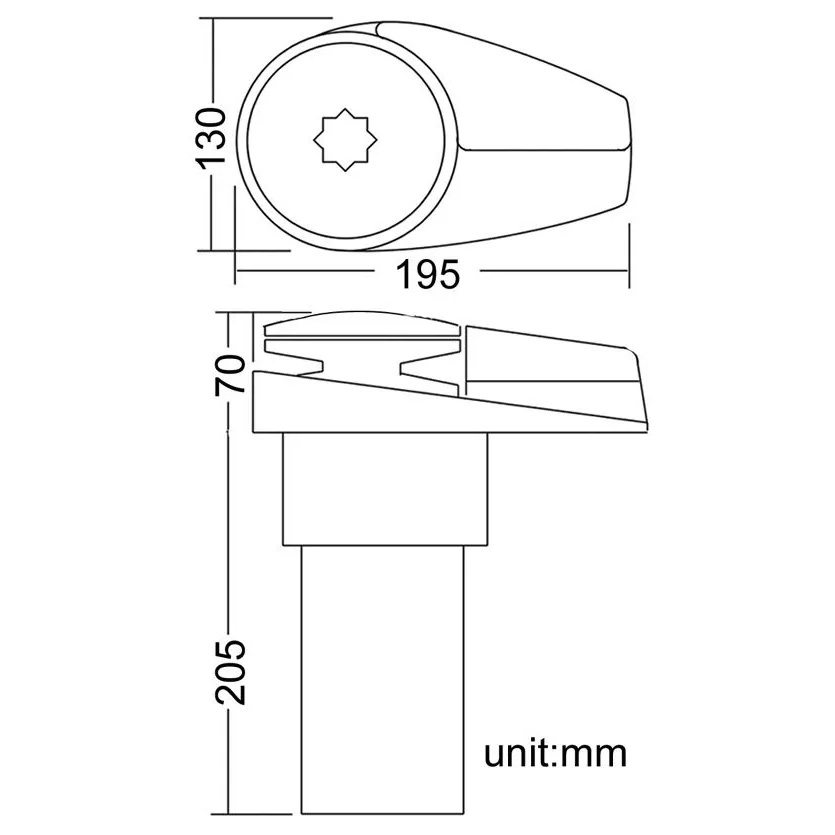

Dimension above deck: 195mm x 130mm x 140mm
Gypsy: 6mm chain which suits rope of 12mm.
Gypsy 8mm chain which suits rope of 12mm-14mm
Suit Deck Thickness : 3mm~60mm
