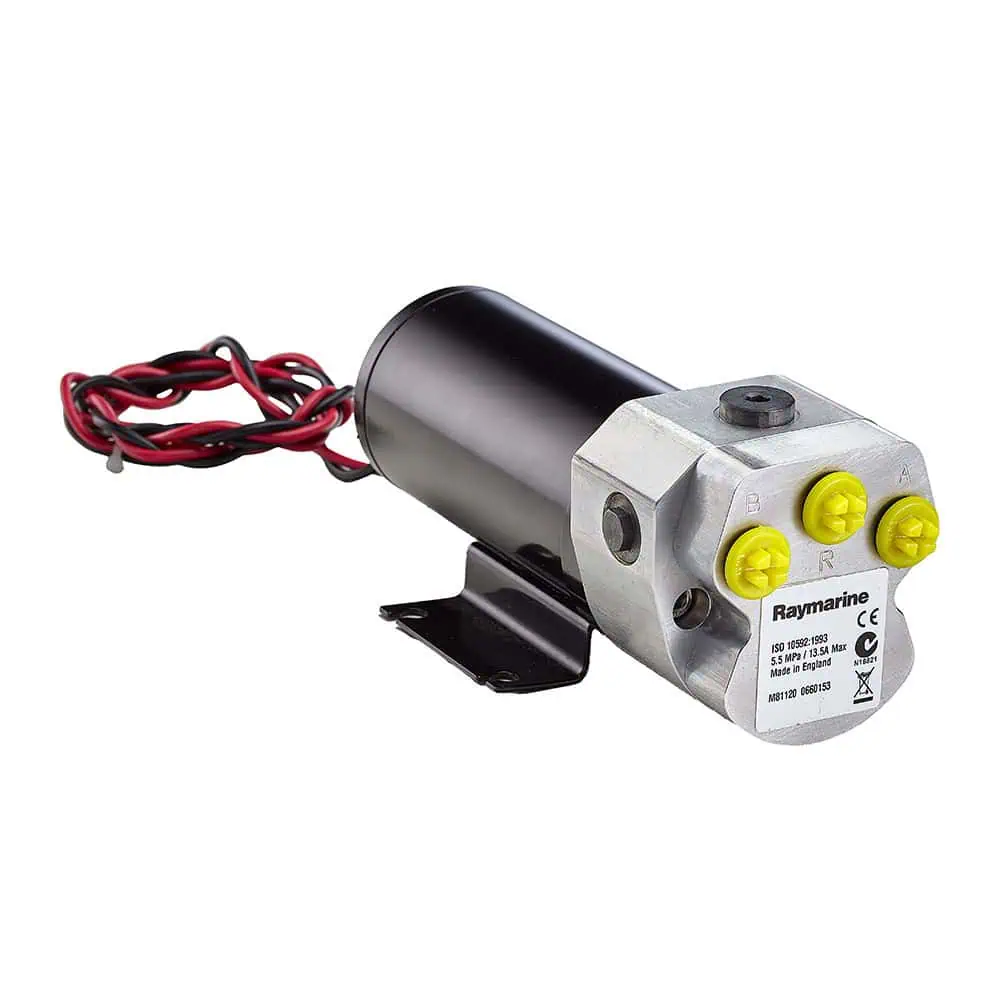

Raymarine Type 1 Hydraulic Pump

£ 875.00 £ 749.95

Out of Stock
This item is currently unavailable to purchase.

Want to be notified when this product is back in stock?

The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks.

  • Drive method DC Reversing hydraulic pump
  • Maximum stall 50 bar(750 psi)at 12 V
  • Peak Flow Rate 1000 cc/min(67 in 3 /min)(no load)
  • Power 12V Nominal 10 V to 15 V DC input
    Note: reduced voltages will severely degrade drive performance.

  • Power Consumption 24 Watts
  • Ram capacity (min-max) 80-230cc (4.9-14 cubic inch)
    • Part Number
