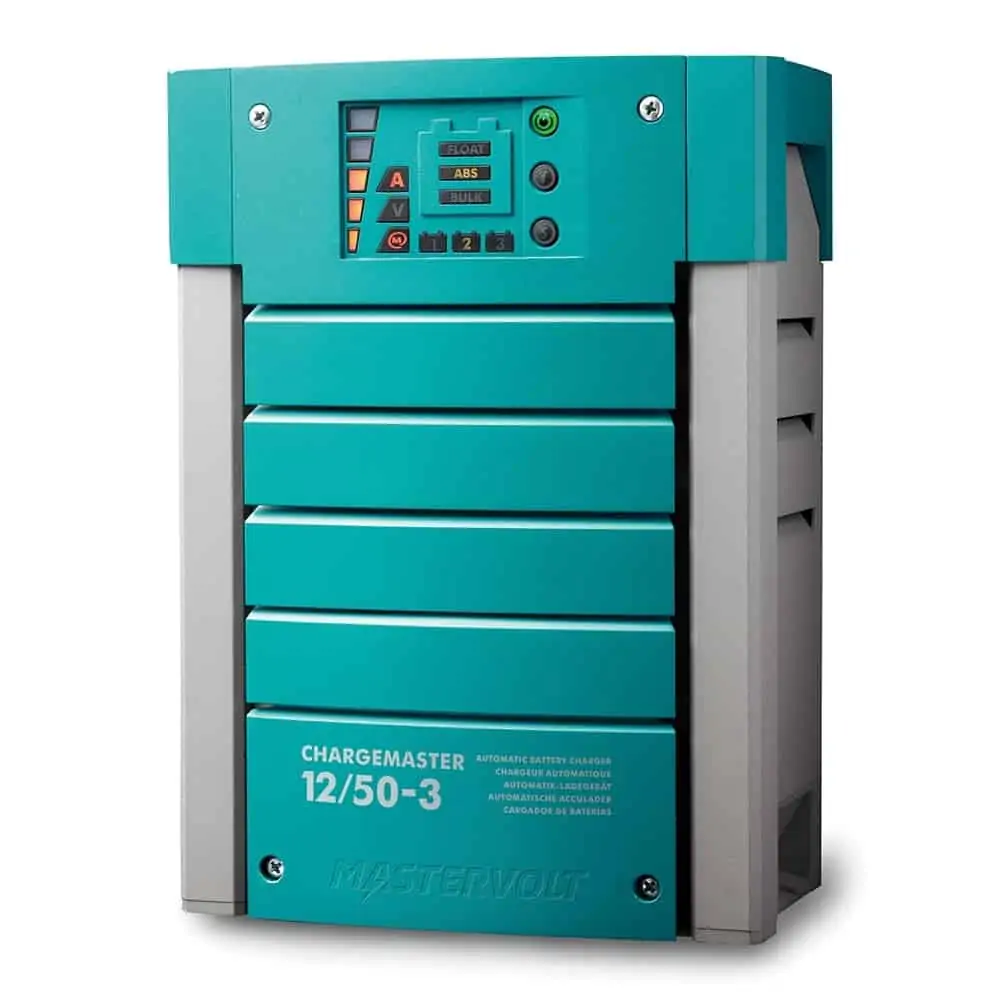

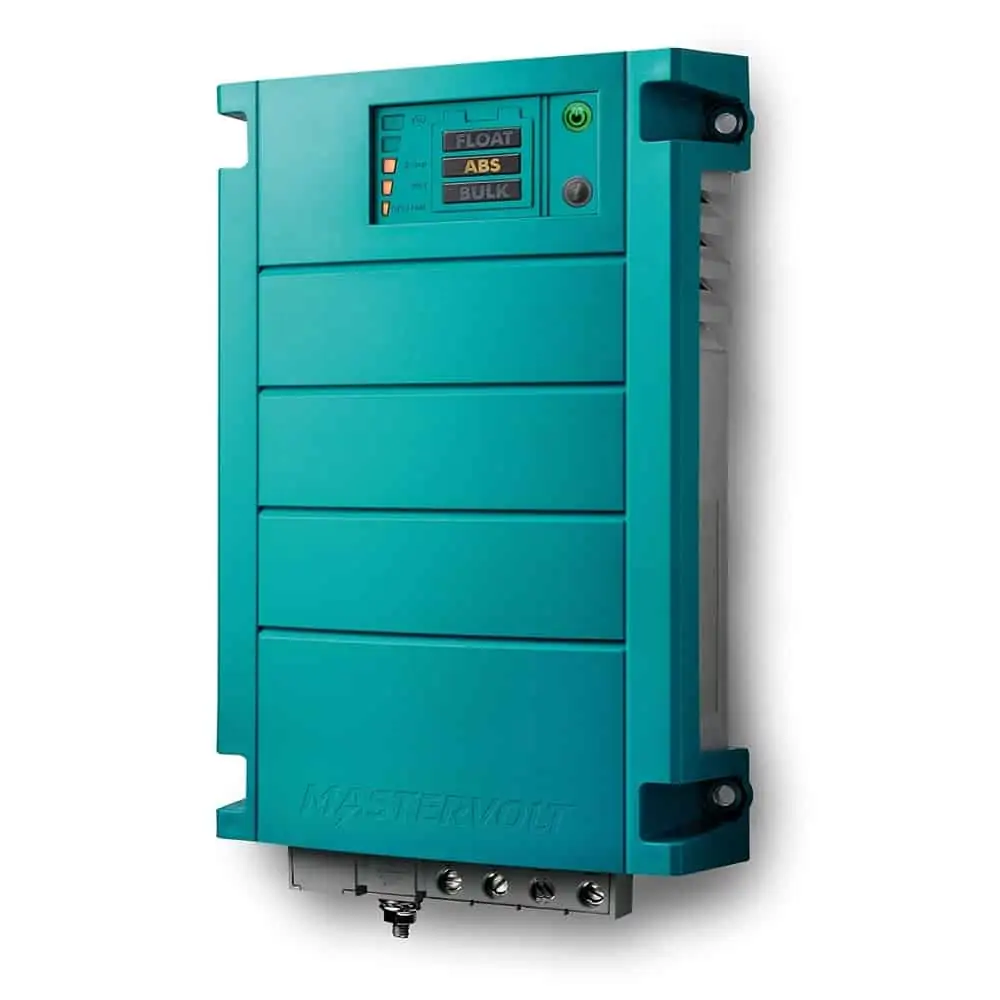

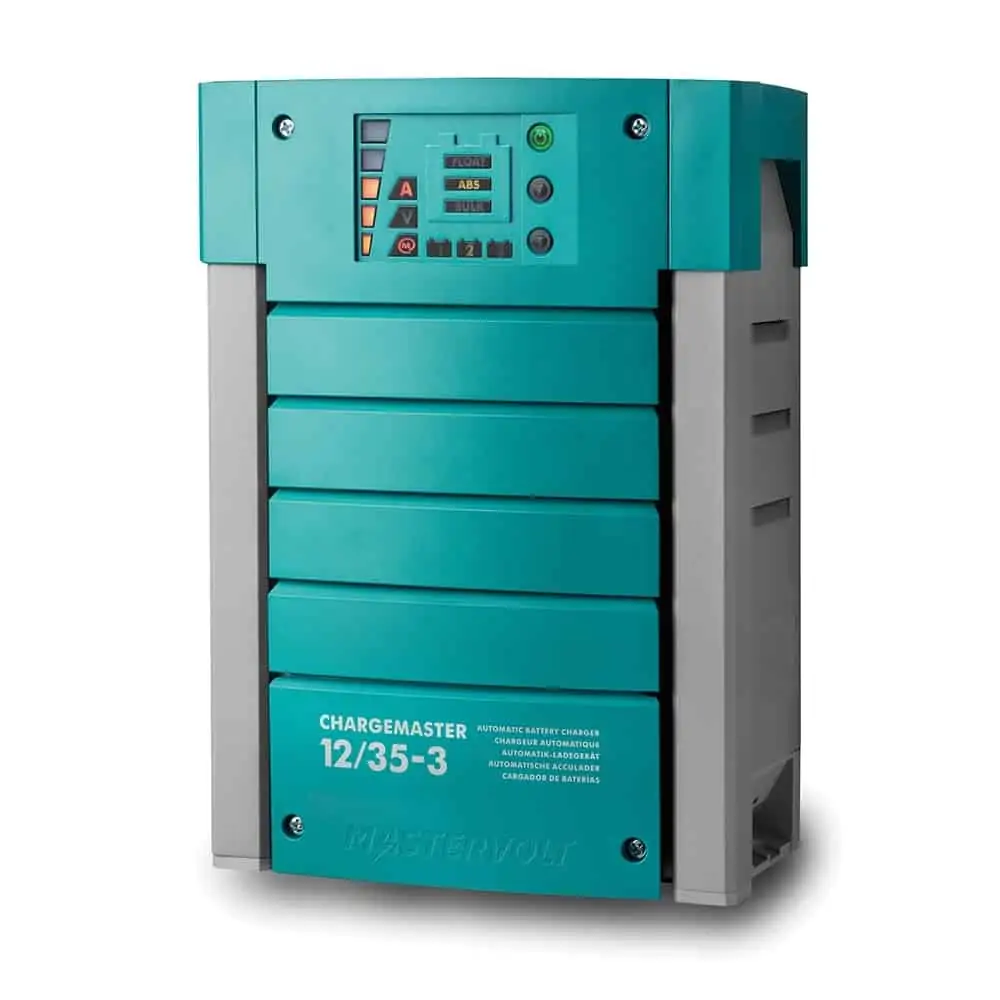

Mastervolt ChargeMaster Battery Charger
£ 329.95 - £ 649.95
Make the most of your batteries with the ChargeMaster series, plugging in and charging anywhere in the world. Mastervolt’s ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. Thanks to Mastervolt’s innovative 3-step+ charging process, batteries also perform better and last longer.
Clear Display
A clearly lit display on the ChargeMaster provides all essential information: charge current, charge voltage, charge phase and battery content measurement and/or battery condition measurement as a percentage of available Ah capacity. The display also provides an indication of MasterBus communication. Three buttons adjacent to the read-out panel allow for easy operating of the entire system.
Features
For recreational and semi-professional use.
Suitable for any type of battery, including Lithium Ion batteries.
3-Step+ charging technology for fast and complete charging, also charges depleted batteries.
Memory function prevents overcharging in case of unreliable mains.
Safe and complete charging due to standard safety features.
Charging capacity up to 1000 Ah.
Easy to connect and quick to install.
Can charge multiple battery banks simultaneously.
Built-in system functionality (MasterBus) in combination with other Mastervolt products.
Clear control panel.
Supplies your system without battery.
Charging your batteries with every voltage
The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1-regulation gets the most out of limited generator capacity.
Robust Connections
Solid metal-to-metal connectors equipped with strain relief prevent corrosion and overheating.
Charging multiple battery banks
The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.
DC Power Supply
Even if the batteries are not connected, Mastervolt ChargeMaster battery chargers can provide a constant DC output allowing you to turn on lights or keep the fridge cold.
| Specifications | 12V 25A | 12V 35A | 12V 50A | 24V 12A | 24V 30A |
| Nominal output voltage | 12 V | 12 V | 12 V | 24 V | 24 V |
| Total charge current | 25 A at 13.25 V | 35 A at 14.4 V | 50 A at 14.4 V | 12 A at 26.5 V | 30 A at 28.8 V |
| Number of battery outlets | 3 | 3 | 3 | 3 | 3 |
| Charge current second output | 25 A | 35 A | 50 A | 12 A | 30 A |
| Charge current third output | 25 A | 35 A | 50 A | 12 A | 30 A |
| Battery capacity range | 50-250 Ah | 70-350 Ah | 100-500 Ah | 24-120 Ah | 60-300 Ah |
| Nominal input voltage | 120/230 V (90-265 V), 50/60 Hz | 120/230 V (90-265 V), 50/60 Hz | 120/230 V (90-265 V), 50/60 Hz | 120/230 V (90-265 V), 50/60 Hz | 120/230 V (90-265 V), 50/60 Hz |
| AC connection | 2 mtr AC cable | connector strips | connector strips | 2 mtr AC cable | connector strips |
| Power supply mode | yes | yes | yes | yes | yes |
| Display/read-out | LED display | LED display | LED display | LED display | LED display |
| Fastening | 4x screw | mounting bracket (included) or 4x screw mounting | mounting bracket (included) or 4x screw | 4x screw | mounting bracket (included) or 4x screw |
| Dimensions, hxwxd | 234 x 132 x 60 mm | 291 x 210 x 131 mm | 291 x 210 x 131 mm | 234 x 132 x 60 mm | 291 x 210 x 131 mm |
| Weight | 1.8 kg | 4 kg | 4 kg | 1.8 kg | 4 kg |
| Approvals | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RRR | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RMRS, RRR | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RMRS, RRR | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RRR | CE, ABYC A-31, SAE J1171/ISO 8846 ignition protected, RMRS, RRR |
| Charge characteristic | IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion | IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion | IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion | IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion | IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion |
| Charge voltage Bulk | 14.4 V | 14.4 V | 14.4 V | 28.8 V | 28.8 V |
| Charge voltage Absorption | 14.25 V | 14.25 V | 14.25 V | 28.5 V | 28.5 V |
| Absorption time | 4 hours | 4 hours | 4 hours | 4 hours | 4 hours |
| Charge voltage Float (wet batteries) | 13.25 V | 13.25 V | 13.25 V | 26.5 V | 26.5 V |
| Charge voltage Float (Gel/AGM batteries) | 13.8 V | 13.8 V | 13.8 V | 27.6 V | 27.6 V |
| Temperature compensation | yes | yes | yes | yes | yes |
| DC voltage compensation | automatic | automatic | automatic | automatic | automatic |
| Power consumption (DC side) | < 2 mA | < 5 mA | < 5 mA | < 2 mA | < 2.5 mA |
| Full load consumption (230 V AC) | 450 W | 575 W | 825 W | 435 W | 925 W |
| Current Control function | no | yes, through MasterBus | yes, through MasterBus | no | yes, through MasterBus |
| Power factor control | ≥ 0.98 | ≥ 0.98 | ≥ 0.98 | ≥ 0.98 | ≥ 0.98 |
| Temperature range (ambient temp.) | -25 °C to 60 °C, derating < 0 °C and > 40 °C | -25 °C to 60 °C, derating < 0 °C and > 40 °C | -25 °C to 60 °C, derating < 0 °C and > 40 °C | -25 °C to 60 °C, derating < 0 °C and > 40 °C | -25 °C to 60 °C, derating < 0 °C and > 40 °C |
| Cooling | vario fan | vario fan | vario fan | vario fan | vario fan |
| Protection degree | IP23 | IP23 | IP23 | IP23 | IP23 |
| Protections | over temperature, over load, short circuit, high/low battery voltage | over temperature, over load, short circuit, high/low battery voltage | over temperature, over load, short circuit, high/low battery voltage | over temperature, over load, short circuit, high/low battery voltage | over temperature, over load, short circuit, high/low battery voltage |
| MasterBus compatible | yes | yes | yes | yes | yes |
