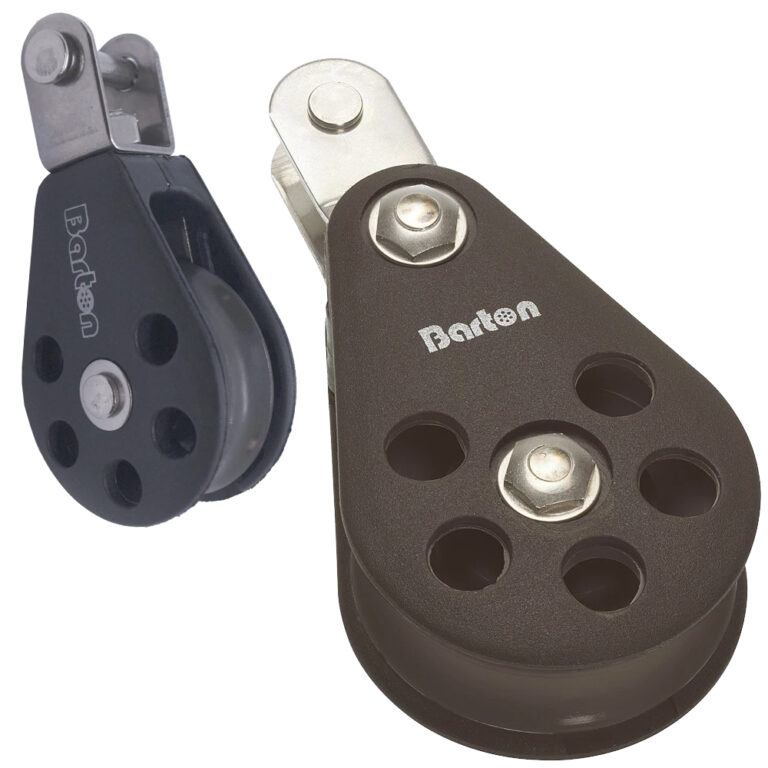

Barton Block Single, Double Tang (Fixed Eye with Clevis Pin)
£9.95 - £47.95
Barton Single, Double Tang Block (Fixed Eye with Clevis Pin)
Scroll to see more dimensions →
| Size 1 | Size 2 | Size 3 | Size 5 | Size 6 | Size 7 | |
| Weight | 48 g | 52 g | 74 g | 160 g | 187 g | 268 g |
| Dimensions | 66 × 32 × 25 mm | 73 × 38 × 24 mm | 87 × 47 × 28 mm | 114 × 58 × 37 mm | 128 × 67 × 36 mm | 145 × 77 × 41 mm |
| Sheave Size | 30mm x 12mm (1 3/16″ x 15/32″) |
35mm x 11mm (1 3/8″ x 15/32″) |
45mm x 13mm (1 3/4″ x 35/64″) |
54mm x 17mm (2 1/8″ x 5/8″) |
64mm x 18mm (2 1/2″ x 45/64″) |
72mm x 20mm (2 53/64″ x 3/4″) |
| Max rope diameter | 8mm (5/16″) | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) | 14mm (9/16″) | 14mm (9/16″) |
| SWL | 355kg (782lbs) | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) | 1000kg (2200lbs) | 1250kg (2750lbs) |
| Break load | 710kg (1565lbs) | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) | 2000kg (4400lbs) | 2500kg (5500lbs) |
| Max rolling load (ball bearing blocks) | 245kg (540lbs) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) | 700kg (1543lbs) | 875kg (1929lbs) |
Part Number
Size / Sheave
Port Solent
Warehouse
99543525
Size 1 / Plain
2
2
99543730
Size 1 / Ball Bearing
0
0
99543945
Size 2 / Plain
1
3
99544225
Size 2 / Ball Bearing
0
0
99544539
Size 3 / Plain
7
0
99544805
Size 3 / Ball Bearing
1
1
99545123
Size 5 / Plain
2
0
99545604
Size 5 / Ball Bearing
0
0
99546038
Size 6 / Plain
2
0
99546359
Size 6 / Ball Bearing
0
0
99546670
Size 7 / Plain
2
1
99546991
Size 7 / Ball Bearing
0
0
