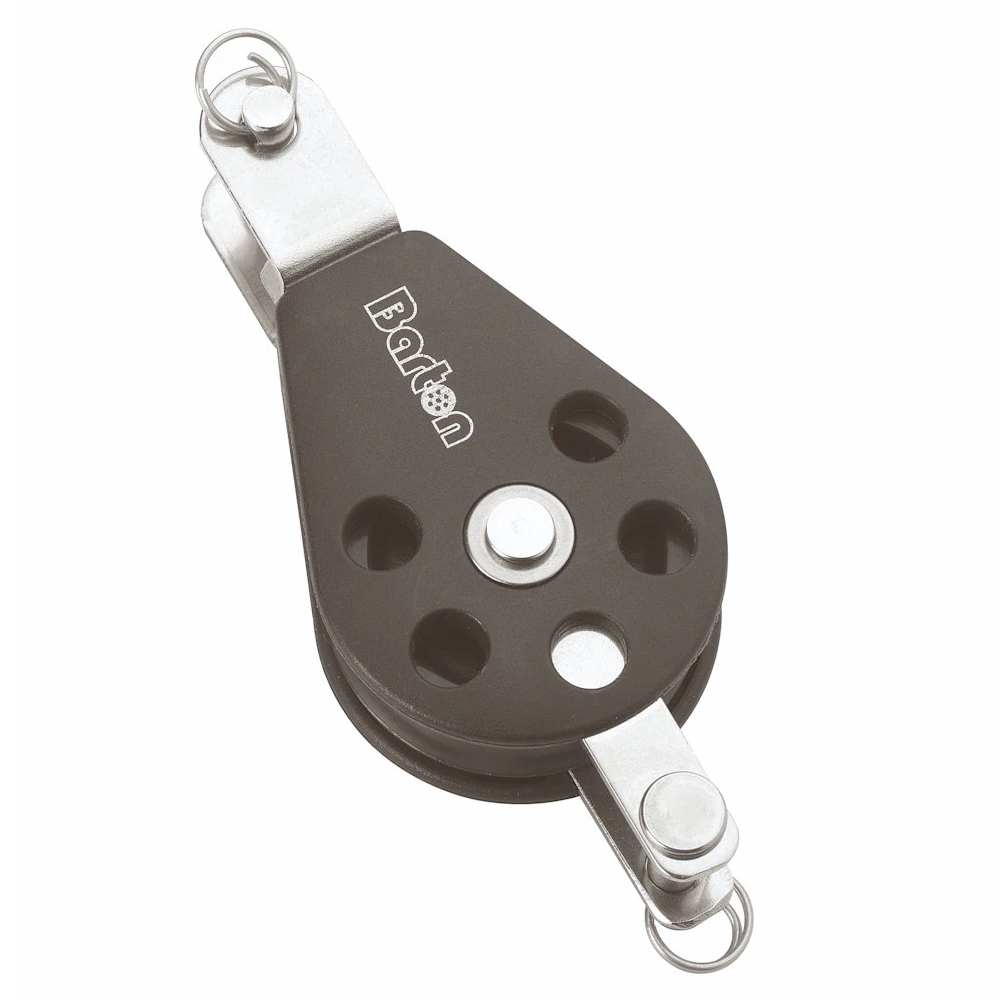

Barton Block Single, Double Tang with Becket (Fixed Eye with Clevis Pin)
£11.95 - £29.95
Barton Single, Double Tang Block with Becket (Fixed Eye with Clevis Pin)
Scroll to see more dimensions →
| Size 1 | Size 2 | Size 3 | Size 5 | |
| Weight | 56 g | 64 g | 86 g | 185 g |
| Dimensions | 81 × 32 × 25 mm | 88 × 38 × 24 mm | 103 × 47 × 28 mm | 137 × 58 × 37 mm |
| Sheave Size | 30mm x 12mm (1 3/16″ x 15/32″) |
35mm x 11mm (1 3/8″ x 15/32″) |
45mm x 13mm (1 3/4″ x 35/64″) |
54mm x 17mm (2 1/8″ x 5/8″) |
| Max rope diameter | 8mm (5/16″) | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) |
| SWL | 355kg (782lbs) | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) |
| Break load | 710kg (1565lbs) | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) |
| Max rolling load (ball bearing blocks) | 245kg (540lbs) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) |
Part Number
Size / Sheave
Port Solent
Warehouse
99543747
Size 1 /
0
0
99544232
Size 2 /
0
0
99544546
Size 3 /
0
0
99545611
Size 5 /
0
0
