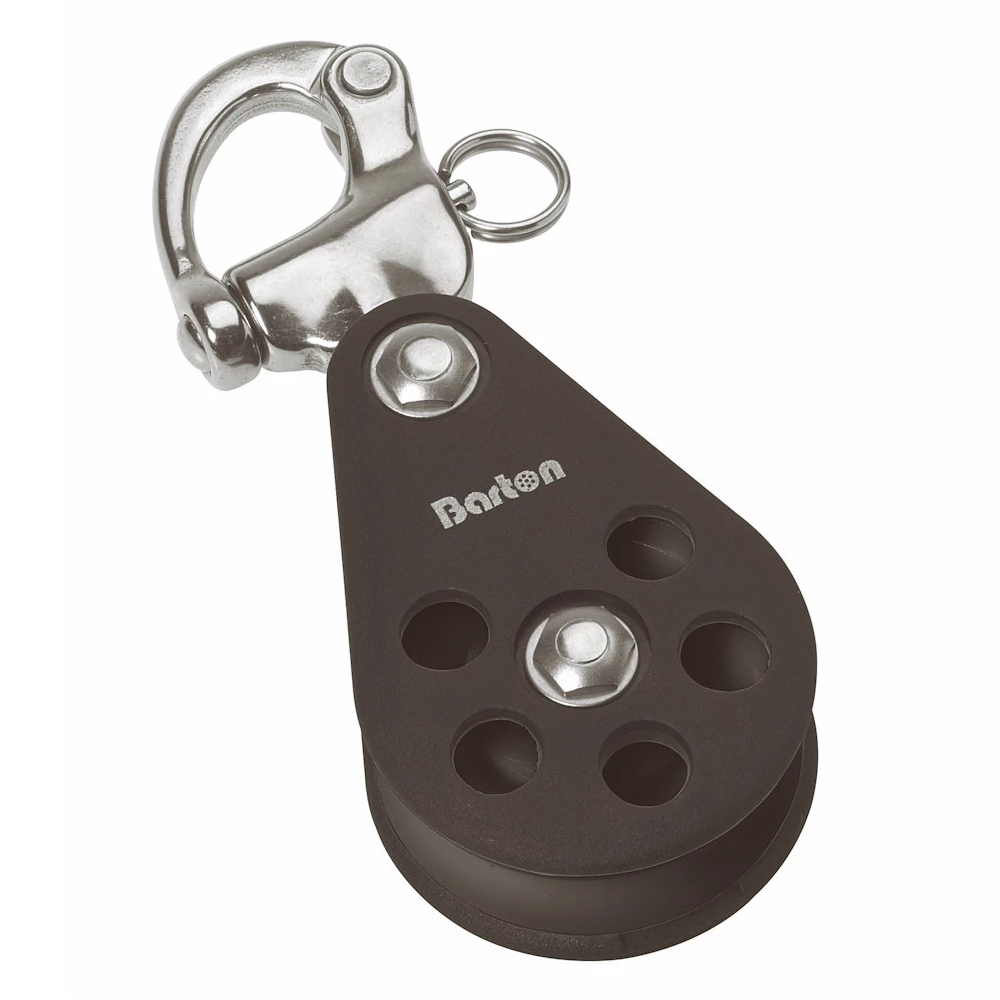

Barton Block Single Snap Shackle

£99.95 - £129.95

Barton Block Single Snap Shackle

Size 5 Size 6 Size 7
Weight 254 g 280 g 356 g
Dimensions 142 × 58 × 37 mm 155 × 67 × 36 mm 170 × 77 × 41 mm
Sheave Size 54mm x 17mm (2 1/8″ x 5/8″) 64mm x 18mm (2 1/2″ x 45/64″) 72mm x 20mm (2 53/64″ x 3/4″)
Max rope diameter 12mm (7/16″) 14mm (9/16″) 14mm (9/16″)
SWL 750kg (1650lbs) 1000kg (2200lbs) 1250kg (2750lbs)
Break load 1500kg (3300lbs) 2000kg (4400lbs) 2500kg (5500lbs)
Max rolling load (ball bearing blocks) 525kg (1157lbs) 700kg (1543lbs) 875kg (1929lbs)
Part Number
Size / Colour
Port Solent
Warehouse
99545208
Size 5 / Plain
2
0
99545680
Size 5 / Ball Bearing
0
0
99546106
Size 6 / Plain
2
0
99546427
Size 6 / Ball Bearing
1
0
99547066
Size 7 / Ball Bearing
0
0
