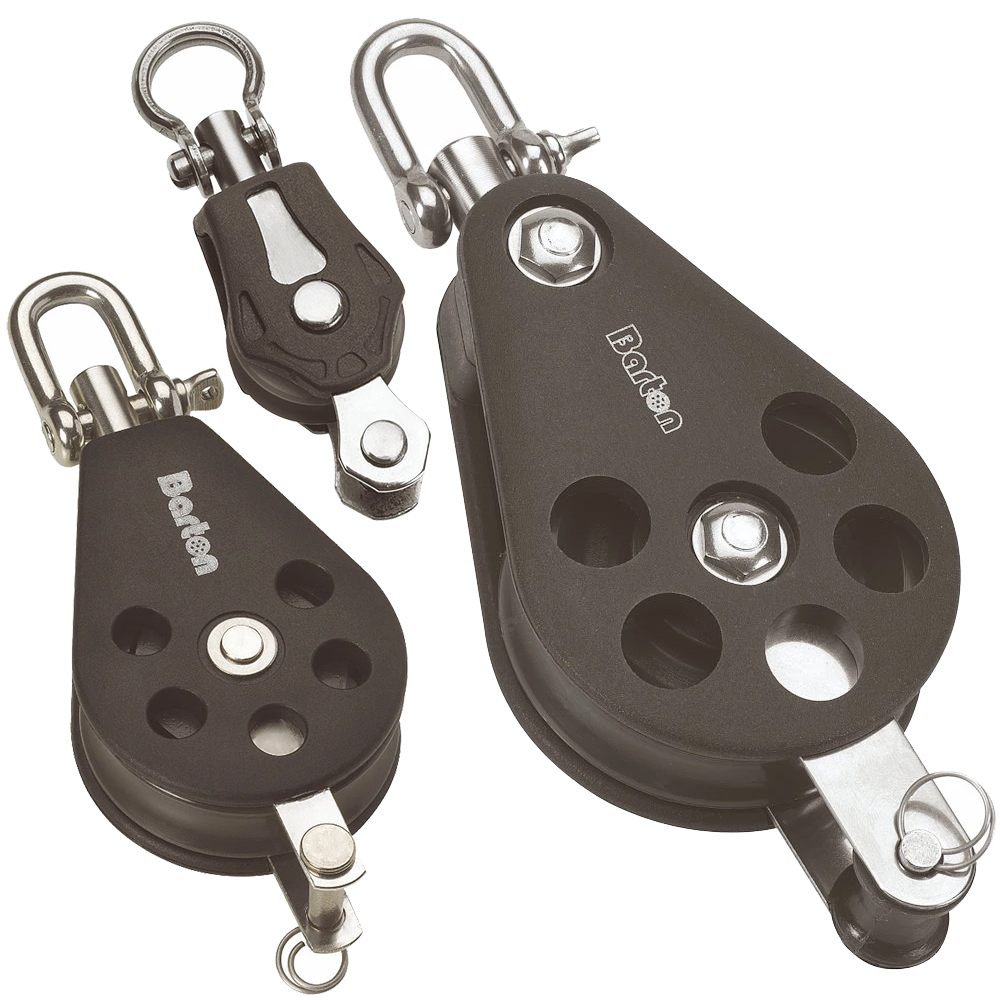

Barton Block Single Swivel Becket
£ 17.95 - £ 92.95
Barton Block Single Swivel Becket
Scroll to see more dimensions →
| Size 0 | Size 1 | Size 2 | Size 3 | Size 5 | Size 6 | Size 7 | |
| Weight | 28 g | 51 g | 60 g | 91 g | 220 g | 250 g | 399 g |
| Dimensions | 69 × 24 × 16 mm | 85 × 32 × 25 mm | 93 × 38 × 24 mm | 114 × 47 × 28 mm | 150 × 58 × 37 mm | 170 × 67 × 36 mm | 195 × 77 × 41 mm |
| Sheave Size | 20mm x 8mm (25/32″ x 5/16″) | 30mm x 12mm (1 3/16″ x 15/32″) | 35mm x 11mm (1 3/8″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 54mm x 17mm (2 1/8″ x 5/8″) | 64mm x 18mm (2 1/2″ x 45/64″) | 72mm x 20mm (2 53/64″ x 3/4″) |
| Max rope diameter | 6mm (1/4″) | 8mm (5/16″) | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) | 14mm (9/16″) | 14mm (9/16″) |
| SWL | 275kg (606lbs) | 355kg (782lbs) | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) | 1000kg (2200lbs) | 1250kg (2750lbs) |
| Break load | 550kg (1210lbs) | 710kg (1565lbs) | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) | 2000kg (4400lbs) | 2500kg (5500lbs) |
| Max rolling load (ball bearing blocks) | 130kg (286lbs) | 245kg (540lbs) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) | 700kg (1543lbs) | 875kg (1929lbs) |
Part Number
Size / Colour
Port Solent
Warehouse
99543198
Size 0 / Plain
2
2
99543570
Size 1 / Plain
2
0
99543785
Size 1 / Ball Bearing
1
0
99543990
Size 2 / Plain
1
1
99544270
Size 2 / Ball Bearing
1
0
99544584
Size 3 / Plain
3
10
99544850
Size 3 / Ball Bearing
1
0
99545192
Size 5 / Plain
1
1
99545673
Size 5 / Ball Bearing
2
0
99546090
Size 6 / Plain
0
0
99546410
Size 6 / Ball Bearing
0
0
99546731
Size 7 / Plain
1
0
99547059
Size 7 / Ball Bearing
1
0
