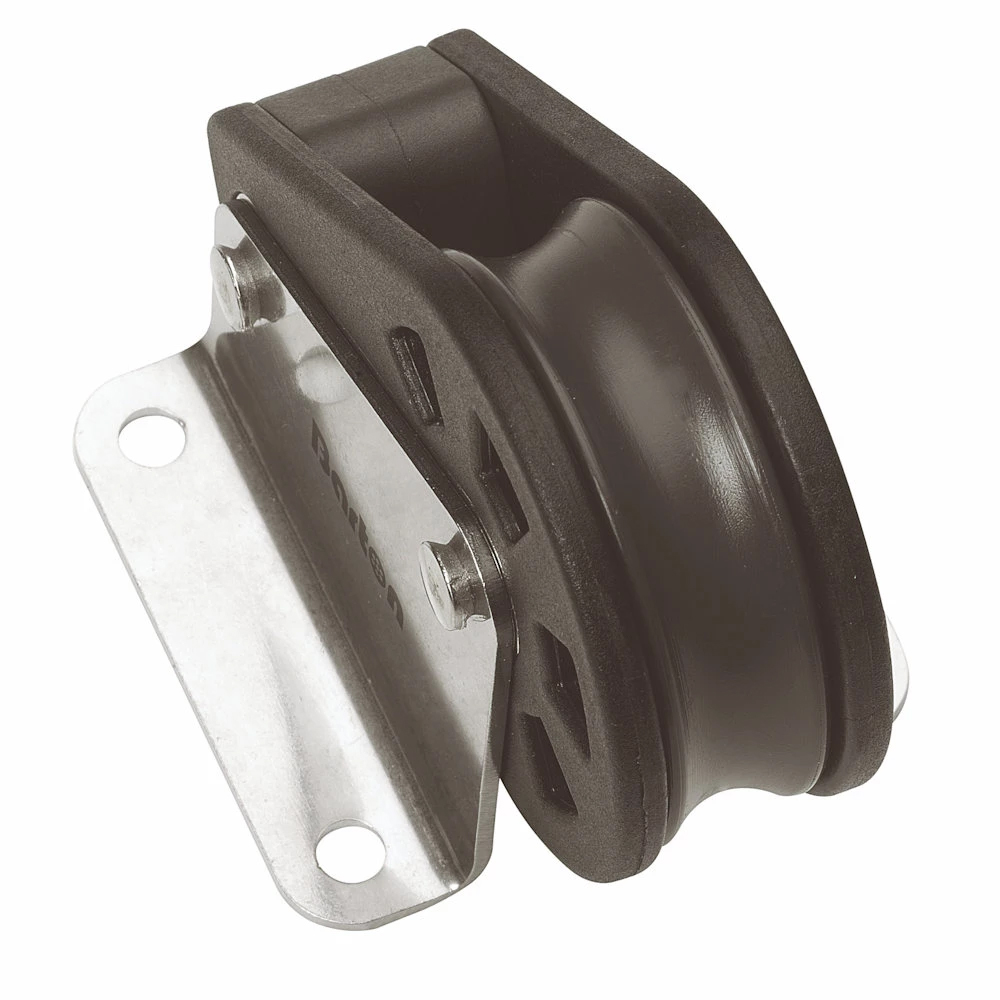

Barton Block Single Upright
£18.95 - £36.95
Barton Block Single Upright
| Size 1 | Size 3 | Size 4 | |
| Weight | 63 g | 120 g | 214 g |
| Dimensions | 52 × 47 × 44 mm | 73 × 52 × 61 mm | 91 × 58 × 78 mm |
| Sheave Size | 30mm x 12mm (1 3/16″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 58mm x 17mm (2 5/16″ x 5/8″) |
| Max rope diameter | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) |
| SWL | 355kg (782lbs) | 400kg (881lbs) | 750kg (1650lbs) |
| Break load | 710kg (1565lbs) | 800kg (1763lbs) | 1500kg (3300lbs) |
| Max rolling load (ball bearing blocks) | 245kg (540lbs) | 270kg (595lbs) | 525kg (1157lbs) |
