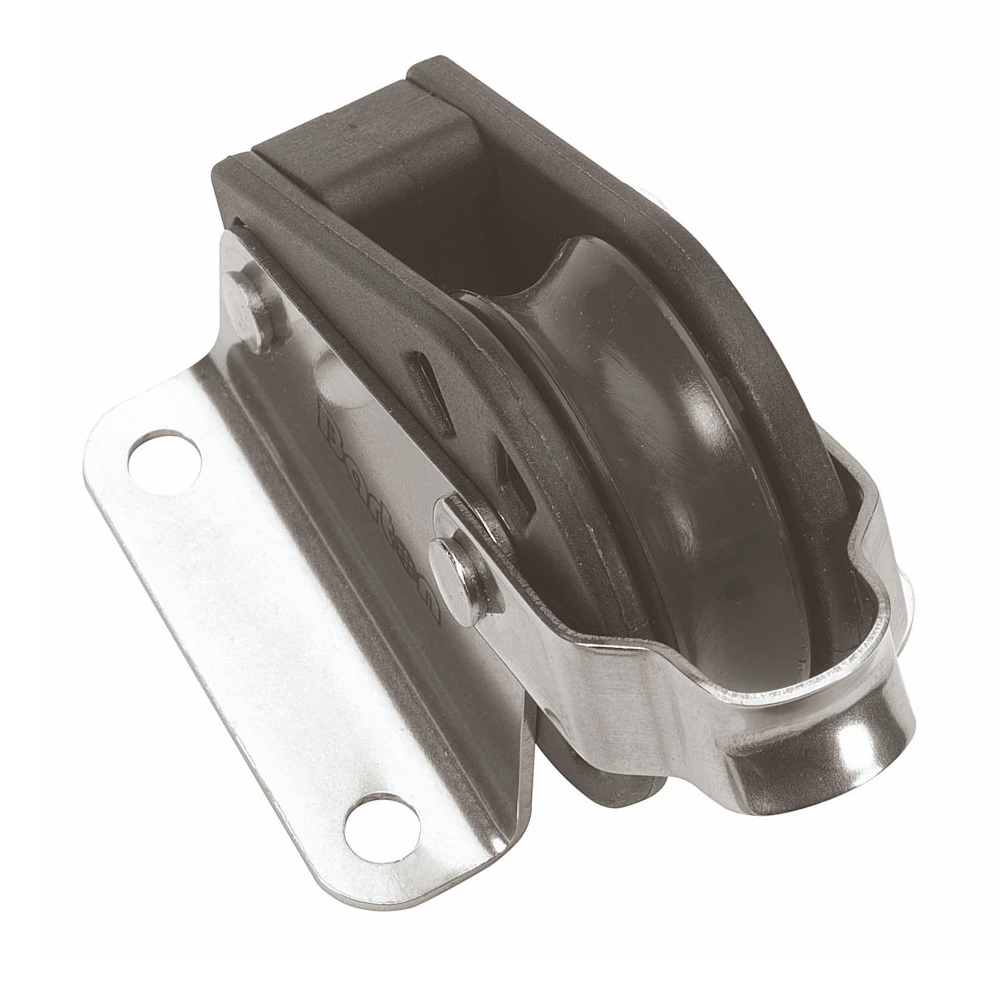

Barton Block Single Upright with Fairlead
£ 17.96 - £ 35.96
Barton Block Single Upright with Fairlead
| Size 1 | Size 3 | Size 4 | |
| Weight | 70 g | 129 g | 234 g |
| Dimensions | 65 × 47 × 44 mm | 93 × 52 × 61 mm | 109 × 58 × 78 mm |
| Sheave Size | 30mm x 12mm (1 3/16″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 58mm x 17mm (2 5/16″ x 5/8″) |
| Max rope diameter | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) |
| SWL | 355kg (782lbs) | 400kg (881lbs) | 750kg (1650lbs) |
| Break load | 710kg (1565lbs) | 800kg (1763lbs) | 1500kg (3300lbs) |
| Max rolling load (ball bearing blocks) | 245kg (540lbs) | 270kg (595lbs) | 525kg (1157lbs) |
Part Number
Size / Colour
Port Solent
Warehouse
99543594
Size 1 / Plain
1
1
99543808
Size 1 / Ball Bearing
0
0
99544607
Size 3 / Plain
0
0
99544874
Size 3 / Ball Bearing
0
0
99545093
Size 4 / Plain
0
0
99545574
Size 4 / Ball Bearing
0
0
