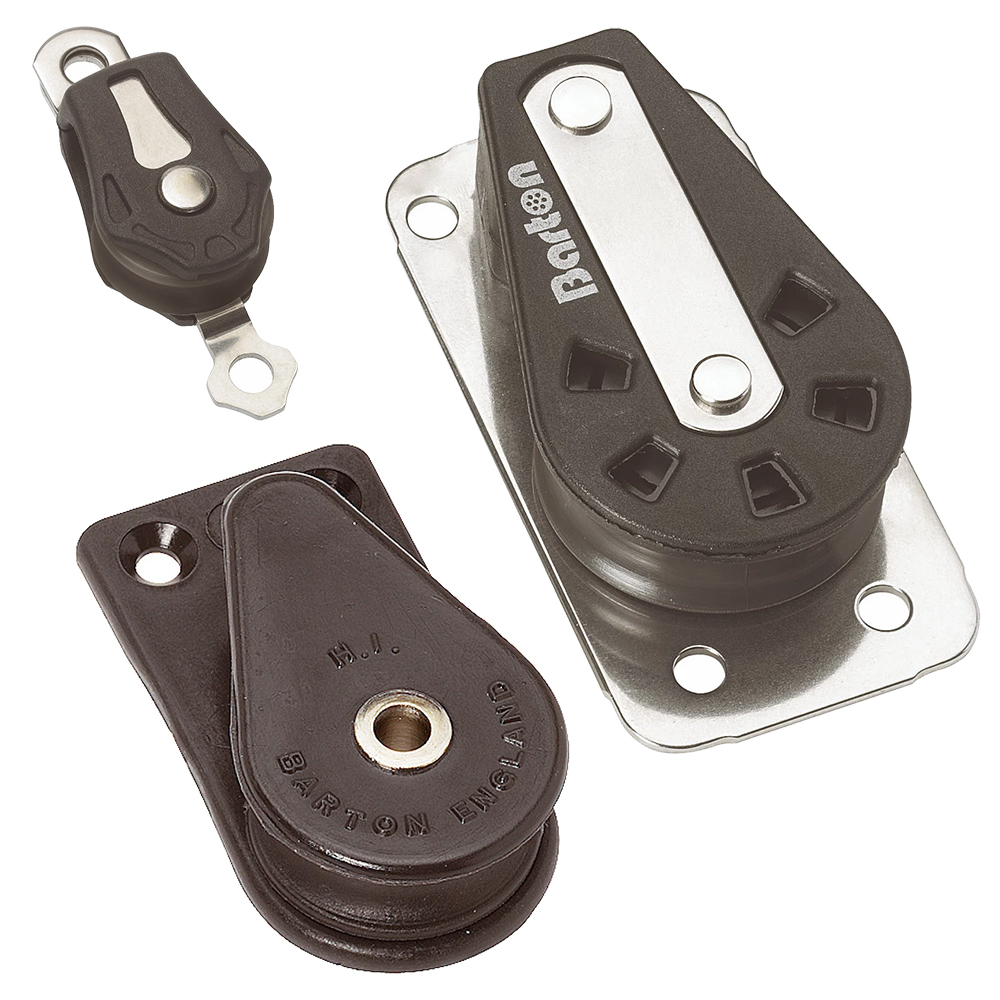

Barton Single Cheek Block
£7.95 - £34.95
Barton Single Cheek Block
Scroll to see more dimensions →

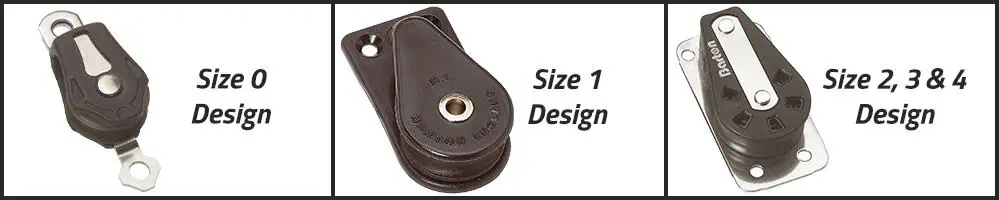

| Size 0 | Size 1 | Size 2 | Size 3 | Size 4 | |
| Weight | 17 g | 21 g | 73 g | 106 g | 192 g |
| Dimensions | 55 × 21 × 16 mm | 56 × 30 × 18 mm | 80 × 44 × 21 mm | 93 × 53 × 23 mm | 107 × 68 × 28 mm |
| Sheave Size | 20mm x 8mm (25/32″ x 5/16″) | 30mm x 12mm (1 3/16″ x 15/32″) | 35mm x 11mm (1 3/8″ x 15/32″) | 45mm x 13mm (1 3/4″ x 35/64″) | 58mm x 17mm (2 5/16″ x 5/8″) |
| Max rope diameter | 6mm (1/4″) | 8mm (5/16″) | 8mm (5/16″) | 10mm (3/8″) | 12mm (7/16″) |
| SWL | 275kg (606lbs) | 355kg (782lbs) | 370kg (815lbs) | 400kg (881lbs) | 750kg (1650lbs) |
| Break load | 550kg (1210lbs) | 710kg (1565lbs) | 740kg (1630lbs) | 800kg (1763lbs) | 1500kg (3300lbs) |
| Max rolling load (ball bearing blocks) | 130kg (286lbs) | 245kg (540lbs) | 260kg (573lbs) | 270kg (595lbs) | 525kg (1157lbs) |
Part Number
Size / Colour
Port Solent
Warehouse
99543204
Size 0 / Plain
3
2
99562335
Size 1 / Plain
4
2
99543815
Size 1 / Ball Bearing
3
2
99544003
Size 2 / Plain
0
0
99544287
Size 2 / Ball Bearing
3
0
99544614
Size 3 / Plain
2
4
99544881
Size 3 / Ball Bearing
6
0
99545109
Size 4 / Plain
2
2
99545581
Size 4 / Ball Bearing
1
0
