Harken Element Blocks

£ 41.95 - £ 139.95

Clear

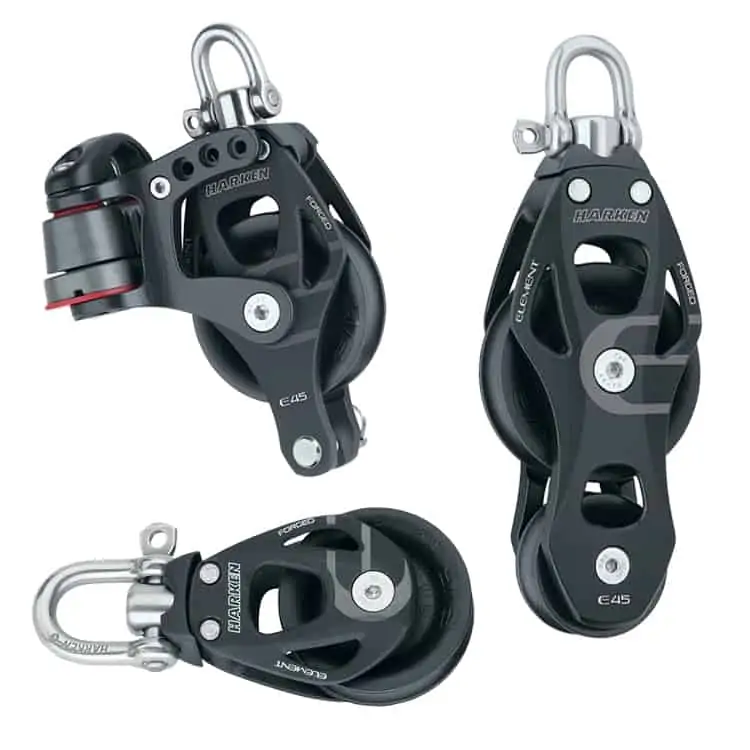

Harken Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than Harken’s previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

    Sheave Diameter Length Weight Shackle Pin Max Line Max Working Load Breaking Load

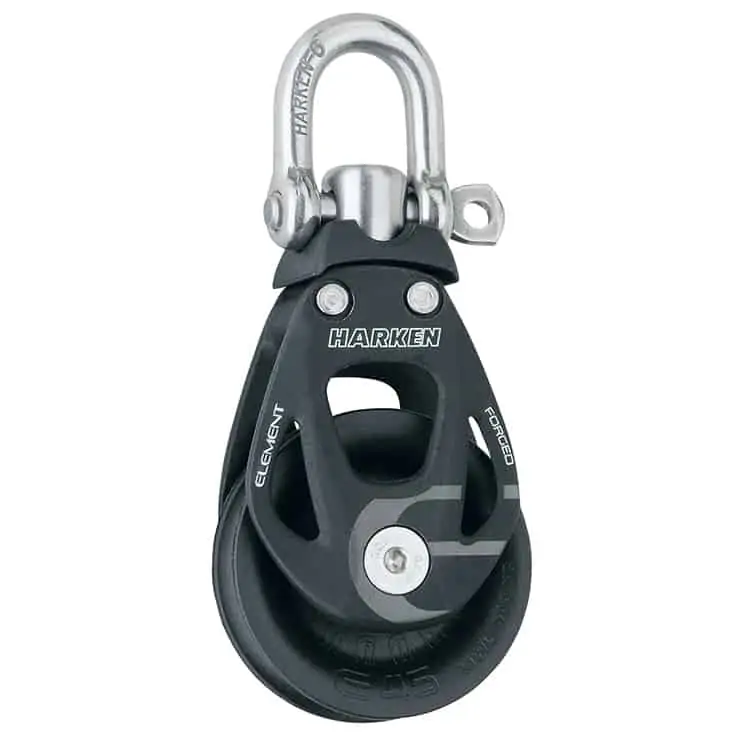

6230 Single 45mm 102mm 103g 6mm 12mm 700kg 1400kg

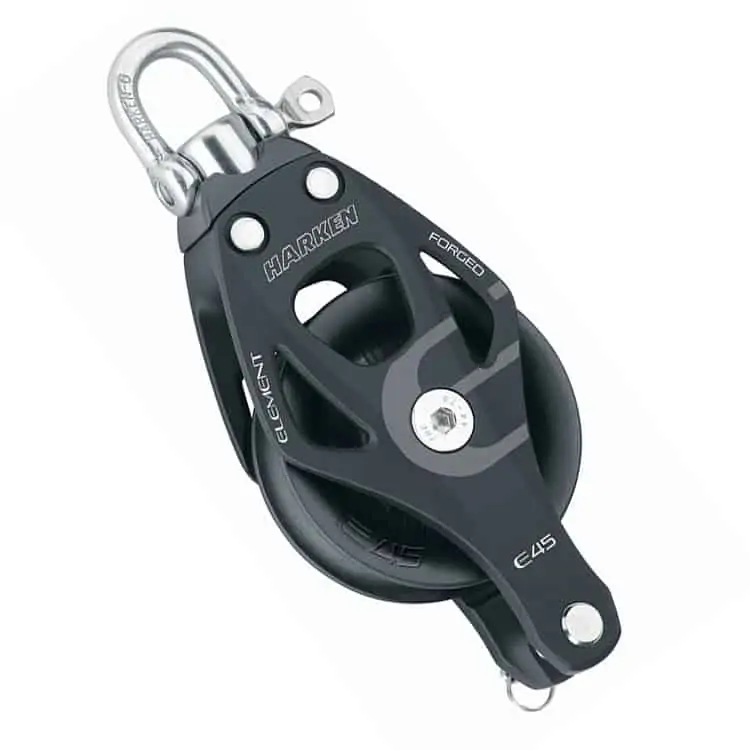

6231 Single Becket 45mm 121mm 115g 6mm 12mm 700kg 1400kg

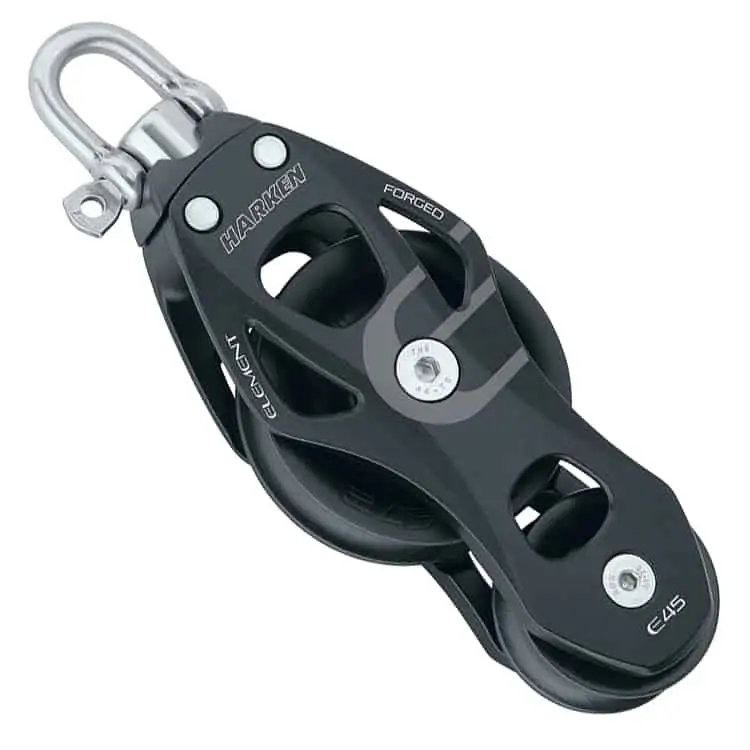

6232 Fiddle 45mm 130mm 126g 6mm 8mm 700kg 1400kg

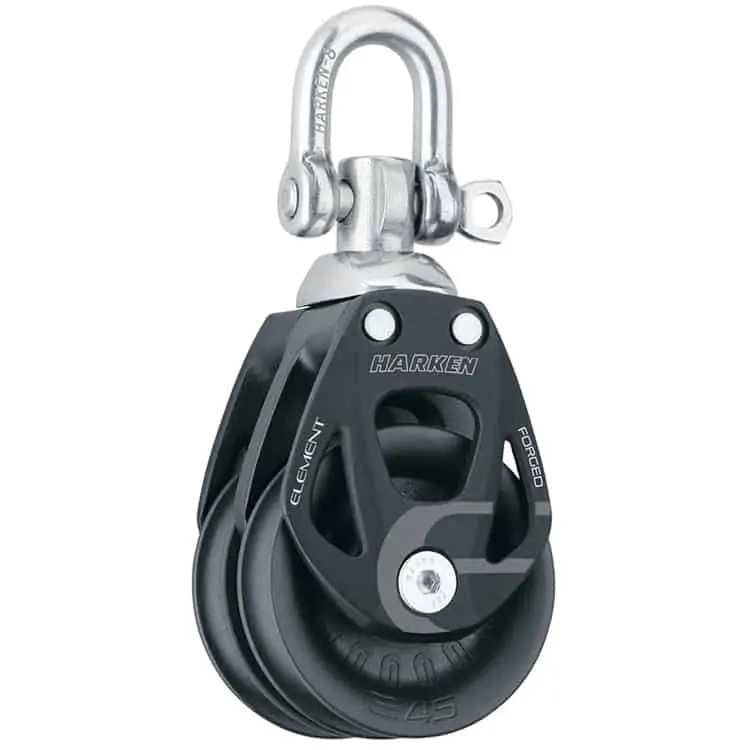

6238 Double 45mm 108mm 180g 6mm 12mm 875kg 1750kg

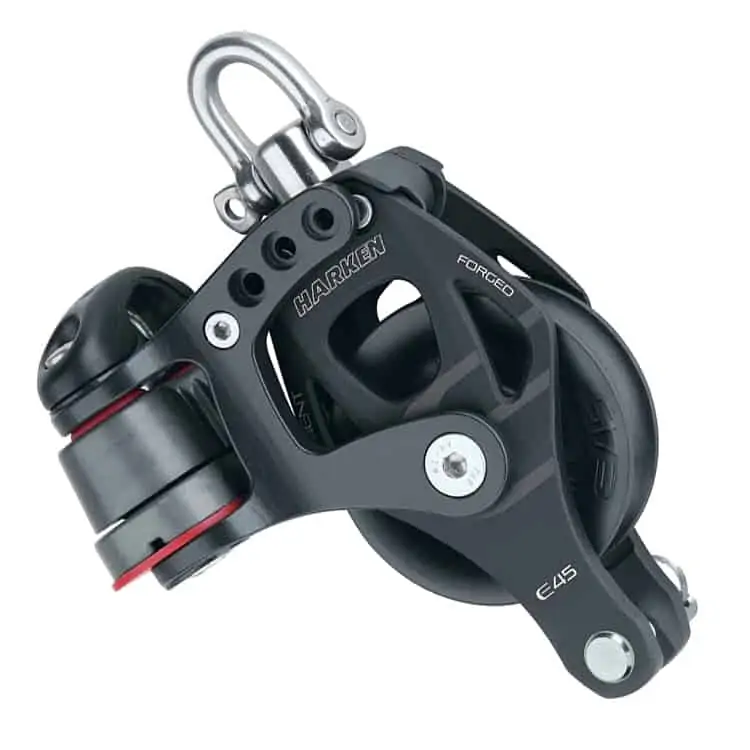

6236 Single Cam Becket 45mm 121mm 230m 6mm 12mm 272kg 544kg
6260 Single 60mm 121mm 175g 6mm 14mm 1100kg 2200kg
6261 Single Becket 60mm 146mm 200g 6mm 14mm 1100kg 2200kg
6262 Fiddle 60mm 165mm 240g 6mm 10mm 1100kg 2200kg
6269 Double 60mm 146mm 355g 8mm 14mm 1375kg 2750kg
6264 Fiddle Cam Becket 60mm 181mm 370g 6mm 10mm 550kg 1100kg
Part Number
Size / Colour
Port Solent
Warehouse
99554538
45mm / Single Swivel
1
1
99554552
45mm / Single Becket
2
0
99554569
45mm / Fiddle
1
0
99554576
45mm / Double
2
0
99557461
45mm / Single Cam Becket
1
1
99554583
60mm / Single Swivel
1
1
99556228
60mm / Single Becket
0
0
99556235
60mm / Fiddle
1
0
99554613
60mm / Double
1
0
99554606
60mm / Fiddle Cam Becket
1
8
99559663
80mm / Single Swivel
1
0
