Use cam swivel bases when leads must rotate to face the trimmer.

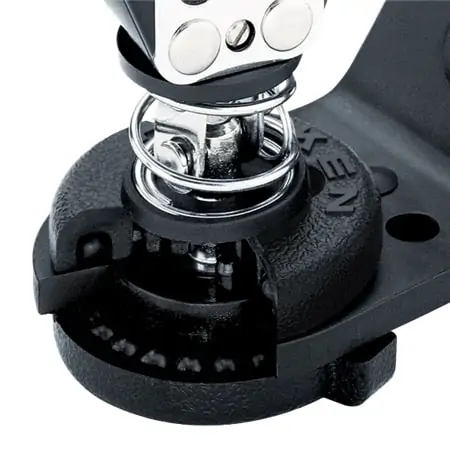

Ball bearing swivel bases feature dual rows of Delrin ball bearings that swivel freely even under high loads. Bases include stand-up springs and a U-Adaptor to accept a variety of appropriate blocks.

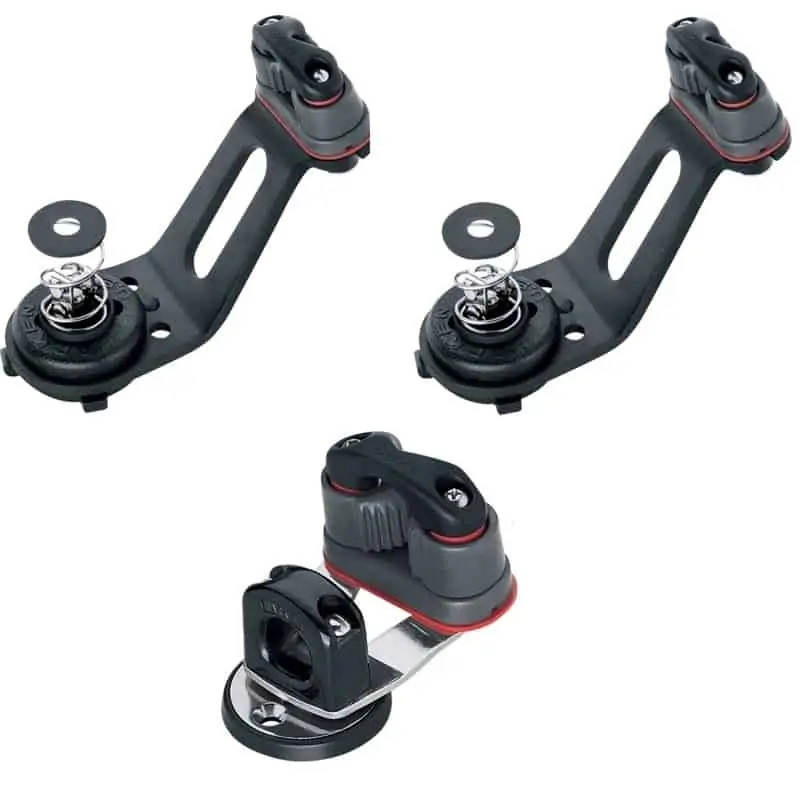

The standard swivel cam base is the standard configuration with a tall arm. It is ideal for mounting in the cockpit or for use on larger keelboats and small offshore boats that use 76 mm (3.00 in) plastic blocks. The low-profile version is used when installation is at deck level and when smaller blocks are used.
The bullseye is a simple swivel base for main and jib sheets on very small boats or for control lines on boats of all sizes.
Part | Height | | | Weight | | | Minimum Line ∅ | | | Maximum Line ∅ | | | Fastener Spacing | | | Fasteners | | | Maximum Working Load | |
Standard | 146mm | 369g | 3mm | 12mm | 19mm | 5mm FH | N/A | |||||||
Low Profile | 114mm | 340g | 3mm | 12mm | 19mm | 5mm FH | N/A | |||||||
Bullseye | 49mm | 213g | 3mm | 12mm | 26mm | 5mm FH | 136kg |
