Features:
- Glass fibre reinforced sheave with Polymer bushing
- Optimised 6/8 shackle with Ø6 body for good compatibility and Ø8 pin for high bending resistance
- Stainless steel strap for best strength and longer service life
- Stiff glass fibre reinforced cheeks to prevent lines from wedging
- Glass fibre reinforced composite
- Sliding swivel locking mechanism

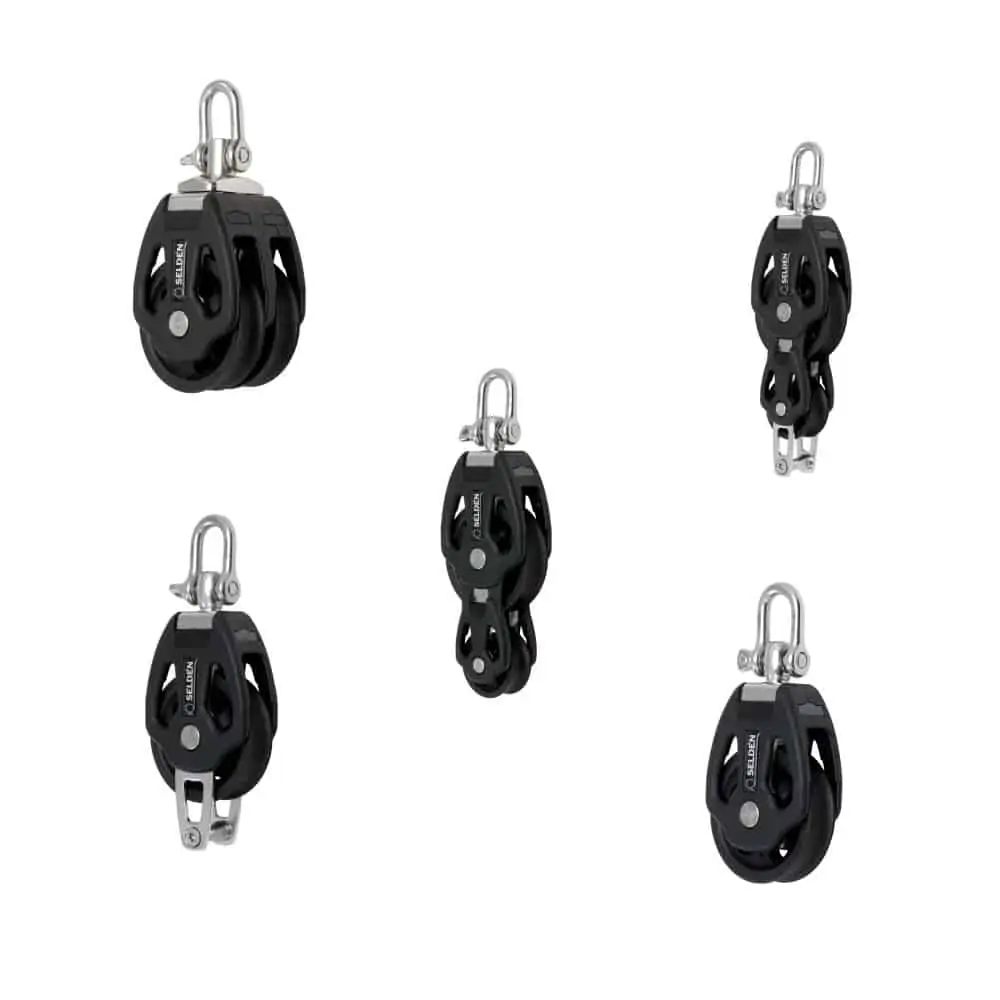

Part | Weight | | | Safe Working Load | | | Breaking Load | | | Max Line Size | | | Pin ∅ | | | Shackle ∅ | |
Single | 264g | 1500kg | 3000kg | 14mm | 8mm | 6mm | ||||||
Single/Becket | 292g | 1500kg | 3000kg | 14mm | 8mm | 6mm | ||||||
Double | 518g | 1500kg | 3000kg | 14mm | 8mm | 6mm | ||||||
Fiddle | 418g | 1500kg | 3000kg | 14mm | 8mm | 6mm | ||||||
Fiddle/Becket | 395g | 1500kg | 3000kg | 14mm | 8mm | 6mm |
