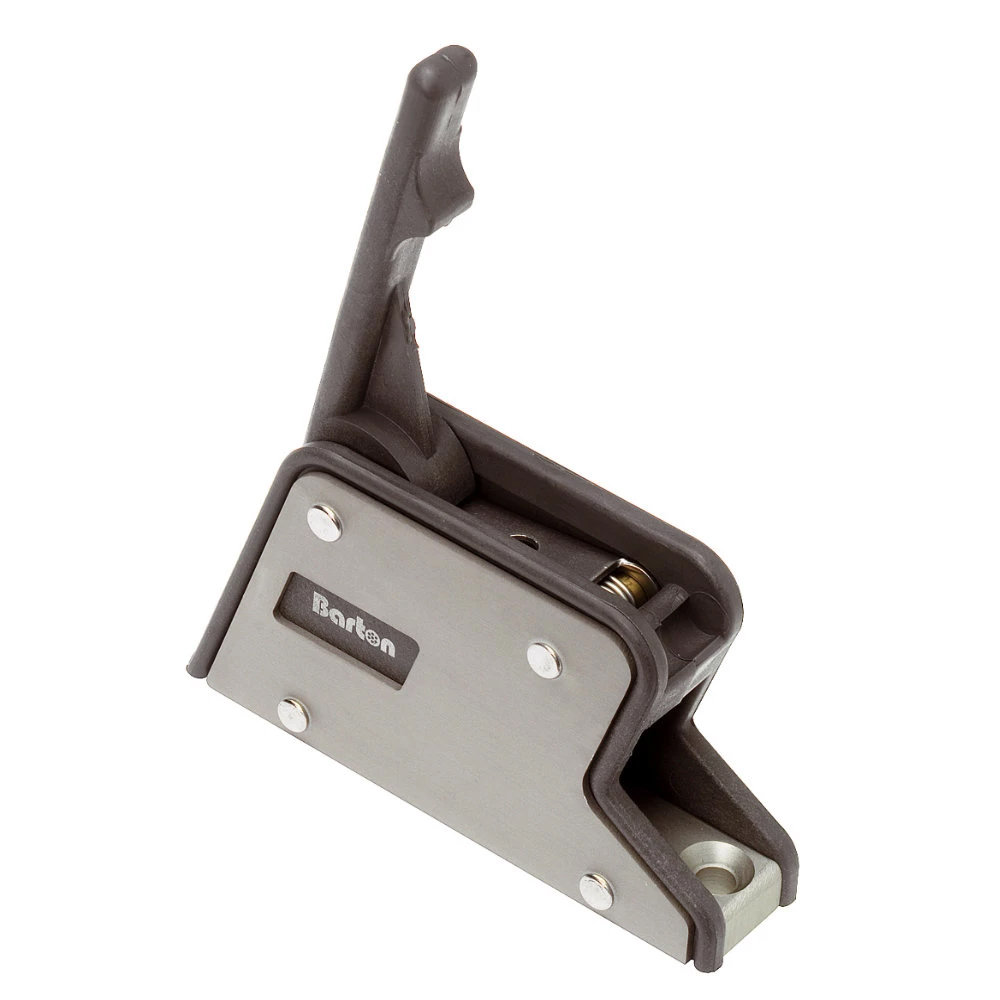

Barton Single Rope Clutch

Manufactured from high grade plastics and aluminium with grey anodised finish.
Lines can be drawn through the clutch in the locked position as the line moves freely in the direction of pull and is restricted from returning by a spring loaded cam mechanism.
This compact range is suitable for securing halyards and control lines on yachts up to approx 30ft – or for lighter duties on large craft

Weight: 242 g
Dimensions: 118 × 30 × 64 mm
SWL: 350kg (771lbs)
Max rope diameter: 10mm (25/64″)
Fastenings: 6mm
Hole centres: 88mm
