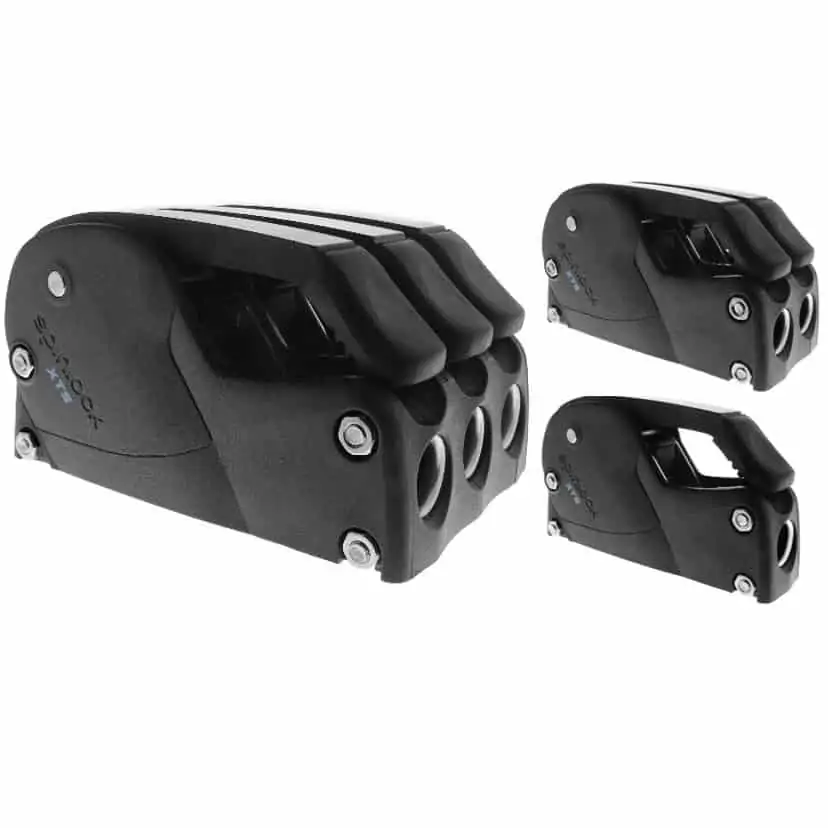

Spinlock XTS Rope Clutch
£89.95 - £239.95
Specified as standard on production yachts worldwide and the choice of racing yachts, ideal for inshore and offshore.
Key Features
- Mid to higher load rope holding
- Reliable all around performance
- Choose XTS0610 for best performance on smaller diameter lines
- Choose XTS0814 for best performance across the rope range
- Ceramic Coated CAM and Base available for consistent holding & performance with modern performance lines
- Extruded alloy handle with soft end grip
- Secure handle locking in open and closed position
- Easy access to fasteners
- Handle labels supplied
Take a closer look at the Spinlock XTS Clutch in this servicing video guide.
| Model | Line Dia | Max SWL at max line diameter | Weight | Fasteners Required |
| XTS0814/1 | 8-14mm (5/16-9/16”) | 1000kg (2200Ibs) | 510g (18.2oz) | 2 X M8 CSK (2 X 5/16” CSK) |
| XTS0814/2 | 8-14mm (5/16-9/16”) | 1000kg (2200Ibs) | 980g (35.0oz) | 4 X M8 CSK (4 X 5/16” CSK) |
| XTS0814/3 | 8-14mm (5/16-9/16”) | 1000kg (2200Ibs) | 1470g (52.5oz) | 6 X M8 CSK (6 X 5/16” CSK) |
| XTS0610/1 | 6-10mm (1/4-3/8”) | 700kg (1543Ibs) | 510g (18.2oz) | 2 X M8 CSK (2 X 5/16” CSK) |
| XTS0610/2 | 6-10mm (1/4-3/8”) | 700kg (1543Ibs) | 980g (35.0oz) | 4 X M8 CSK (4 X 5/16” CSK) |
| XTS0610/3 | 6-10mm (1/4-3/8”) | 700kg (1543Ibs) | 1470g (52.5oz) | 6 X M8 CSK (6 X 5/16” CSK) |
Part Number
Size / Rope Width
Port Solent
Warehouse
99328603
Single / 6-10mm
4
2
XTS0814/1
Single / 8-14mm
3
8
XTS0814/2
Double / 8-14mm
2
5
XTS0814/3
Triple / 8-14mm
2
8
