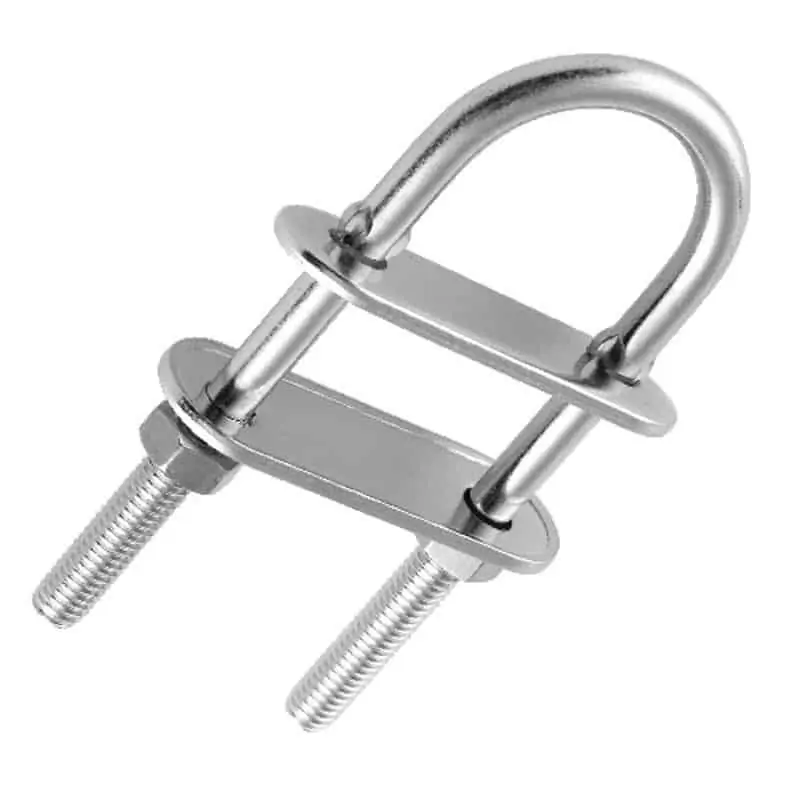

Proboat U Bolt Stainless Steel
£6.95 - £27.95
Proboat U Bolt Stainless Steel
(AISI 316)

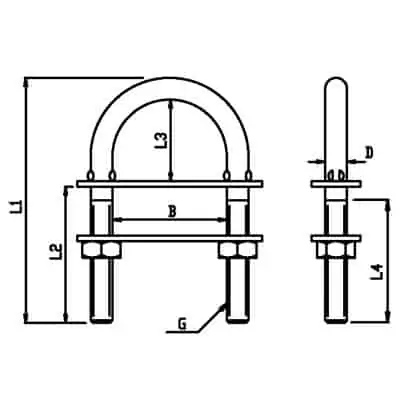

| Part | G | L1 | L2 | L3 | L4 | B | D | Break |
| mm | mm | mm | mm | mm | mm | Load Kg. | ||
| M4 X 35MM | M4 | 66 | 35 | 25 | 30 | 26 | 4 | 750 |
| M5 X 35MM | M5 | 67 | 35 | 25 | 30 | 25 | 4.4 | 900 |
| M6 X 35MM | M6 | 67 | 35 | 26 | 30 | 27 | 5.3 | 1250 |
| M6 X 50MM | M6 | 84 | 50 | 26 | 30 | 27 | 5.3 | 1250 |
| M8 X 50MM | M8 | 86 | 50 | 26 | 30 | 25 | 7.1 | 1750 |
| M8 X 80MM | M8 | 116 | 80 | 26 | 45 | 25 | 7.1 | 1750 |
| M10 X 100MM | M10 | 150 | 100 | 40 | 85 | 30 | 10 | 3500 |
| M10 X 60MM | M10 | 110 | 60 | 40 | 35 | 30 | 10 | 3500 |
| M12 X 80MM | M12 | 122 | 80 | 30 | 85 | 35 | 10.8 | 5100 |
Part Number
Size
Port Solent
Warehouse
11179
M4 X 35MM
2
6
05524
M5 X 35MM
1
0
11180
M6 X 35MM
4
3
BW-340650
M6 X 50MM
3
0
11181
M8 X 50MM
3
17
BW-340880
M8 X 80MM
2
3
BW-341060
M10 X 60MM
2
4
02859
M10 X 100MM
2
1
04742
M12 X 80MM
1
3
