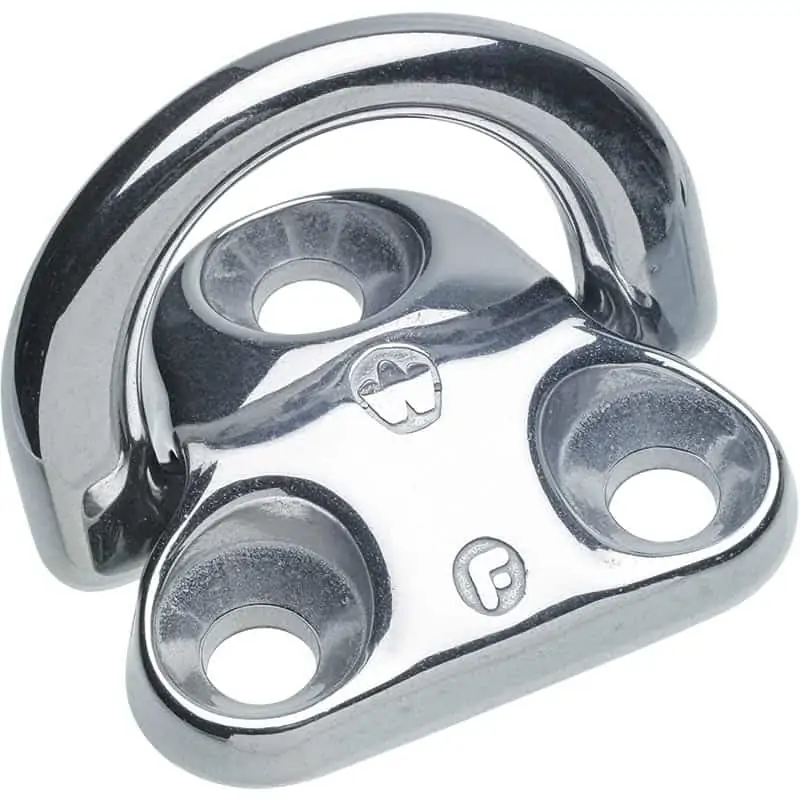

Wichard Single Folding Pad Eyes
£ 34.95 - £ 64.95
The forging manufacturing process and material chosen give an outstanding mechanical resistance. They are 100% safe, highly resistant to corrosion and their design is suitable for all types of boats. The silicon pad delivered as standard protects the deck and reduces noise and vibrations.
Features
- Perfect solution for fastening applications (stay, blocks, jib tack point, lifeline etc…)
- Fully dropforged product with outstanding working and breaking loads regardless the angle of the load
- Modern and optimized design to suit aesthetics of modern boats
- They can be fold down to minimize the risk of injuries
- The silicon pad eliminates moise and unpleasant vibrations
- Modern design
- ISO 15085 Compliant
Applications
For any fastening/attachment application: shroud, stay, blocks, lifeline, jib tack point etc…)
Material
Grade 316L stainless steel
Specifications
| ØD (mm) | A (mm) | B (mm) | C (mm) | Ød (mm) |
| 6 | 45 | 27 | 15 | 6 |
| 8 | 57 | 35 | 18 | 8 |
| D (mm) | E (mm) | F (mm) | Work Load kg. | Break Load Kg. |
| 44 | 41 | 27 | 1440 | 3000 |
| 59 | 51 | 35 | 2400 | 5000 |
Part Number
Size
Port Solent
Warehouse
99469597
6mm
2
13
00311
8mm
3
42
99506414
10mm
2
0
