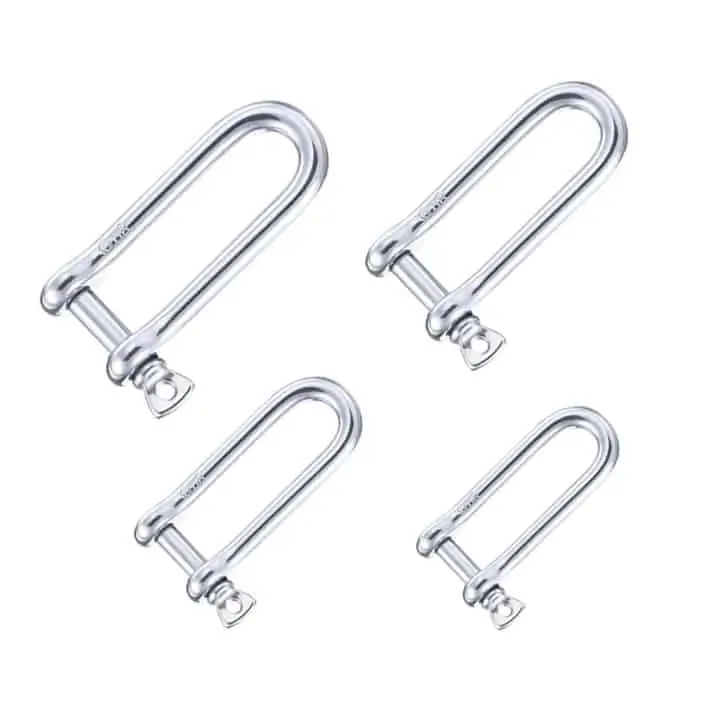

Wichard Long D Shackle
£ 9.95 - £ 27.95
Forged CE stainless steel captive pin long D shackle.
Not only are these self-locking, the pin is also connected to the body at all times, even when fully opened. Consequently, there is no more risk of seeing it fall in the water, which would make the shackle unusable. These shackles can therefore be fitted completely safety using just one hand.
Hot dropped forged from a single piece of stainless steel, adding strength and consistency of manufacture for total security and reliability. The technical characteristics of every Shackle is closely controlled and tested before, during and after the manufacturing process.
Manufactured from AISI 316 stainless offering excellent corrosion resistance, especially in marine environments.
Features
- Working Load Limit (WLL) = 5:1 safety factor of the break load,
- CE marked in accordance with the Machines Directive 2006/42
- Product origin,
- Manufacturer’s logo.
Specifications
| Pin Ø (mm) | L (mm) | A (mm) | B (mm) | Pin Thread Ø mm | D (mm) |
| 4 | 41 | 31 | 8 | 5 | 9 |
| 6 | 63 | 46 | 12 | 7 | 14 |
| 8 | 82 | 62 | 16 | 9 | 17 |
Pin Ø: 4mm
Working Load (kg): 320
Break Load (kg): 1000
Weight (kg): 0.012
Pin Ø: 6mm
Working Load (kg): 680
Break Load (kg): 2200
Weight (kg): 0.040
Pin Ø: 8mm
Working Load (kg): 1000
Break Load (kg): 3600
Weight (kg): 0.092
