Barton Wincher

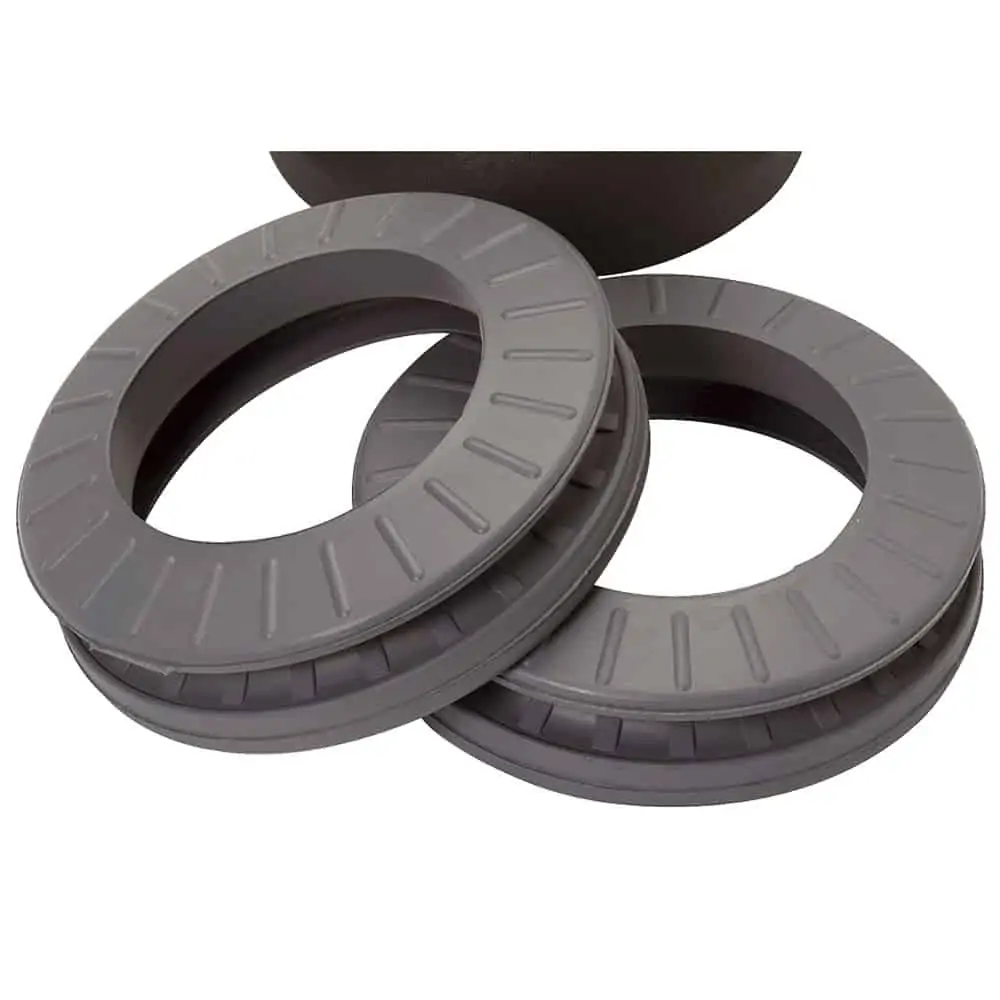

The Barton ‘Wincher’ is a specially designed rubber moulding which fits over the top of standard winches, converting them to self- tailing.

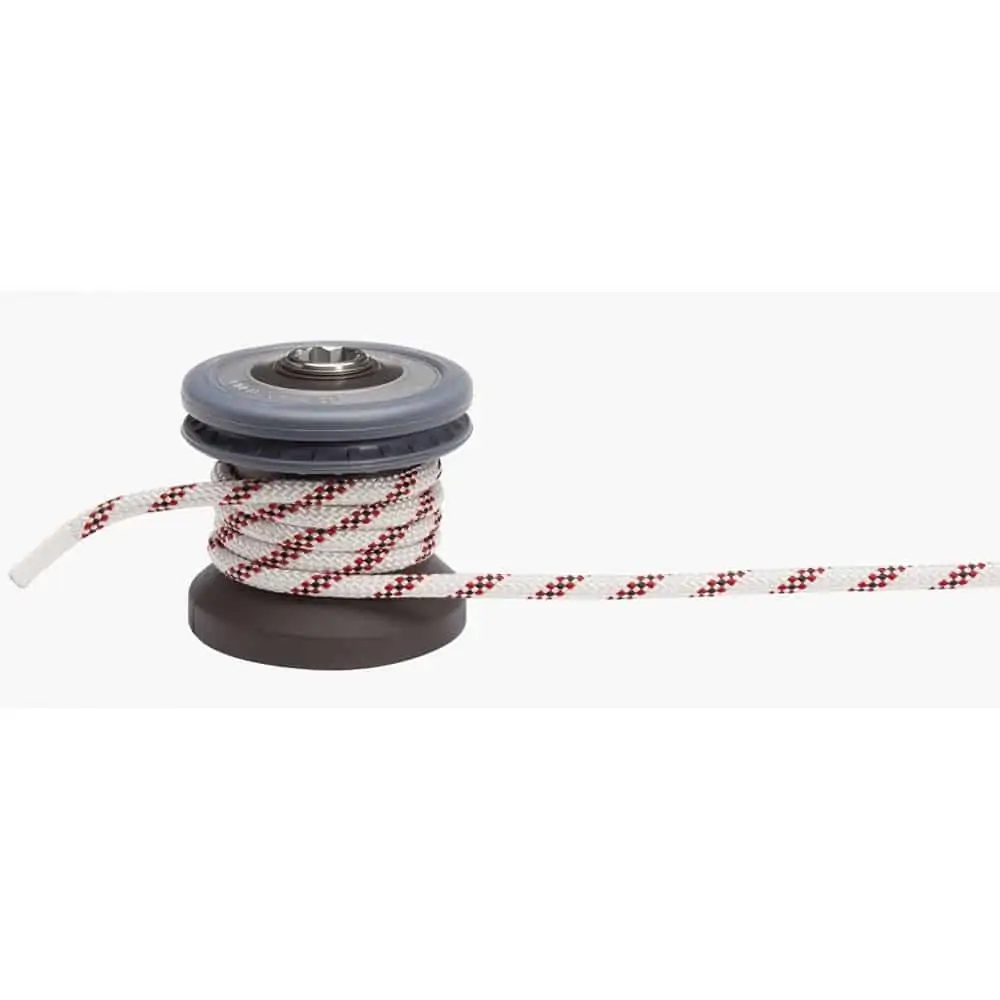

This simple operation works when the line is sheeted under load, which means the coils climb up the winch drum and then become gripped by the underside of the Wincher’s rubber body.

Cleating is acheived by locking the sheet into the Wincher’s ribbed central groove.

Barton’s ‘Wincher’ is easy to fit and available in four sizes to suit a wide range of popular winches. Full fitting instructions are included Comes in a pair.

Wincher small (pair)
Max drum dia. 64-70mm
Max rope dia. 8-10mm
Weight: 202

Wincher medium (pair)
Max drum dia. 70-80mm
Max rope dia. 10-14mm
Weight: 223

Wincher large (pair)
Max drum dia. 80-90mm
Max rope dia. 12-14mm
Weight: 278

Wincher ex large (pair)
Max drum dia. 90-100mm
Max rope dia. 12-16mm
Weight: 387
