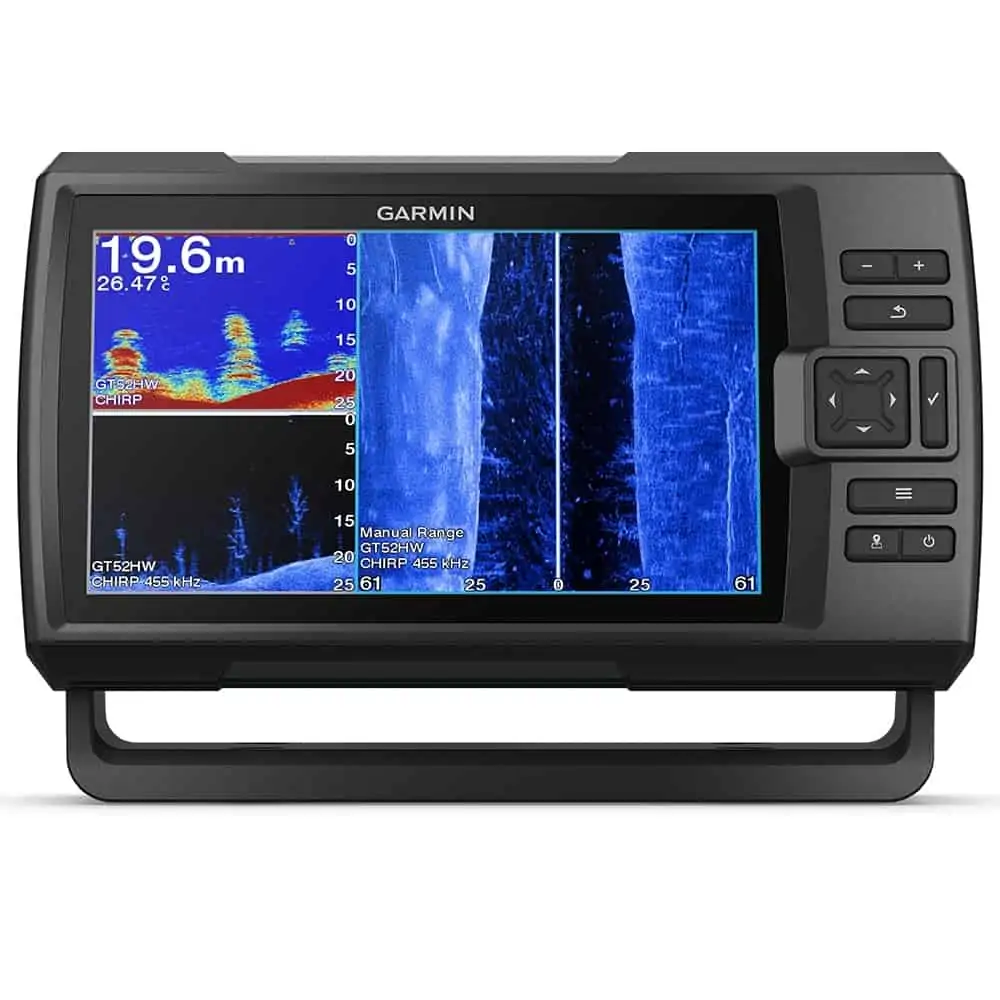

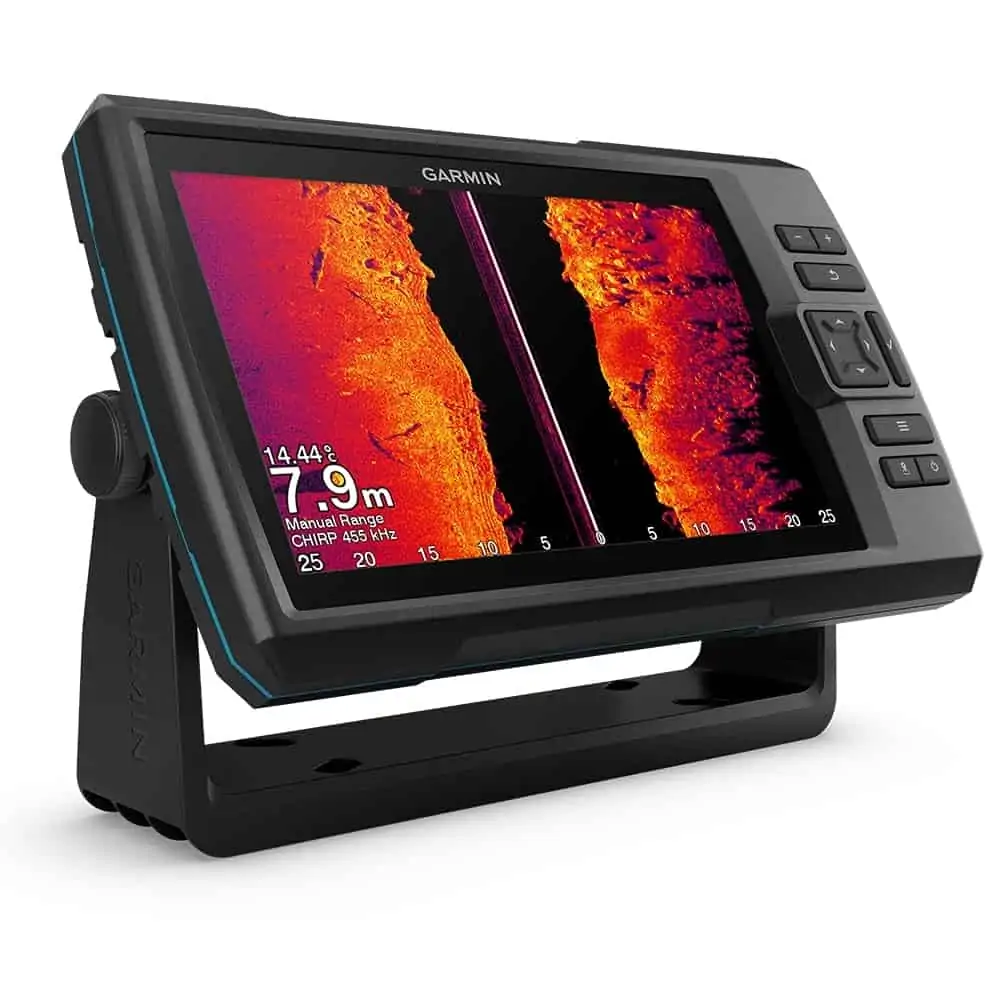

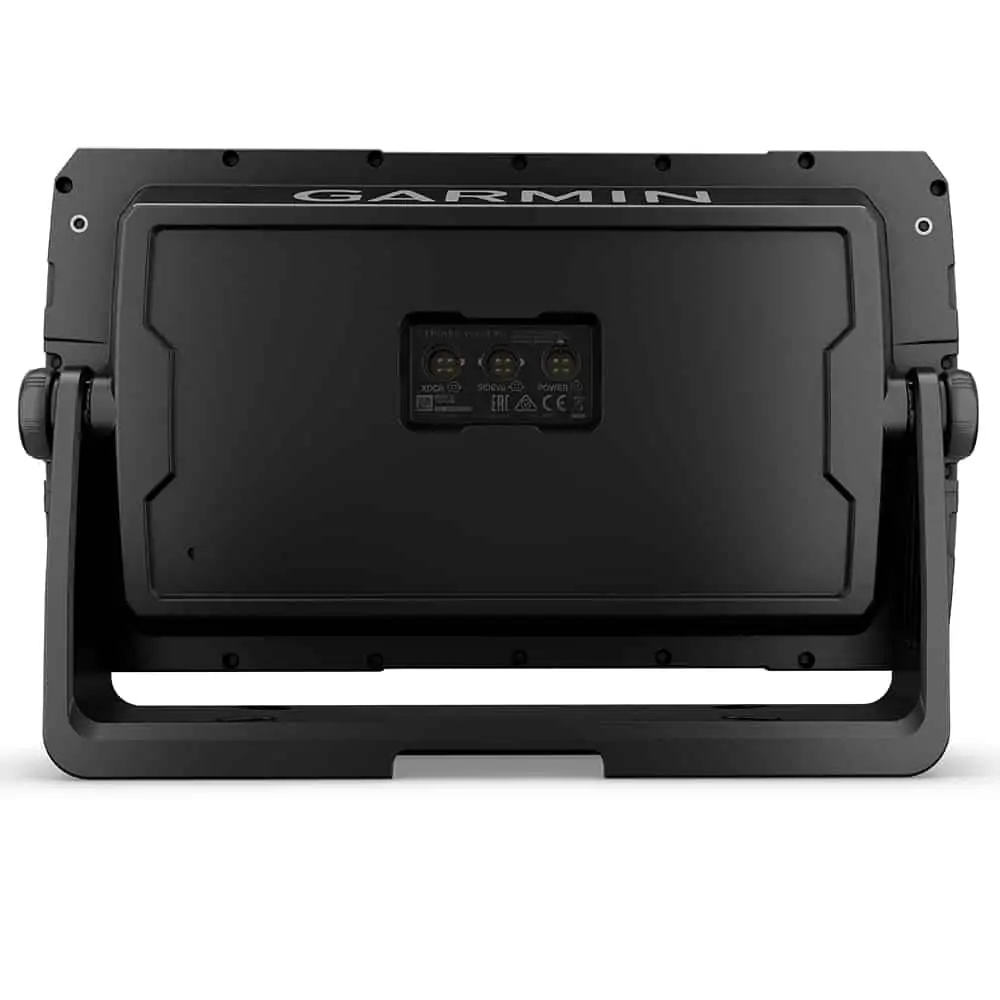

Garmin Striker Vivid 9sv with GT52 Transducer

The GARMIN STRIKER Vivid 9sv with GT52 Transducer is useful, innovative and easy-to-use, its remarkable features are a revolutionary new way to see what looms below the waves.

Product Features:

Clear, Colourful Sonar
Choose from 7 new vivid colour options to see fish and structure in maximum contrast and clarity on your 9-inch fishfinder.

Built-in Transducer
Use the included GT52 transducer to get Garmin CHIRP traditional sonar plus CHIRP ClearVü and CHIRP SideVü scanning sonars.

Waypoint Marking
To catch more fish, you need to know where the fish are biting. Use waypoint marking for hot spots so you can easily find your way back.

High-sensitivity GPS
Plan and create routes and view your boat’s speed on your fishfinder using high-sensitivity GPS.

Quickdraw Contours
Nobody knows the waters you fish better than you. With the STRIKER Vivid 9sv fishfinder, you can store up to 2 million acres of maps with 1-foot contours.

Included Hardware
The STRIKER Vivid 9sv fishfinder includes a tilt/swivel mount plus transom and trolling motor mounting hardware and cable.

Wi-fi Connectivity
Connect to the ActiveCaptain® app1 to transfer waypoints, receive smart notifications (including software update notifications) and access the Garmin Quickdraw™ Community.

Product Specifications:

Physical & Performance

Physical dimensions: 11.1” x 6.5” x 2.4” (28.2 x 16.5 x 6.0 cm)
Water rating: IPX7
Display resolution: 800 x 480 pixels
Weight: 2.4 lbs (1.1 kg)
Display type: WVGA colour

Features

Additional: One 4-pin transducer port, One 4-pin SideVü transducer port, Wireless Connectivity: Yes, Quickdraw Contours, Integrated GPS, Mark Waypoints, Course over Ground (COG), Current draw @ 12V: 0.75A
Water temperature sensor included: Yes
Dual-frequency (50/200 kHz) sonar capable: Yes
Transmit power: 500 W (RMS)
Adjustable depth line (measures depth of underwater objects): Yes
A-scope (real time display of fish passing through transducer beam): Yes
Frequencies supported: Traditional: 50/77/200 kHz CHIRP (mid and high) ClearVü: 260/455/800 kHz
Water temperature log and graph: Yes
Bottom lock (shows return from the bottom up): Yes
Audible alarms: Yes
Dual-beam (77/200 kHz) sonar capable: Yes
Fish Symbol ID (helps identify fish targets): Yes
AutoGain Technology (minimises clutter, maximises targets): Yes
Ultrascroll® (displays fish targets at higher boat speeds): Yes
Split-screen zoom: Yes

In The Box:

• STRIKER Vivid 9sv
• GT52HW-TM transducer
• Power/data cable
• 12-pin to dual 4-pin transducer adapter cable
• Tilt mount
• Hardware
• Documentation
