B&G Zeus3S 9

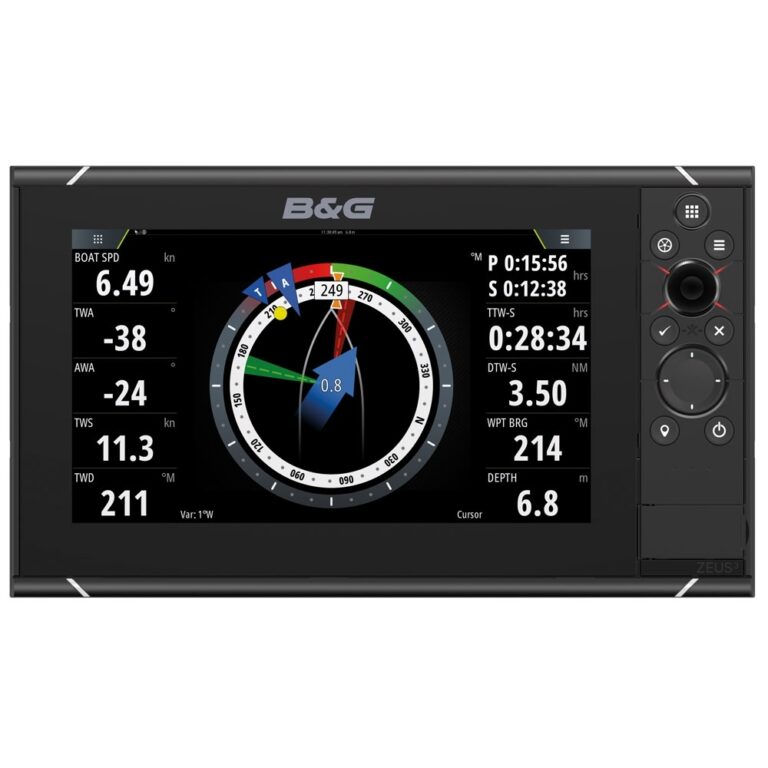

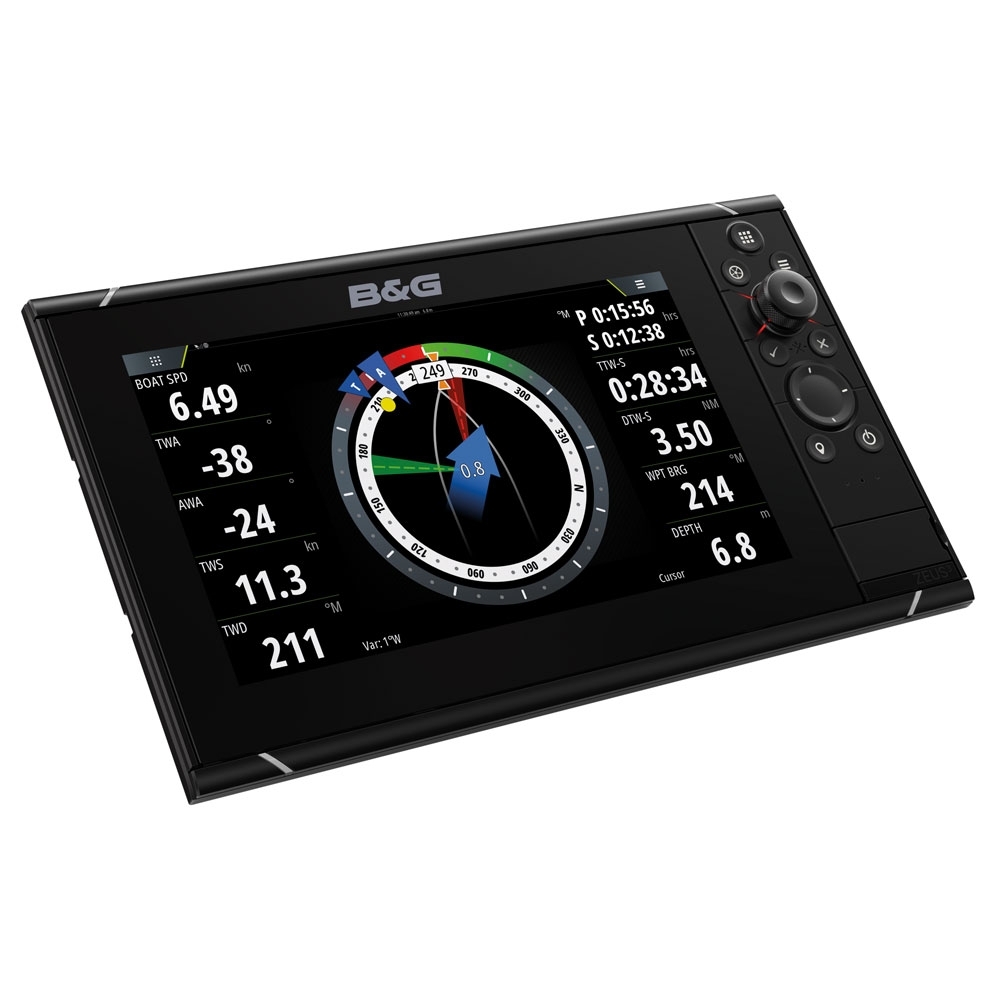

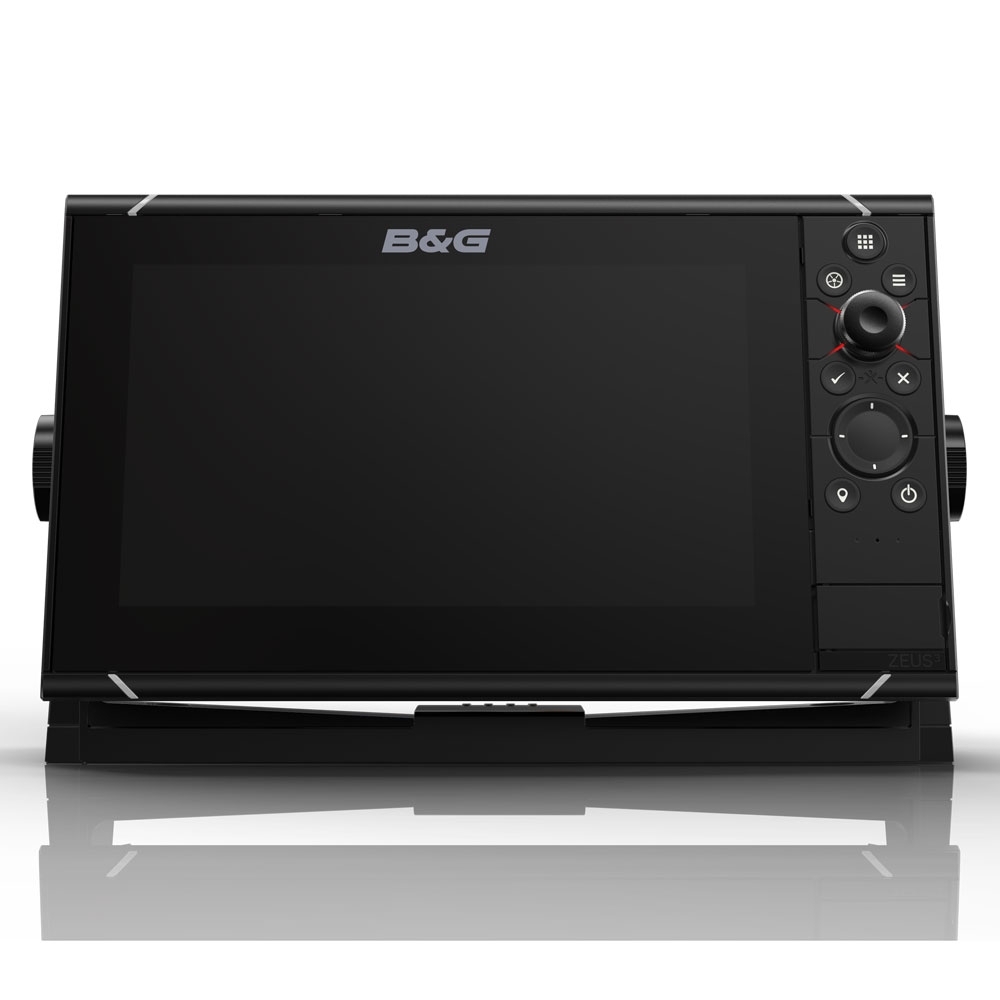

The Zeus³S 9” is the ultimate super-fast sailing chartplotter and navigation system for blue water cruisers and racers. This ultra-bright, wide-angle display combines an all-weather 9-inch touchscreen with a rotary dial and keypad for ultimate control in all conditions. Easily leverage dedicated, race-proven sailing features such as SailSteer, Laylines, and RacePanel. Connect with online services and mobile devices using built-in Wi-Fi, and integrate seamlessly with a wide range of instruments and accessories for greater safety, performance, and enjoyment on the water.

Specifications

Physical

• Dimensions: (W x H x D) 287 x 166 x 90 mm (11.30 x 6.55 x 3.50″)with bracket 311 x 180 x 95 (11.30 x 7.07 x 3.72)
• Mounting Type: Bracket (Supplied) or panel mount
• Weight: 1.41 kg (3.11 lbs.)

MFD

• AIS: Receive AIS data over NMEA 2000 or *NMEA 0183 (*NMEA 0183 has to be wired to all NSS processors)
• Autopilot: Full auto pilot control and commissioning
• Cartography supported: Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+,Reveal) NV Digital (Raster US Charts)
• Digital Switching: C-Zone, Naviop
• External Storage: 2 MicroSD slots, max. 32GB each. Larger if formatted to NTFS
• GPS: Built-in 10 Hz GNSS receiver for GPS and GLONASS, supports combinations with Galileo, Beidou, QZSS.SBAS (WAAS, EGNOS, MSAS, GAGAN)
• Internal Storage: 16 GB
• Multimedia: via SonicHub2, FusionLink
• Radar (inc. compatibility): Halo Pulse Compression Radars, Broadband Radars, HD Pulse Radar
• Sonar (inc. compatibility): Two 9 pin Xsonic Sonar ports. Sonar port 1: Single channel CHIRP, 50/200 khz, HDI. Sonar port 2: Single channel CHIRP, 50/200 khz, TotalScan, LSS HD, ForwardScan. Compatible with: SonarHub, BSM-3, BSM-2, network echo sounders
• Waypoints, Routes, Tracks: 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points.
• Compass Safe Distance – Metric (imperial): 50 cm (1.7 ft)
