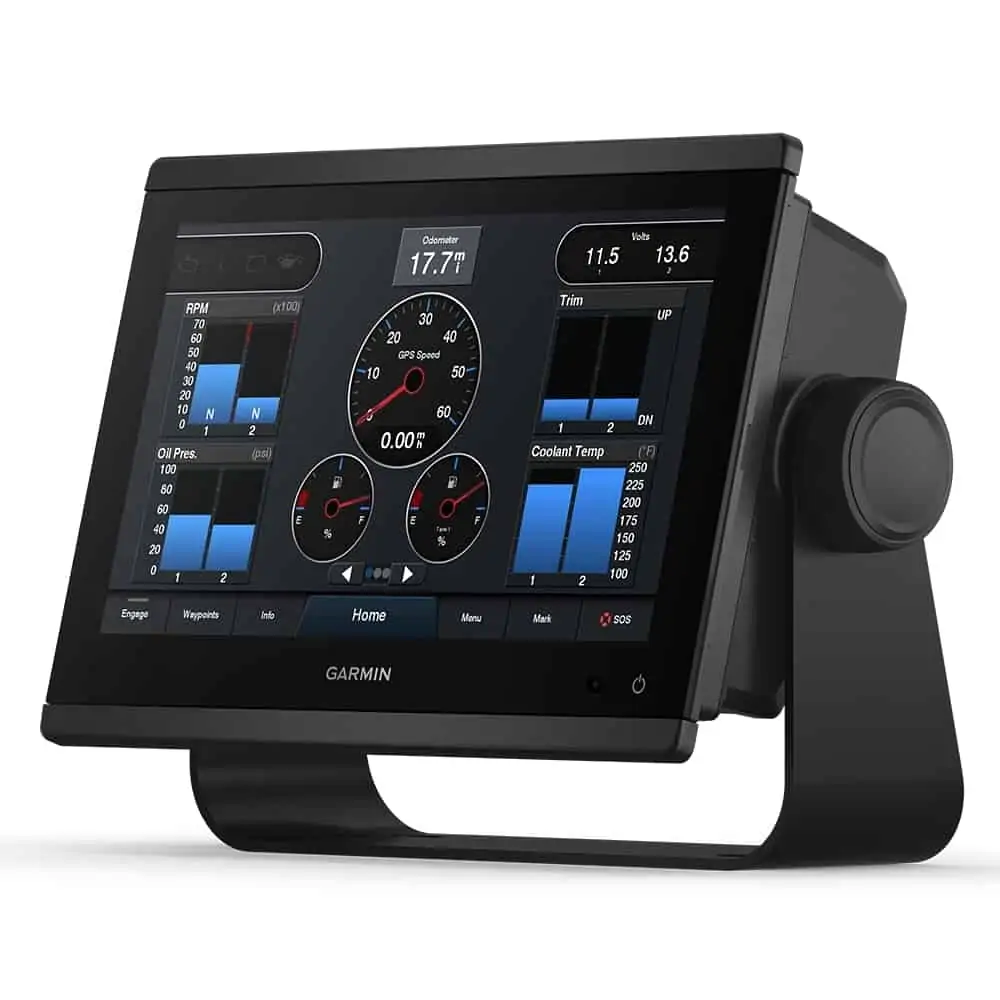

Garmin GPSMAP 923XSV

With 50% more touchscreen pixels and nearly double the processing power of previous-generation 9-inch GPSMAP devices, this crisp chartplotter/sonar combo with high-resolution IPS display integrates seamlessly into your Garmin marine system.

Core Features Include:

Ultra High-definition Scanning Sonar:
Get built-in Ultra High-Definition SideVü and ClearVü scanning sonars with vivid, high-contrast colour palettes to help distinguish fish from structure. GPSMAP® 923xsv also supports 1 kW CHIRP traditional sonar capabilities.

Panoptix Sonar Support
Pair with Panoptix or Panoptix LiveScope™ easy-to-interpret live sonar (transducer sold separately) to see all around your boat in real time.

Faster, Sharper, Smarter
With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9-inch plotter in a wider range of dash configurations.

Improved Display Optics
New higher-resolution 9-inch displays offer improved sunlight readability with 50% more pixels than previous-generation 9-inch GPSMAP devices.

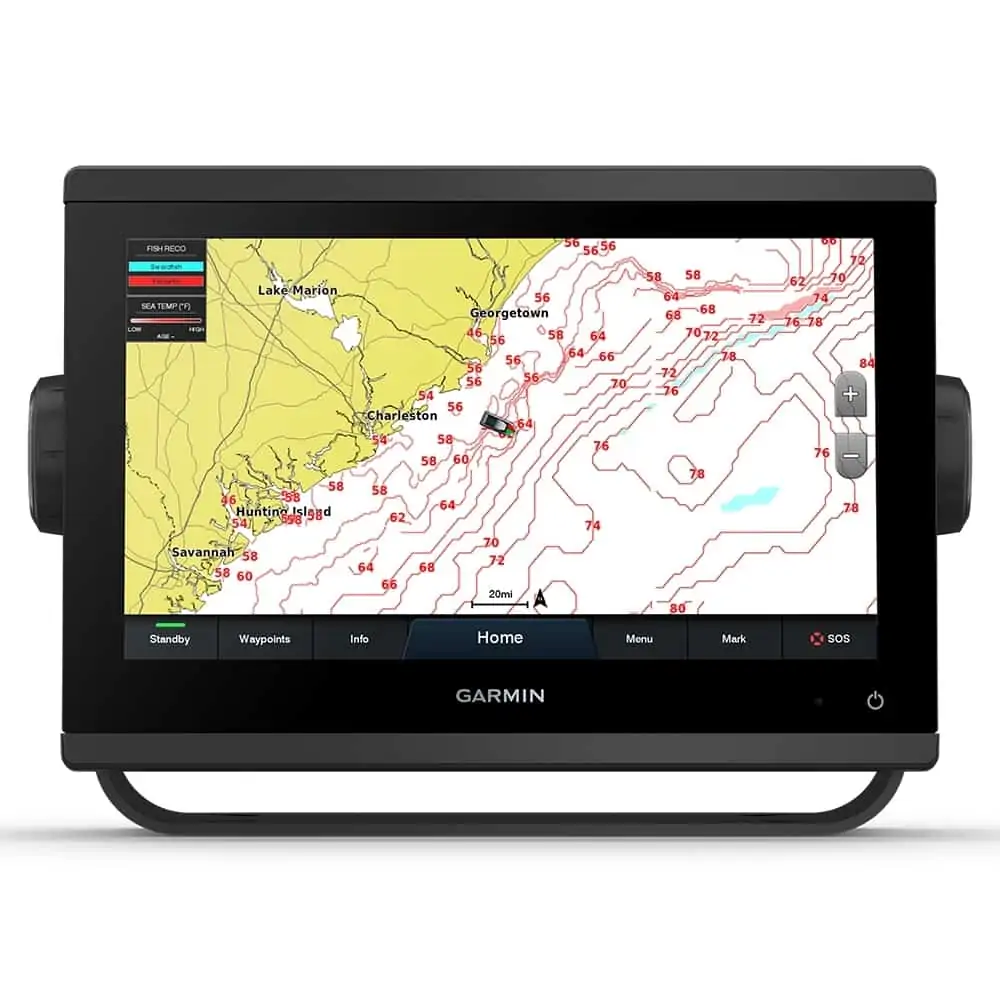

Optional Bluechart G3 Vision Charts
These optional charts offer the best of Garmin and Navionics® data, Auto Guidance3 technology and other premium navigation features.

GARMIN Marine Network
If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

NMEA 2000 and NMEA 0183 Networks
Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Activecaptain App
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more.

Integrated Ant Technology
Connect with some of your favourite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers transducers, GNX™ Wind marine instruments and wireless remote controls.

J1939 Connectivity
Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

Onehelm Feature
This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Product Specifications:

Physical & Performance

Physical dimensions: 9.2″ x 6.4″ x 3″ (23.3 x 16.2 x 7.6 cm)
Water rating: IPX7
Mounting options: Bail, flush or flat
Antenna: Internal or external over NMEA 2000
Receiver: 10 Hz high-sensitivity
Display size: 7.8″ x 4.4″; 9.0″ diagonal, (19.9 x 11.2 cm; 22.9 cm diagonal)
Display resolution: 1280 x 720 pixels
Weight: 3.6 lbs (1.6 kg)
Display type: WXGA display

Maps & Navigation

Accepts data cards: 2 microSD™ cards (back of unit)
Track log: 50,000 points; 50 saved tracks
Preloaded maps: Worldwide basemap
Routes: 100

Features

Maximum depth: 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions)
Wireless remote compatible: Yes
J1939 Compatible: Yes
Dual-frequency (50/200 kHz) sonar capable: Yes
Transmit power: 1 kW traditional; 1 kW CHIRP
SiriusXM™ Weather & Radio compatible: Yes
Polarised Support: Yes
Water temperature log and graph: Yes
Supports FUSION-Link™ compatible radios: Yes
Power consumption: Max power usage at 10 Vdc: 22 W, Typical current draw at 12 Vdc: 1.3 A, Max current draw at 12 Vdc: 1.8 A
NMEA 0183 output ports: 1 (Differential)
NMEA 2000® compatible: Yes
Bottom lock (shows return from the bottom up): Yes
CHIRP sonar technology: Yes (Built-in)
NMEA 0183 compatible: Yes
Frequencies supported: Traditional: 50/77/83/200 kHz, CHIRP (low, medium, high), ClearVü/SideVü (260/455/800 kHz) (dependent on transducer)
Transducer pin numbers: 12-pin (orange)
Supports AIS (tracks target ships position): Yes
GSD™ Black Box sonar support: Yes
GCV™ Black Box sonar support: Yes
Sonar history rewind: Yes

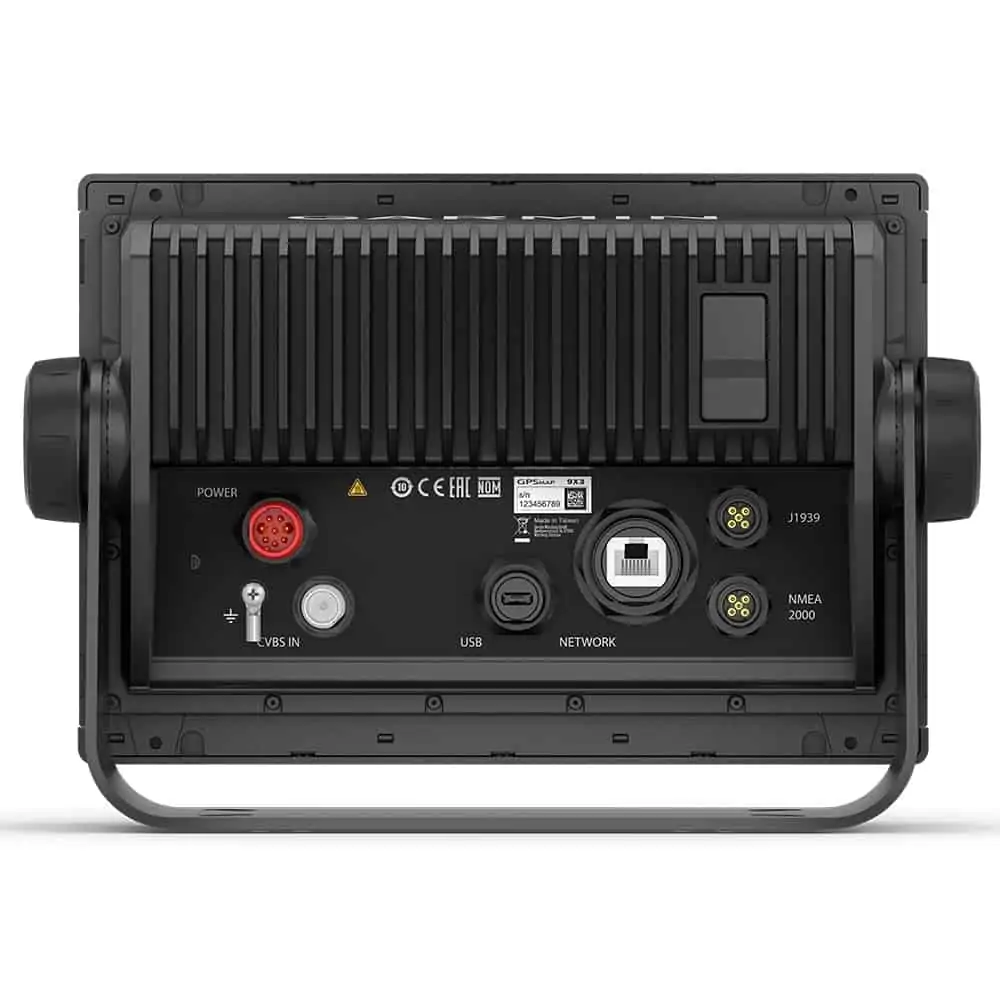

Video input ports: 1 BNC
SideVü: Yes with CHIRP (built-in)
ActiveCaptain compatible: Yes
GRID™ (Garmin Remote Input Device) compatible: Yes

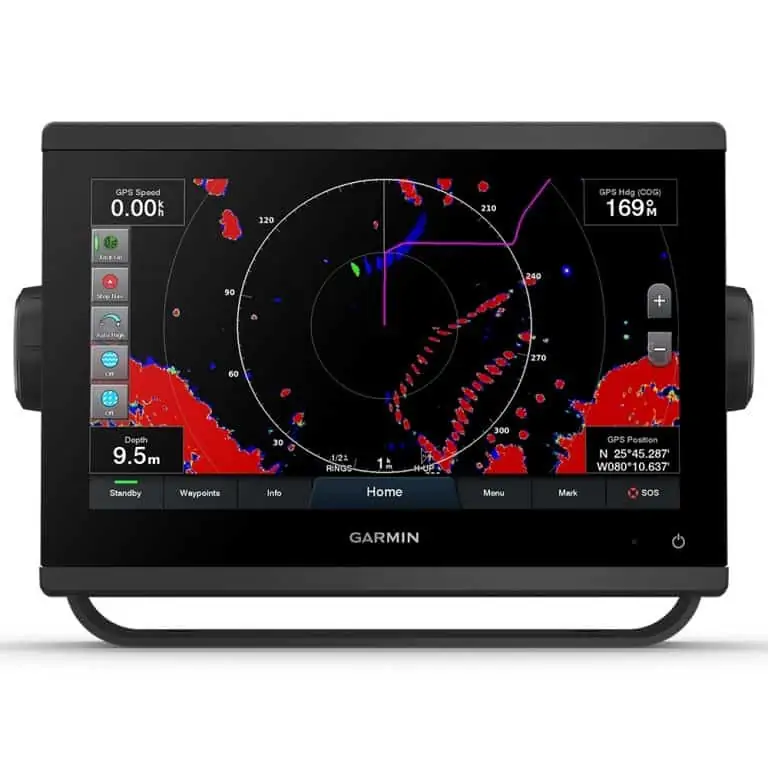

Garmin Radar compatible: Yes
Supports DSC (displays position data from DSC-capable VHF radio): Yes
Garmin Marine Network™ ports: 1
Garmin Sonar compatible: Yes (built-in)
NMEA 0183 input ports: 1 (Differential)
Wireless connectivity: Yes
Wireless mouse compatible: No
Sonar recording: Yes
Dual-beam (77/200 kHz) sonar capable: Yes
Waypoints: 5,000
Garmin SmartMode compatible (customisable monitor presets): Yes
ClearVü: Yes with CHIRP (built-in)
Sailing features: Yes
Tide tables: Yes

In The Box:

• GPSMAP 923xsv chartplotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 metres)
• 8-pin transducer to 12-pin sounder adapter cable
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
