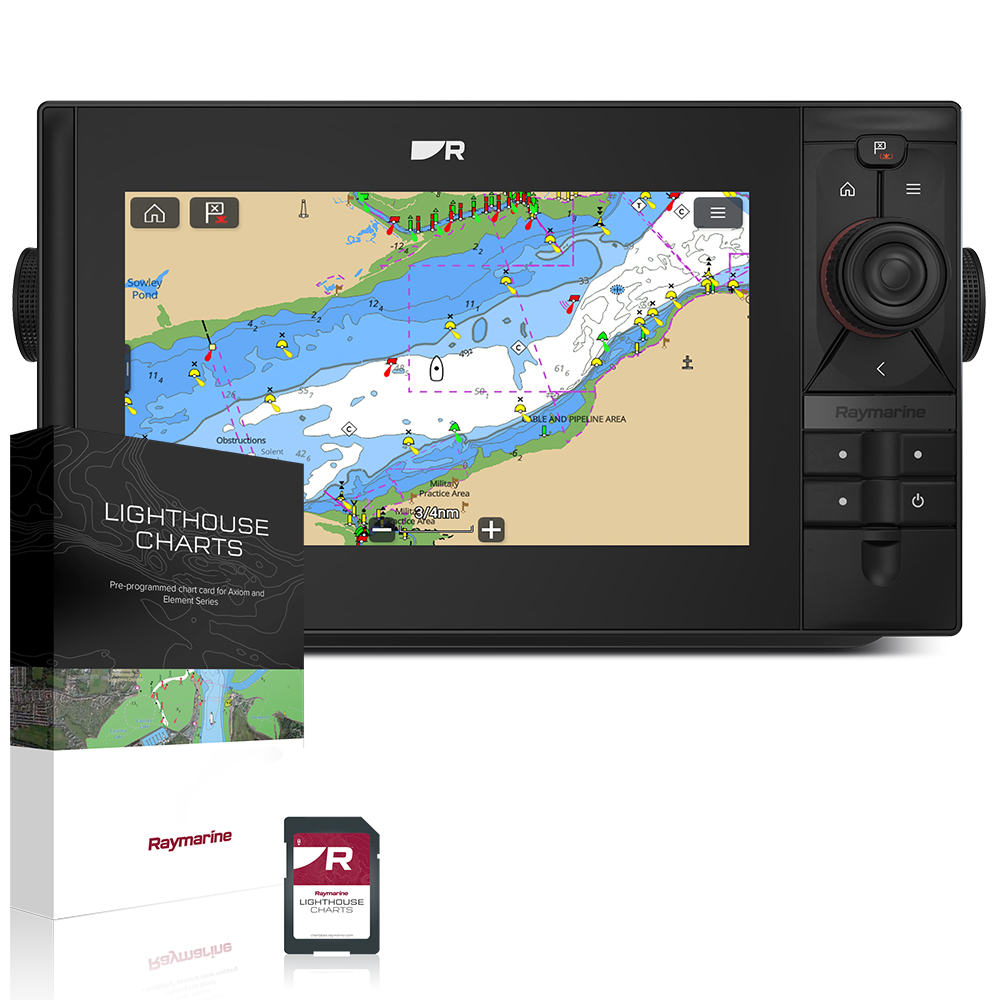

Raymarine Axiom 2 Pro 9 S – With West EU Lighthouse Chart
£ 2,695.00 £ 2,349.95
Available to Back Order
Order and we will aim to deliver within 3-5 working days.
We will contact you if this takes longer.

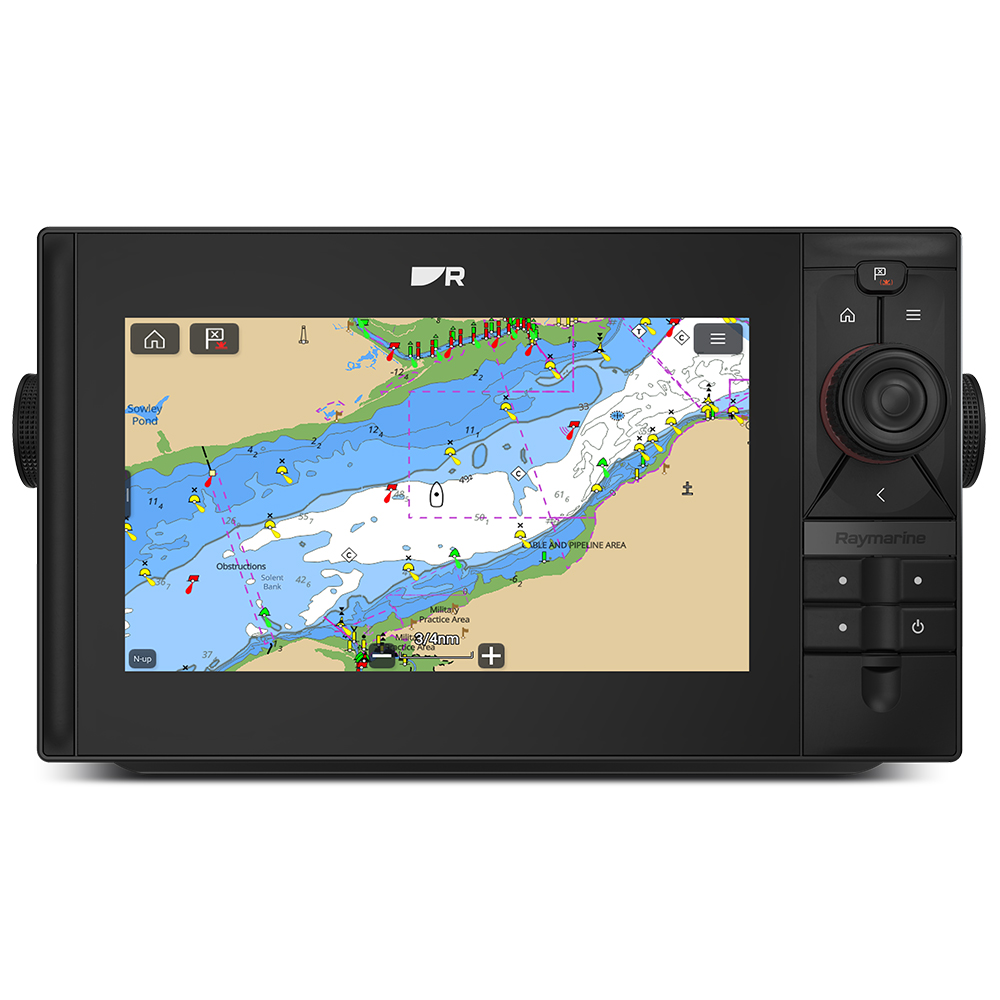

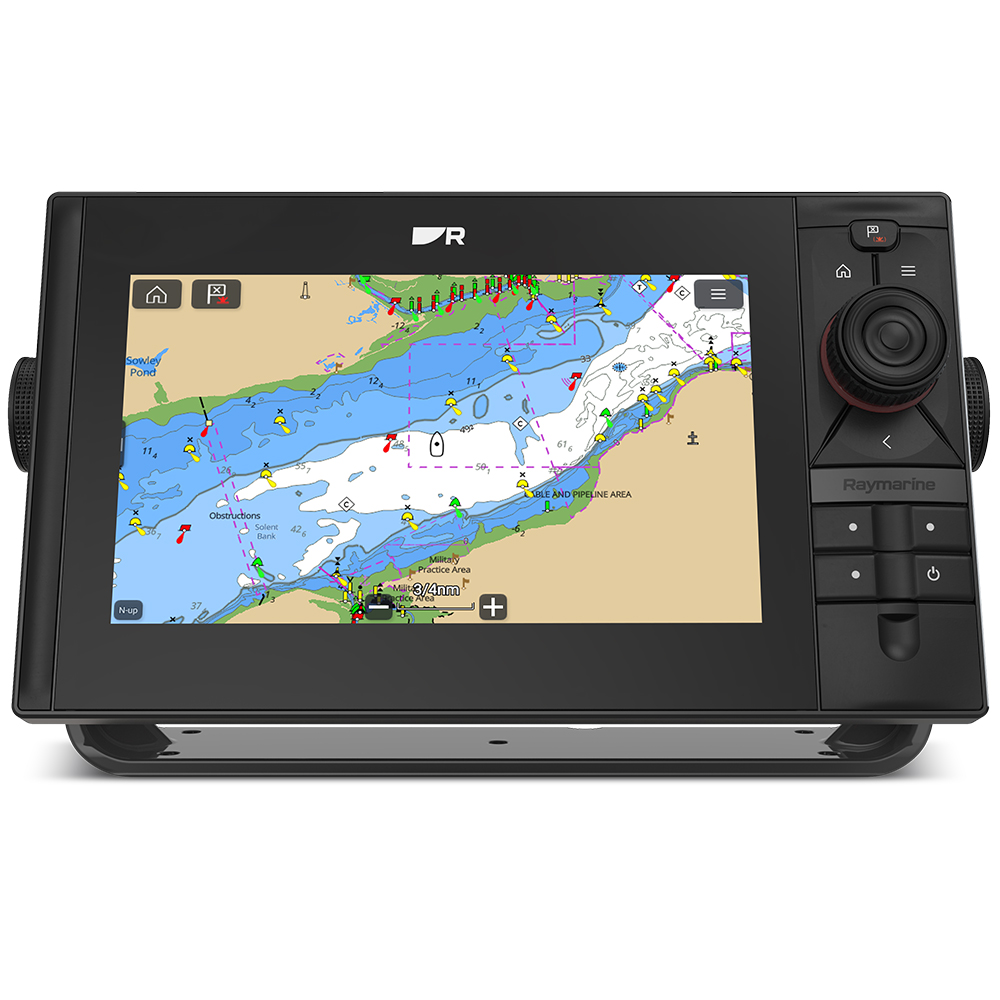

Raymarine Axiom 2 Pro 9 S – With West EU Lighthouse Chart
With a built in GPS antenna and included Lighthouse charts for Western Europe. The Raymarine Axiom 2 Pro 9 S will function as a GPS/Chartplotter. For all other functions (radar, sonar autopilot etc) additional sensors and equipment (sold separately) are required.
Plan your next cruise and get underway confidently with Raymarine Axiom 2 Pro 9 S HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Use Axiom 2 Pro 9 S as a single GPS chartplotter or create a network of multiple Axiom displays with a simple RayNet cable connection.
POWER THAT PUSHES THE LIMITS
Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. Chartplotter, radar, autopilot, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.
READY FOR ALL CONDITIONS
Axiom 2 Pro’s HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.
Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.
CONFIDENT CONTROL
Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.
Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.
ADVANCED SAILING TOOLS
Axiom 2 Pro offers a suite of powerful features to help you optimize your performance under sail.
IN THE BOX
- Display unit
- User Configurable Keypad
- Suncover
- Gasket

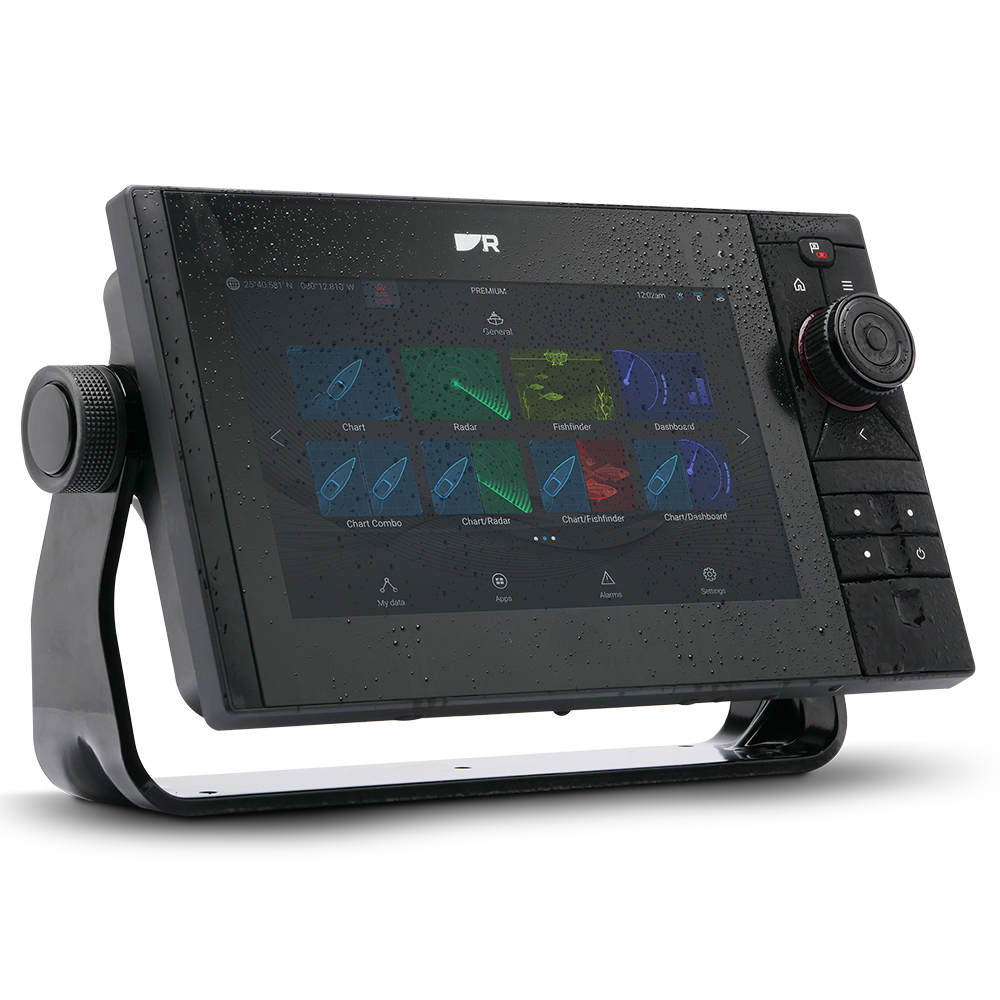

- Trunnion bracket (Axiom 2 Pro 9 and 12 Only)
- Trunnion knobs (x 2)
- Optional grounding connection (Screw (M3x5), Spring washer (M3), Crimp terminal (M3))
- DeviceNet to SeaTalkng adaptor cable 1m (3.28 ft)
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
- Mounting fixings x4
- Documentation
- Power/Video/Audio cable 1.5 m (4.92 ft)
SPECIFICATIONS
PHYSICAL
Dimensions (Trunnion mounted): Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)
Dimensions (Surface/Flush mounted): Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)
Resolution: 1280 x 720 HD
Viewing angle: Top 88° / Bottom 88° / Left 88° / Right 88°
POWER
Power consumption @ 12 V dc: 33.12 W
Power consumption @ 24 V dc: 30.96 W
CONNECTIONS
Transducer connection: 25 pin RealVision type connector. Requires the A80490 adaptor cable for CPT-S style transducers
Ethernet connection: 2 RayNet (10/100/1,000 Mbits/s) ports
NMEA 2000 connection: DeviceNet connector
Wi-Fi: Multiband – 2.4GHz, and 5Ghz 802.11b/g/n
Bluetooth: v4.0
Accessory connection: USB Micro B
Internal storage: 64GB Solid State
External storage: 2 front mounted MicroSDXC card slots
Digital Video and Audio: HDMI Out Micro connector type D
Analog video connections: BNC Analog video input (on power cable)
Analog audio connections: RCA connectors via power cable
External GPS antenna: TNC connector
