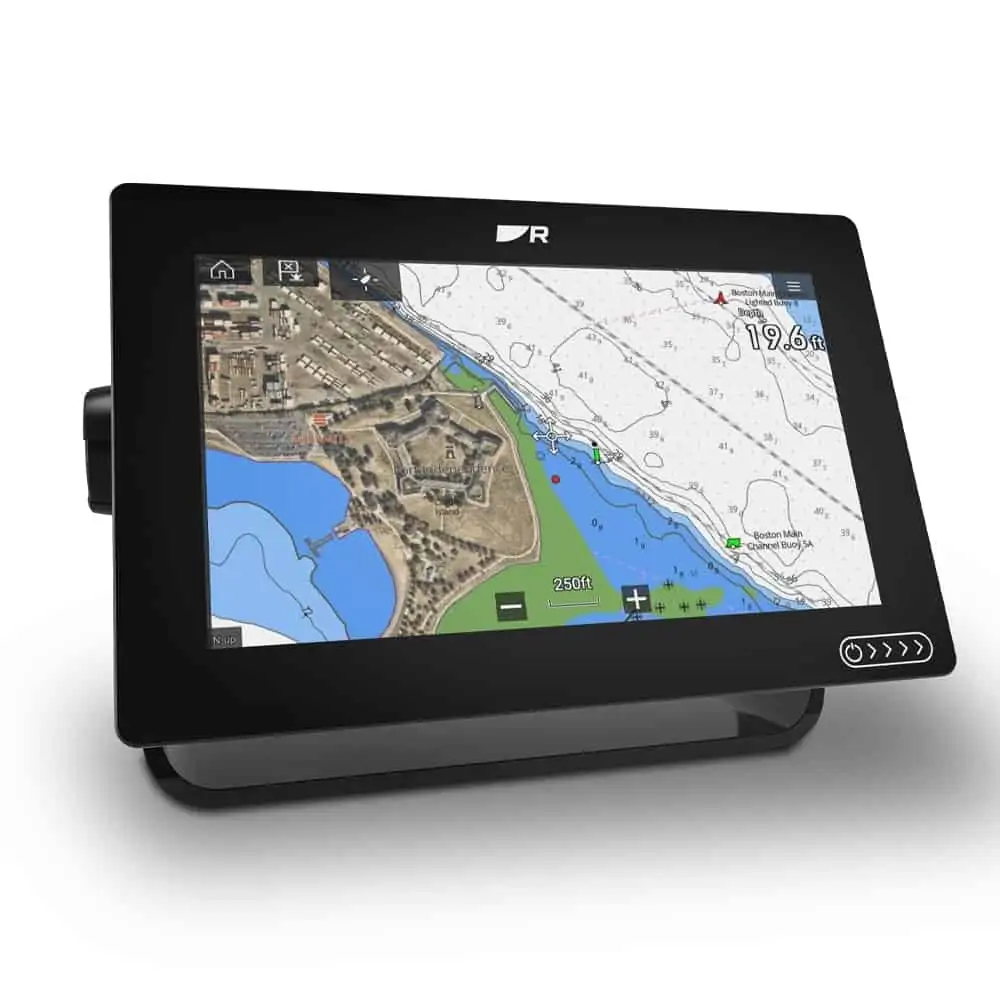

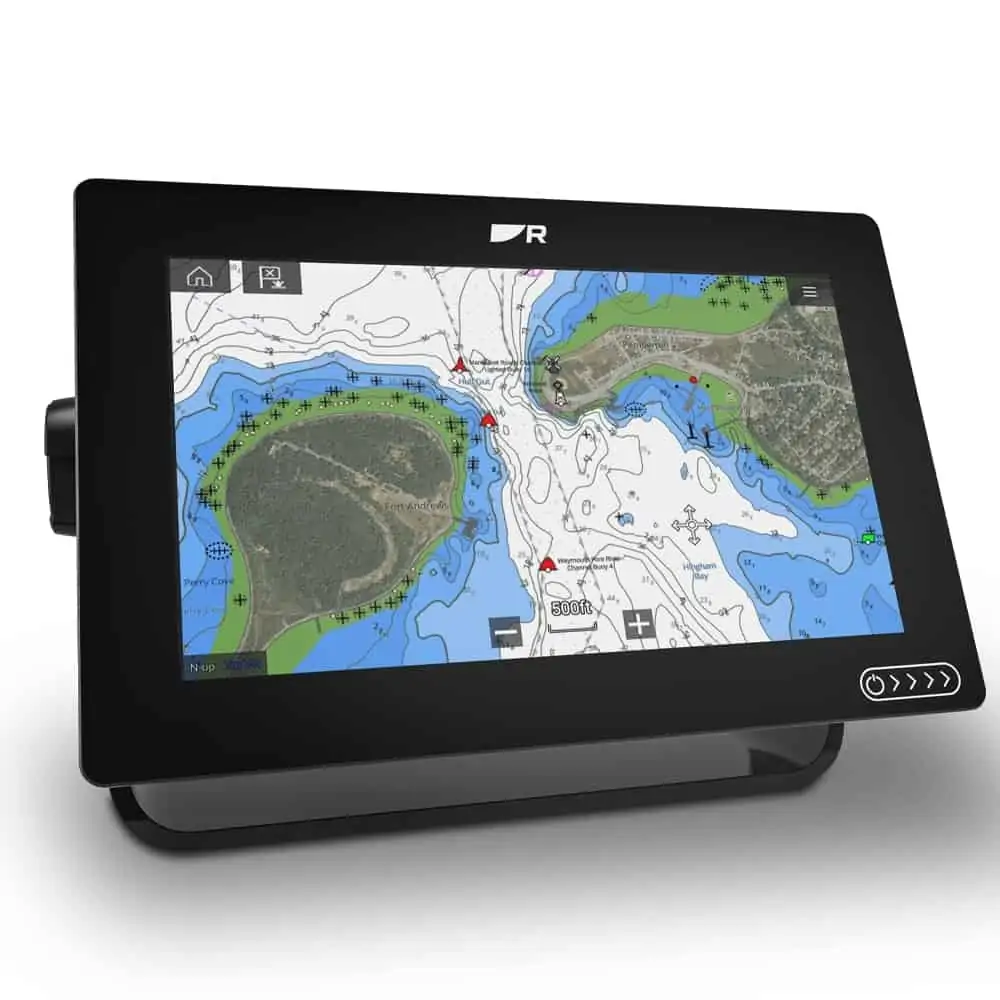

Raymarine Axiom+ 9 RV

£1,399.95 - £1,799.95

The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.

Available as:

Display only
Display with RV-100 Transom Transducer
Display with West EU Lighthouse Chart and RV-100 Transom Transducer

Product Specifications:

  • Display Size: 9 inch High Density IPS
  • Display Resolution: 1280 x 720 (WXGA)
  • Display Type: Multitouch with HydroTough rugged hydrophobic coating
  • Brightness: 1,500 nits
  • Viewing Angle: 85 Degree Top, Bottom, Left, Right
  • Dimensions (W x H x D): 244 x 158 x 77mm
  • Weight: 5 lbs
  • Mounting Options: Surface, Flush, Trunnion
  • Waterproof Rating: IPX6 / IPX7
  • Operating Temperature Range: -25°C to +55°C (-13°F to +131°F)
  • Storage Temperature Rating: -30°C to +70°C (-22°F to +158°F)
Part Number
Size
Port Solent
Warehouse
99609153
Display Only
1
0
99609160
With Transducer
1
0
99728304
w. West EU Chart & Transducer
1
0
