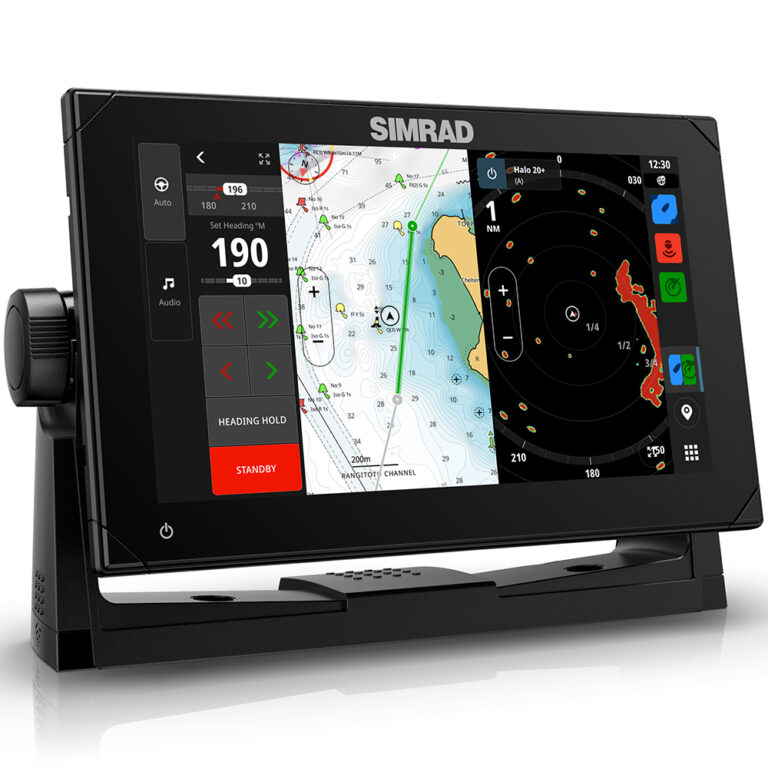

Simrad NSX 3009 Multifunction Chartplotter / Sonar

Take your experience to a whole new level with the Simrad® NSX™ smart chartplotter and fishfinder.

Choose from either display only, or with the Active Imaging™ 3-in-1 transducer.

Please Note: Simrad NSX is only compatible with CMAP Discover X or Reveal X cartography. See accessories tab above.

With an innovative, modern interface featuring powerful navigation capability with C-MAP® support, you’ll see everything like never before, our IPS touch screens capturing every detail. The NSX comes fully equipped with integrated Sonar, Radar and Autopilot support, and with our handy Setup Wizard tool you’ll be up and running in no time. All you need to do now is choose your next on-the-water adventure.

A New, Intuitive Touch Screen Experience

Experience modern simplicity in rich detail. NSX pairs a clean and straightforward interface with high-definition visuals to deliver a whole new experience. Easily access and use all NSX features, including smart drag-and-drop screen customization, fully editable instruments bar and enhanced day and night modes. Get crystal clear views of chart detail, structure and bottom contours with the vibrant SolarMAX™ IPS touch screen. The high definition display is viewable from any angle, in direct sunlight, and through polarised lenses with complete touch screen operation.

Bring Navigation to Life with NSX

See map details in a new way. This includes support for next-generation C-MAP® DISCOVER X™ and REVEAL X™ marine-optimized charts developed for NSX, featuring a fresh, intuitive chart presentation and daily updates.

C-MAP charts include full-featured Vector Charts with Custom Depth Shading and High Resolution Bathymetry showing accurate contour lines down to a 1-foot level of detail. You can improve planning and route plotting with Tides and Currents projections and our fastest ever Autorouting. Plus, there’s a new Map Inspection feature with one-touch access to information on locations, POIs, tides, channels and more.

The Simrad® Companion App acts like an extension of your NSX with the same chart experiences and all your chart data at your fingertips, on or off the water. The app lets you plan trips, review Tracks and plot Waypoints on your App and sync directly to your NSX.

Full Suite of Simrad® Technology at Your Fingertips

NSX opens up a world of possibilities. Expand your system with powerful Simrad® Sonar, Autopilot and Radar technologies.

Get high resolution images below and to the sides of your vessel with Active Imaging™ featuring CHIRP sonar, SideScan/DownScan Imaging™ and FishReveal™. Search even greater depths with a wide range of compatible 1kW transducers.

Known for its legendary performance, Simrad® Autopilots free you up to enjoy all of your activities. Whether trawling for game fish or planning your next destination, we’ve got you covered. Available for outboard and inboard engines, our ‘extra pair of hands’ helps run patterns and routes, navigate to waypoints, and stay on course.

You can also identify hazards immediately. With our award-winning pulse compression HALO® Dome Radars, you can see near and far simultaneously (up to 42nm) with ultra-fast updates every second. Be ready instantly with low-power standby mode, and highlight targets using custom modes such as harbour, offshore and weather.

Simple to Set Up, Easy to Manage

With everything from a Setup Wizard to Simrad® App integration, simple sonar setup and hints to assist you when you need it, NSX makes life on the water easier than ever before.

The Setup Wizard helps with step-by-step instructions to get you up and running quickly, while the Simrad® App offers a whole host of added extras. These include hassle-free software updates, on and off the water trip planning, a streamlined chart display that looks the same across all platforms, plus easy transfer of all data, including routes and waypoints.

But that’s not all. Sonar hints offer guidance on what’s happening during settings adjustments and sonar device setup gives you easy-to-understand prompts for each step of the process – you’ll be up and running in no time. All you need to do now is choose your next adventure.

In the box

NSX 3009 Display
Mounting bracket
Suncover
Dash mounting kit
Power cable
Documents
Active Imaging 3-in-1 Transducer (with AI bundle)
