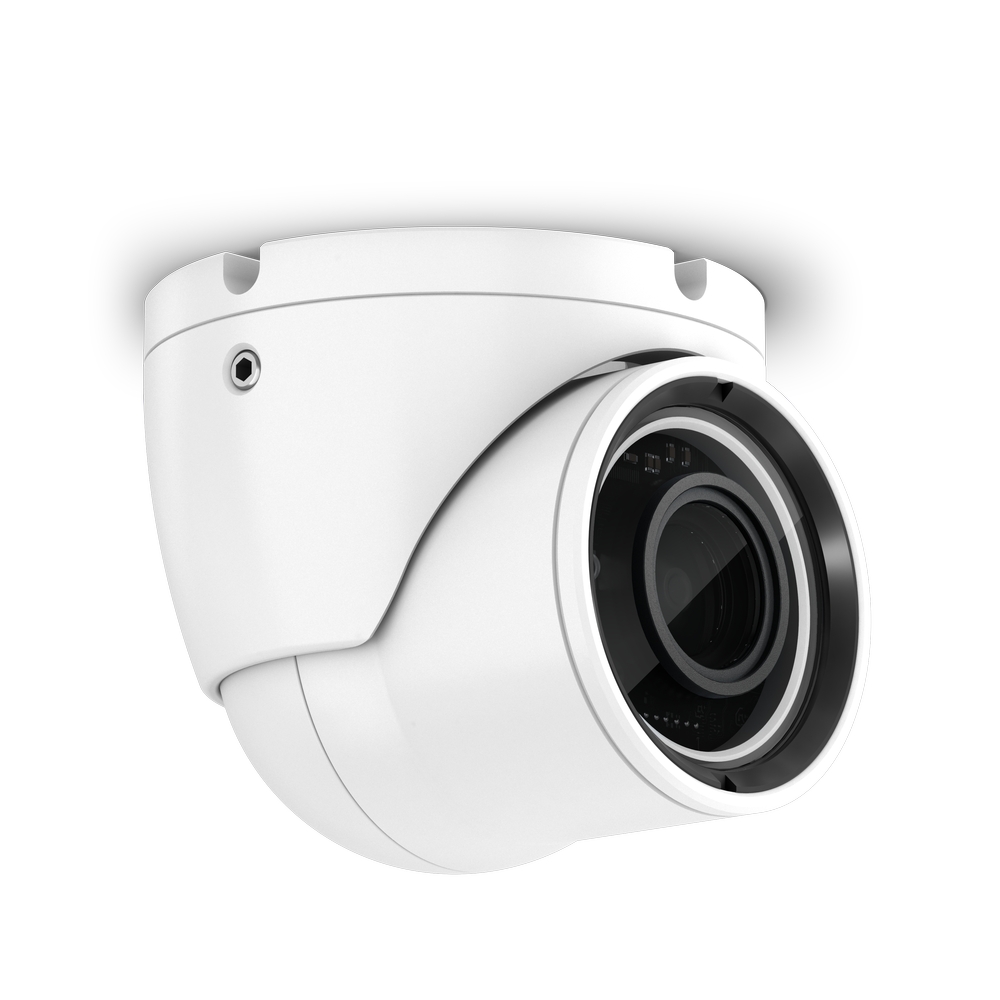

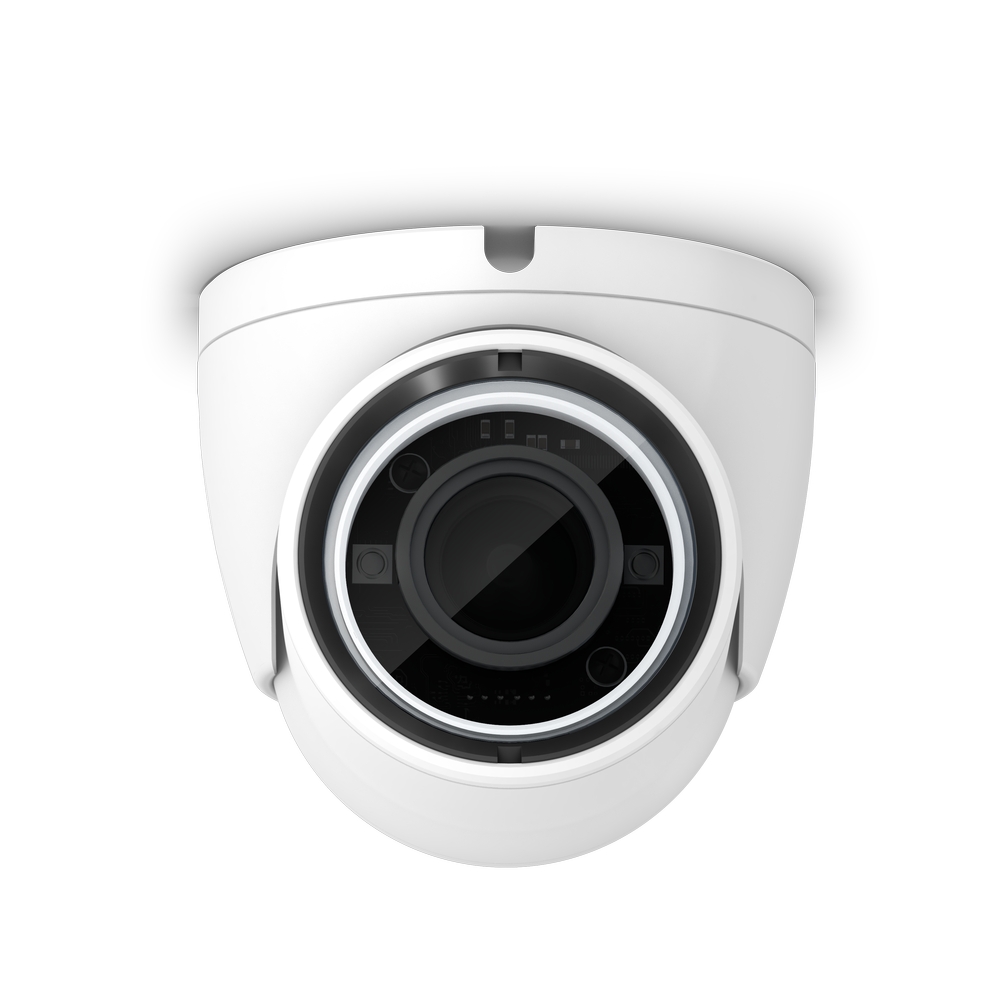

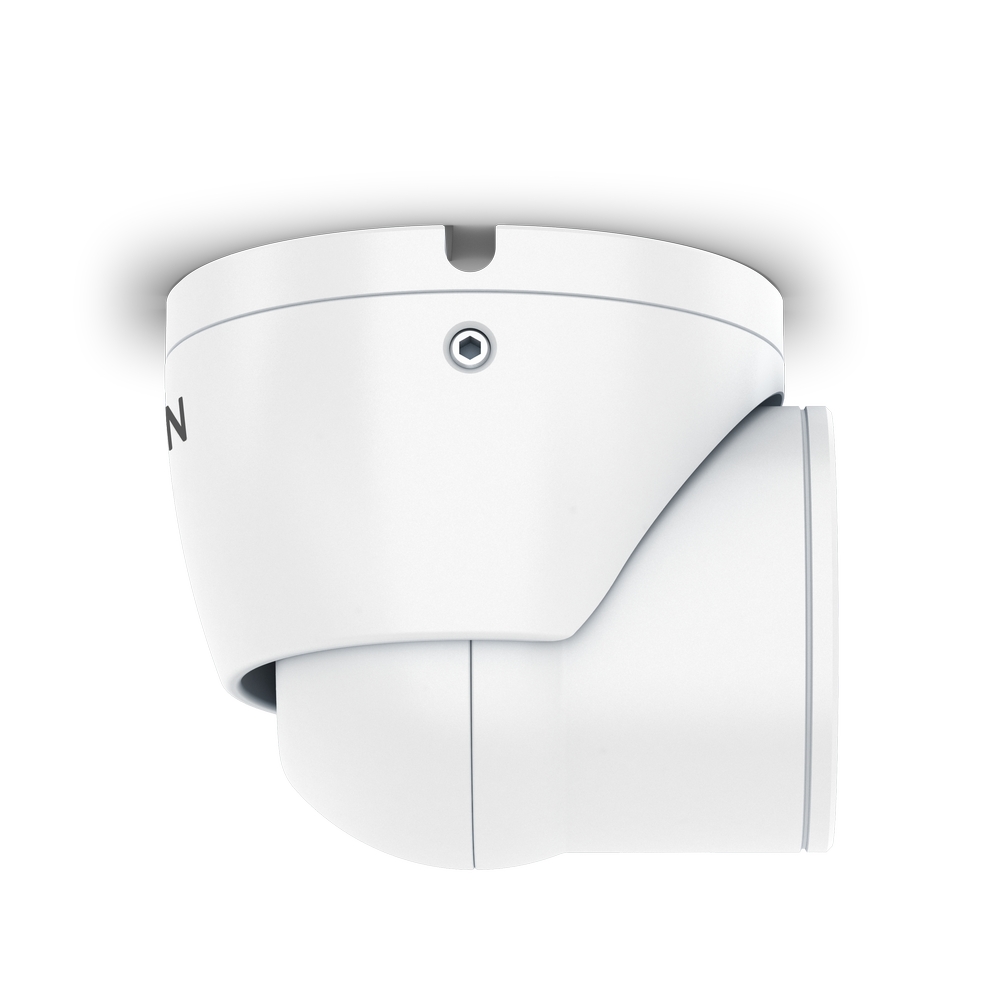

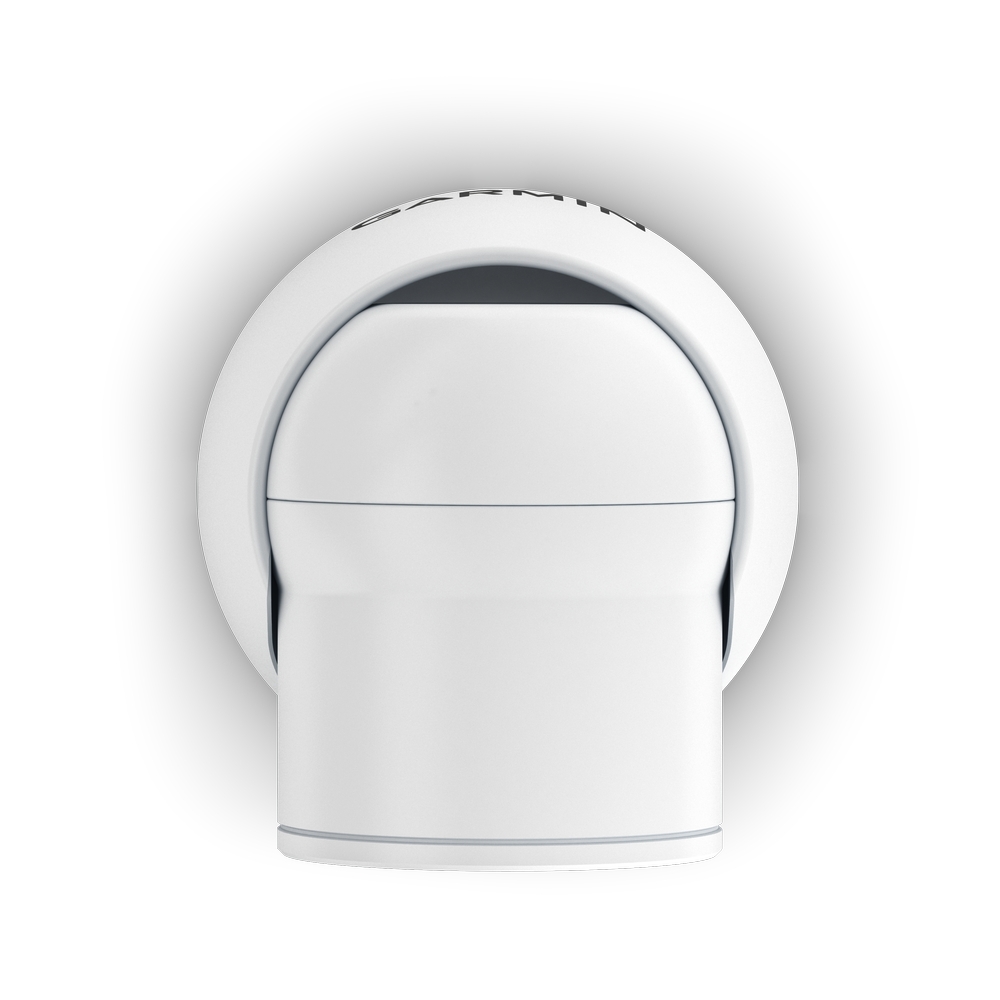

Garmin GC14 Marine Camera

See more aboard your vessel

Provides an extra set of eyes aboard your vessel to monitor areas above or below decks
Analog camera delivers excellent quality images, even in low light; perfect for engine rooms
Provides visibility in low light up to 15 metres; an improvement over previous generation analogue cameras
Reverse-image setting on compatible chartplotters helps when backing out of tight locations such as a crowded marina
Rotate images on compatible chartplotters 90/180/270 degrees so you can mount in any orientation

See more of what’s happening on or around your boat with our GC 14 marine camera. With GC 14 on your vessel, you’ll be able to monitor areas inside and outside while you’re on the water or while you’re docked.

Resolution: PAL: 976(H) x 582(V)
Scanning system: PAL: 625 lines 2:1 interlaced
Sync system: Internal
Low light vision range: Up to 15 m
Viewing angle (D×H×V (°)): 95.0° x 69.0° x 52.0°
Video output: 1.0Vp-p composite 75 O composite
S/N ratio: More than 52dB (AGC off)
Operating temperature: From -10? to +50?
Power consumption: 12VDC; 80mA (IR off); 170mA (IR on)
Weight: 205 g
Dimensions (DxH): 50.5 mm x 44.3 mm
Cable length: 2 ft (60 cm)
Compass safe distance: 10″ (254 mm)
Water rating: IPX7
