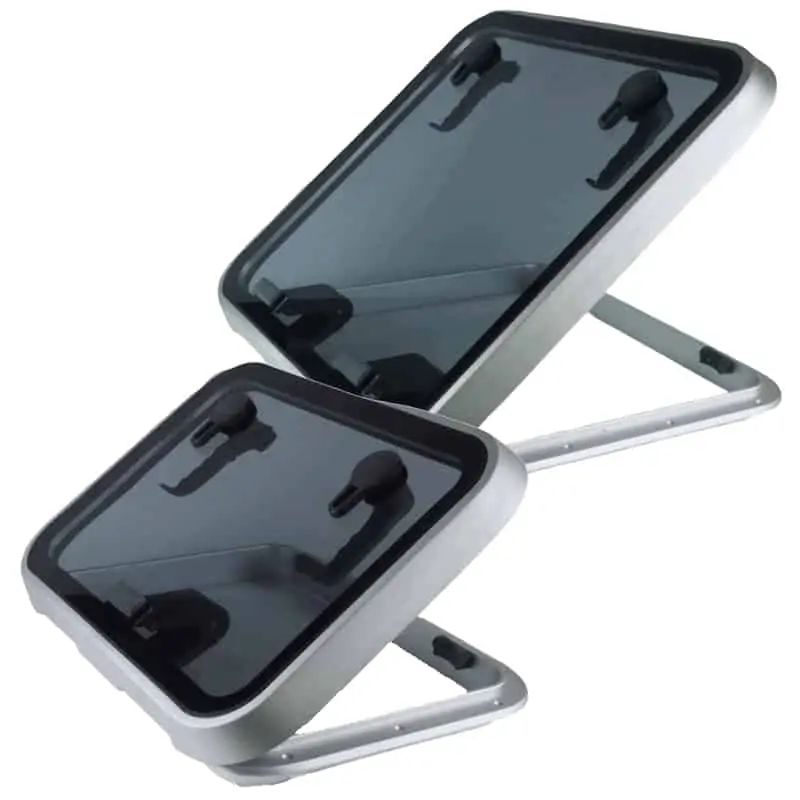

Bainbridge Storm Hatch

Bainbridge Storm Hatch Flat or Flange Base – Size 30, 50 or 60

• Storm Classic hatches fit the standard cutout sizes of most production boats – power & sail
• Designed to last whatever you or the elements throw at them!
• Direct replacement for the UK’s most popular hatch
• Self supporting lid up to 90 degrees
• Lid sits flat at 180 degrees
• CE approved
• Lockable venting position
• Smoked acrylic
• Anodised aluminium
• If unlocked, can be opened from the outside

Specifications

Size 30 – (Flange or Flat)
Dimensions – 391 x 521 x 39.5 mm
Cutout Dimensions – 322 x 452 mm

Size 50
Dimensions – 444 x 574 x 43 mm
Cutout Dimensions
Flange – 372 x 502 mm
Flat – 377 x 507 mm

Size 60
Dimensions – 597 x 597 x 43 mm
Cutout Dimensions
Flange – 509 x 509 mm
Flat – 508 x 508 mm

Difference between Flange and Flat Base
