Lewmar Ocean Hatch – Flat or Flange Base

£ 399.95 - £ 1,029.95

Clear

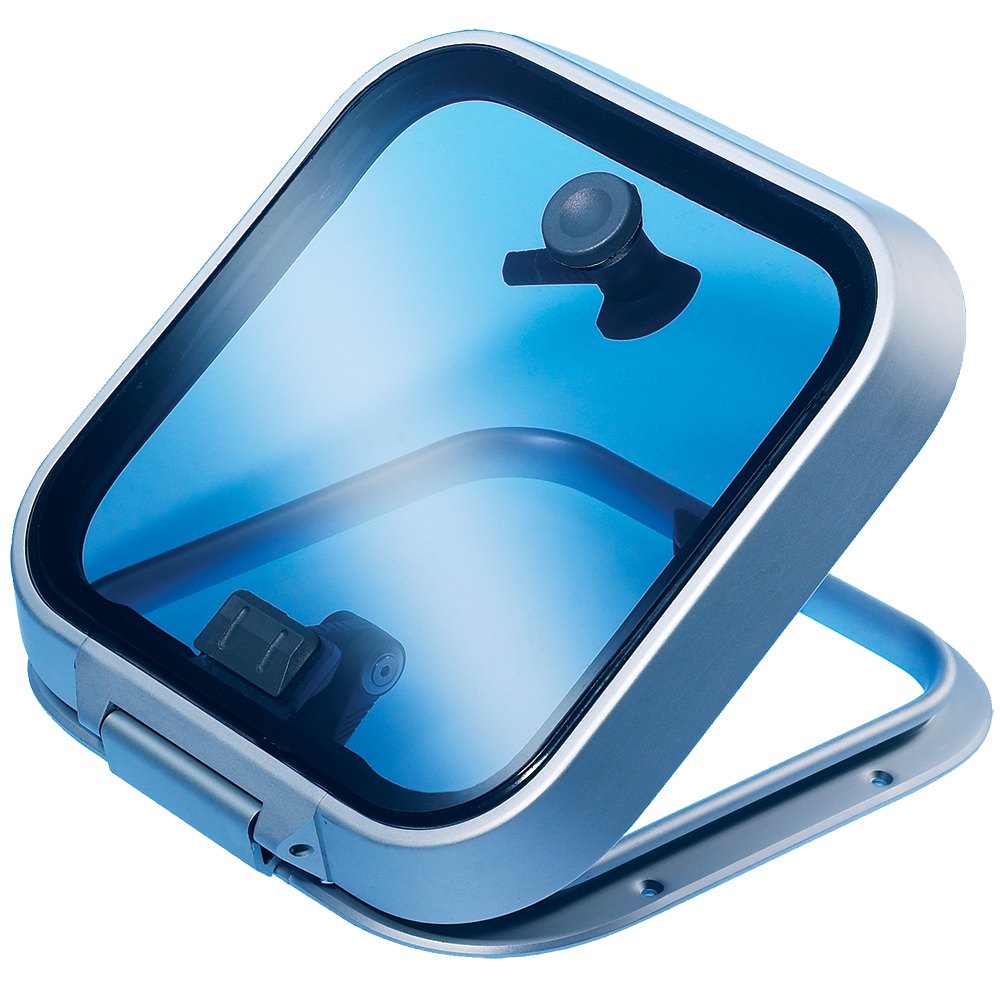

With its classic style, the Ocean Hatch by Lewmar is fitted to thousands of boats around the world.

Its rugged construction provides the ultimate protection against the elements, whatever conditions you might face. Available with flat base or flange base.

Features

  • Friction levers hold the lid open in any position up to 95°
  • Anodised aluminium frame for corrosion resistance
  • All sizes suitable for CE Area 2 (Deck, Coachroof, Cockpit and Transom).

Mounting Instructions

  • Fit to a flat surface with a maximum tolerance of +/- 1mm.
  • Fastening size at hinge section use (M6 / 1/4″).
  • Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

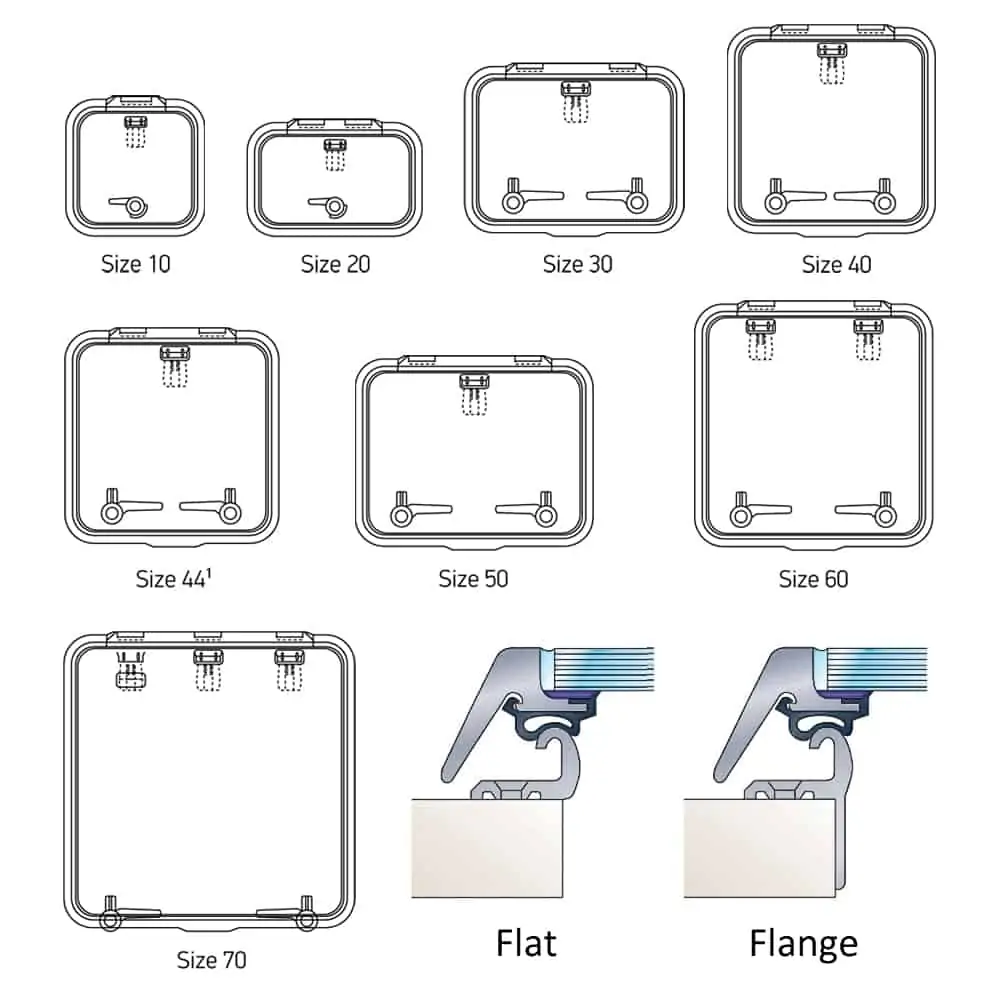

Part Number
Size / Dimensions
Port Solent
Warehouse
99434762
10 / Flange Base
1
0
99434755
10 / Flat Base
1
3
99434779
20 / Flange Base
1
1
99300265
20 / Flat Base
1
0
99300258
30 / Flange Base
0
1
Y39630050
30 / Flat Base
1
5
99170677
40 / Flange Base
0
2
99434786
40 / Flat Base
1
1
99218348
44 / Flange Base
0
4
99218324
44 / Flat Base
1
1
99434809
50 / Flange Base
1
3
99434793
50 / Flat Base
1
4
99034016
60 / Flange Base
1
11
07650
60 / Flat Base
1
2
99434823
70 / Flange Base
0
1
99434816
70 / Flat Base
0
2
