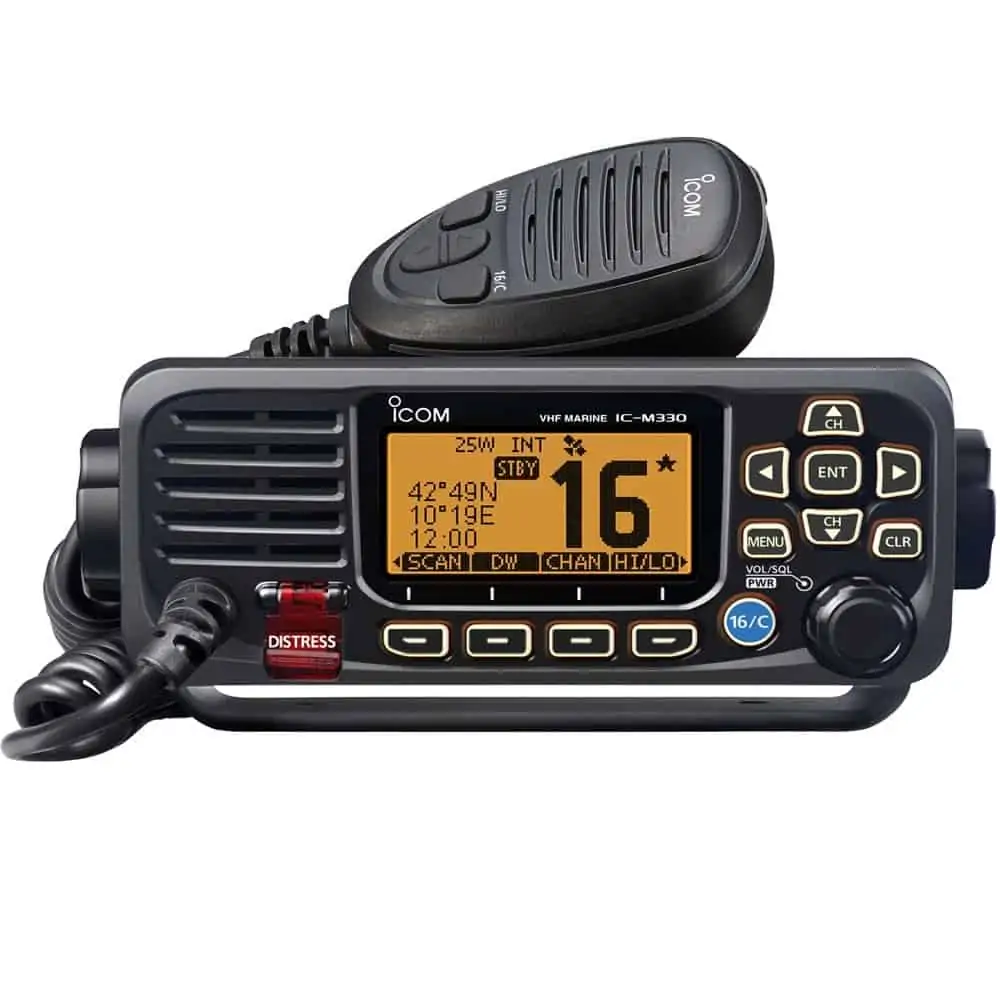

Icom M330GE Fixed VHF Radio with GPS

The engineering department at Icom have done it again and produced one of the smallest fixed VHF/DSC radios in the world. The Icom M330GE front face is so compact that it matches the size of a modern smartphone. However, despite its small size, the IC-M330GE has all the hallmarks of Icom’s stylish design, ease of use and performance.

Ultra Compact Body, Flexible Installation
The compact Icom M330GE measures only 156.5 (W) × 66.5 (H) ×110.1 (D) mm making it ideal for a cockpit where space is limited.

Intuitive User Interface
A combination of the directional keypad and soft keys provides simple, smooth operation. Most used functions are assigned to soft keys for quick one push function access.

New Speaker Delivers Dynamic, Clear Audio
A newly designed speaker delivers distortion-free clear audio even at full volume. It provides dynamic and clear audio over a wide bass and treble range.

Class-Leading Receiver Performance
The IC-M330GE’s receiver provides reliable communication in RF busy environment like a marina. (Selectivity and IMD: more than 70 dB)

Built-in Class D DSC
The radio monitors CH 70 continuously, even while you are receiving another channel. DSC functions include distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Built in GPS Receiver and External GPS Antenna
The GPS receiver provides your location, bearing and speed by using information from GPS, GLONASS and SBAS. The acquired position information can be used for DSC calls.

Also supplied with a passive receiver which can be routed and mounted outside if the internal receiver lacks signal.

*IC-M330GE is the first Icom fixed marine VHF radio that complies with the latest maritime ITU standard “ITU-R M493-14” this standard, in essence, requires an external GPS antenna. ITU-R M493-14 will be compulsory from November 2018. All maritime class D fixed radios from all manufacturers will need to comply after this date.

And More

• IPX7 waterproof (1 m depth of water for 30 minutes)
• AquaQuake™ prevents audio degradation from a water-logged speaker
• Common NMEA interface for external GPS/NAV connection
• MA-500TR Class B AIS transponder compatible
• Tag scan and favourite channel functions
• Dual/tri-watch function for monitoring CH16 and/or call channel
• Priority scan function
• Display and keypad backlighting
• External speaker connection
• 3-digit or 4-digit channel display selectable
