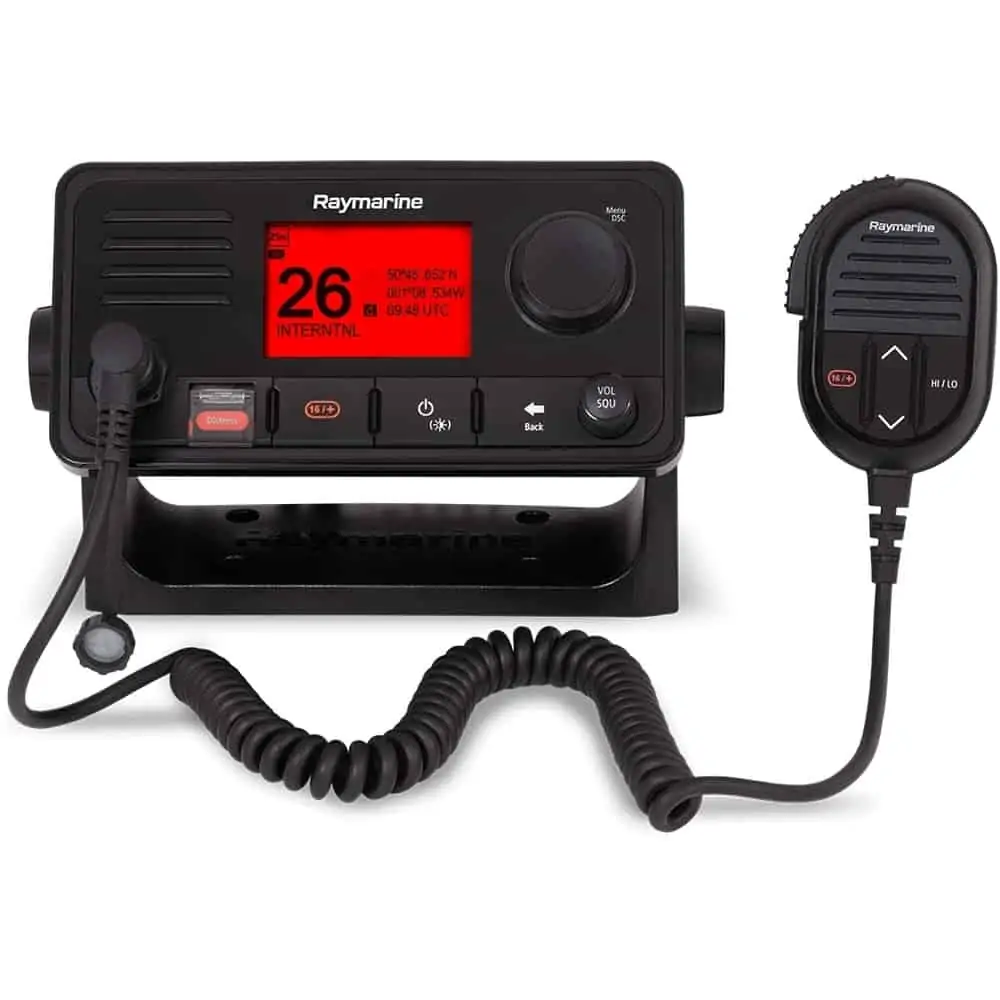

Raymarine Ray73 VHF Radio

Raymarine’s Ray73 radio is communications central for your boat with built-in VHF, AIS receiver and loudhailer capabilities. Built on full-sized marine radio chassis, the Ray73 comes with oversized controls and a big screen for easy operation offshore. The Ray73 also supports optional wired or wireless RayMic controllers for true multi-station control and intercom capability.

Product Features:

• Full-sized marine VHF with Digital Selective Calling
• Built-in AIS receiver provides target data for chartplotter, radar, and instruments
• Fog signaling and public address functions with optional hailing horn (M95435)
• Wired or wireless expansion with optional RayMic handset stations
• Built-in GPS/GNSS receiver with a connection point for an optional external antenna
• NMEA2000 and NMEA0183 networking for integration with onboard systems
• Audio output connection for optional passive remote speaker (A80542)
• Surface and trunnion mount kits included
• Styled to compliment the Axiom family of multifunction displays

Product Specifications:

• Operating Temperature: -20ºC (-4ºF) to +60ºC (140ºF)
• Storage Temperature: -25ºC (-13ºF) to +70ºC (158ºF)
• Nominal Supply Voltage: 12 V dc  (Reverse polarity and over voltage protection)
• Frequency Range: 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
• Frequency Stability: +/- 1.5 ppm

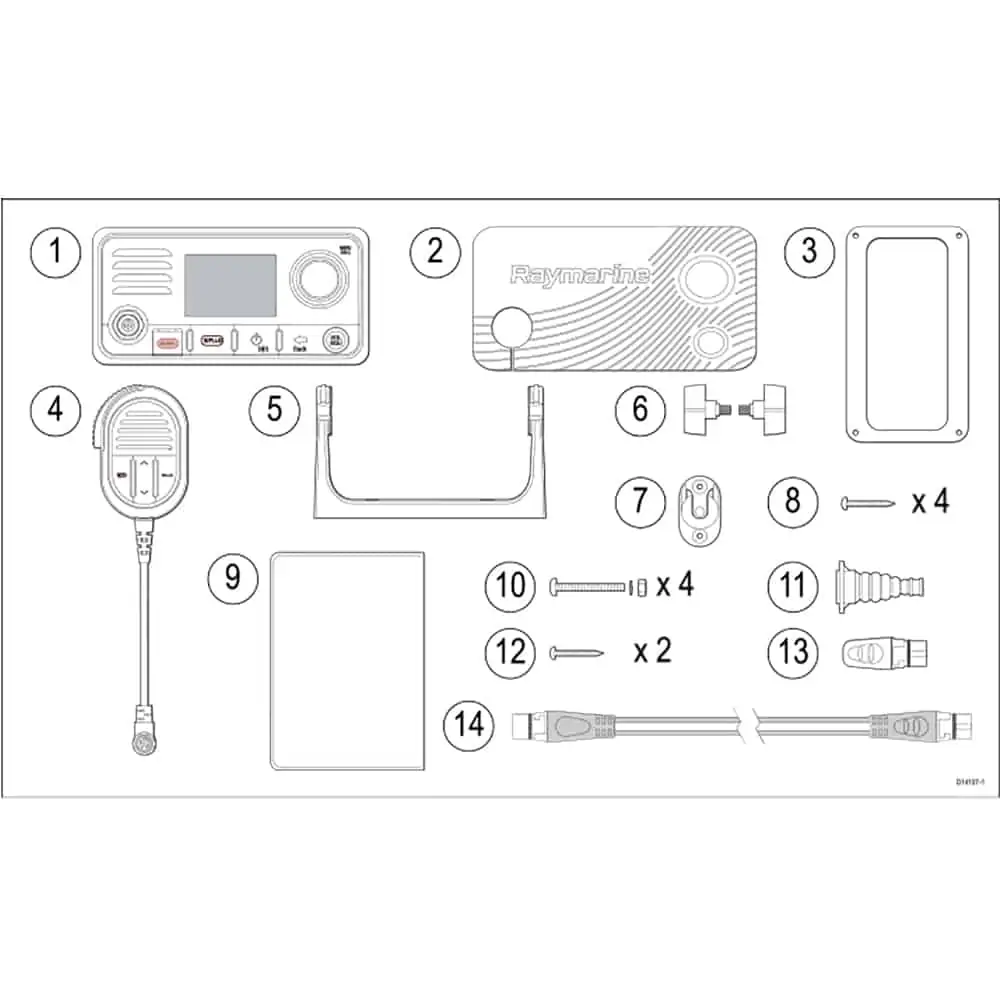

What’s In The Box?

1. Ray73 VHF DSC Radio
2. Sun cover
3. Panel mount gasket
4. Fistmic
5. Mounting bracket (Trunnion)
6. Mounting bracket knobs
7. Fistmic hook plate
8. Documentation
9. 4x M4 nuts, spring washers and M4x25 machine screws (For Panel mounting)
10. 4x M4x25 screws (For Bracket (Trunnion) mounting)
11. 2x M4x12 screws (For Fistmic hook plate mounting).
12. Protective antenna boot
13. SeaTalkng ® blanking plug
14. SeaTalkng ® 400 mm (15.7 in.) spur cable
