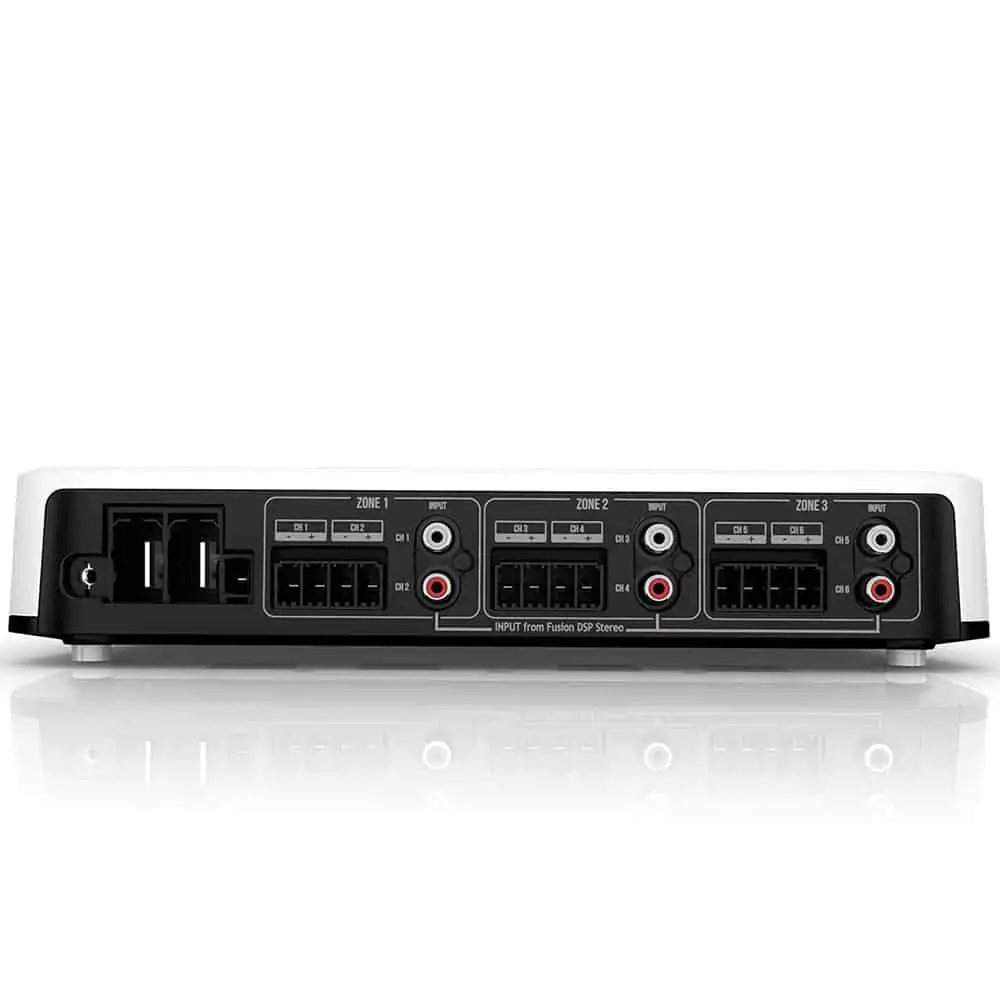

Fusion Apollo 6 Channel Amplifier
£ 679.00 £ 609.95
1 in stock
IT’S THE DIFFERENCE BETWEEN HEARING THE MUSIC AND FEELING IT
This efficient, easy-to-install amplifier works with your compatible Fusion stereo system.
Keep the music going for longer without draining your battery as quickly.
No more manual adjustments to your audio settings. The Easy Tune feature does it for you.
A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating.
These amps have less distortion and noise, so you enjoy quality audio.
Mounting brackets are included for simple installation.
Don’t worry about potential overheating damage with our ignition protection design.
POWER AND EFFICIENCY
The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The 6 channel amplifier produces 150-watt RMS per channel.
EASY TUNE FEATURE
This amplifier uses the Easy Tune feature, which automatically regulates audio settings. So, you can get the best quality sound without making manual adjustments.
LESS DISTORTION
Some amplifiers distort audio when they add power. Ours are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.
1800-WATT 6 CHANNEL AMPLIFIER
This 6 channel amplifier with 150-watt RMS per channel can power up to six pairs of speakers or four pairs of speakers and one subwoofer. It includes high-power mode adapters for simple bridging to increase power.
LED INDICATORS
Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts as well as temperature.
MOUNTING BRACKETS
Easily install the amplifier on board with the included mounting brackets.
IGNITION PROTECTED
The ignition protected design helps prevent potential damage from overheating.
CONFORMAL-COATED PCBS
The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.
2 OHM STABLE
You can connect up to two speakers per channel, increasing setup options.
FUSION TRUE-MARINE™ DESIGN
The amplifier is designed to last season after season. It has been tested to a high level of protection against salt fog, temperature, vibration and UV.
In The Box
- One Apollo 6 channel amplifier
- One mounting bracket
- One power connector
- Three speaker connectors with high power mode adaptors
- Four 8-gauge, flat head self-tapping screws
- Four 8-gauge, pan head self-tapping screws (for mounting bracket)
- Four screw covers
- Mounting template
- Installation instructions
- Important safety and product information (ISPI)
Specifications
| Physical dimensions without bracket (LxWxH) | 11.69″ x 7.06″ x 1.75″ (297 x 180 x 45 mm) |
| Physical dimensions with bracket (LxWxH) | 11.69″ x 7.06″ x 2.13″ (297 x 180 x 50 mm) |
| Weight | 5.95 lb (2.7 kg) |
| Water rating | IPX2 |
| Amplifier class | Class-D |
| CEA-2006 power rating | 150 watt RMS x 6 @ 14.4 V input – 4 ohm < 1% THD |
| Total rated power output – 2 Ohm (Watts) | 290 watt RMS x 6 @ 14.4 V input – 2 ohm < 1% THD |
| Peak power (Watts) | 580 watt RMS x 3 @ 14.4 V input – 4 ohm Bridged < 1% THD |
| Total rated power output – 4 Ohm Bridged (Watts) | 1800 watts |
| Input sensitivity | 1.3 V RMS |
| Input impedance | 22k ohm |
| Operating voltage | 10.8 V – 16 V DC |
| Current consumption (StandBy) | < 5 mA @ 14.4 V input |
| Current consumption (Idle) | < 1.32 A @ 14.4 V input |
| Current consumption (Max) | 78 A |
| Fuse rating | 125 A electronic fuse (no replacement necessary) |
| Ignition Safety Protected (SAE J1171) | Yes |
| Protection circuits | Reverse voltage Input under/over voltage Over temperature Output short circuit |
| Operating temperature range | 0° to 50° C |
| Warranty | 3 years |
