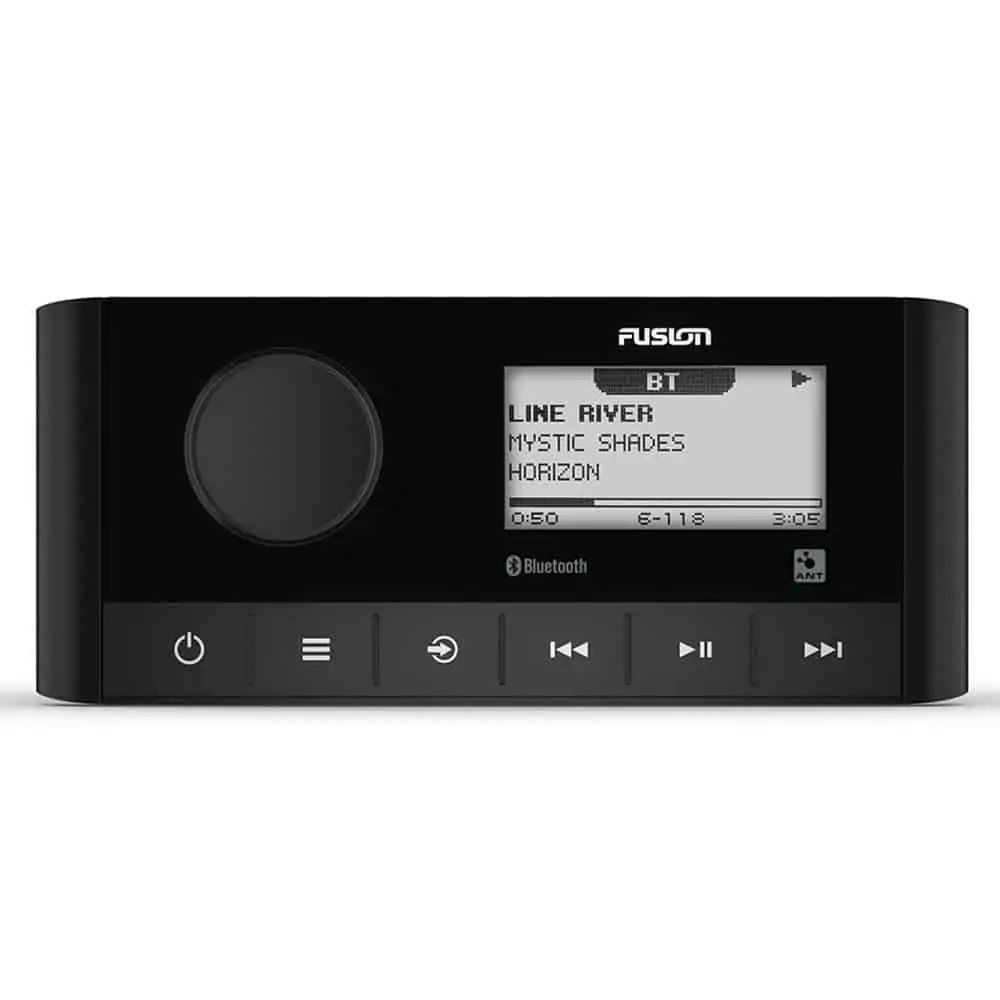

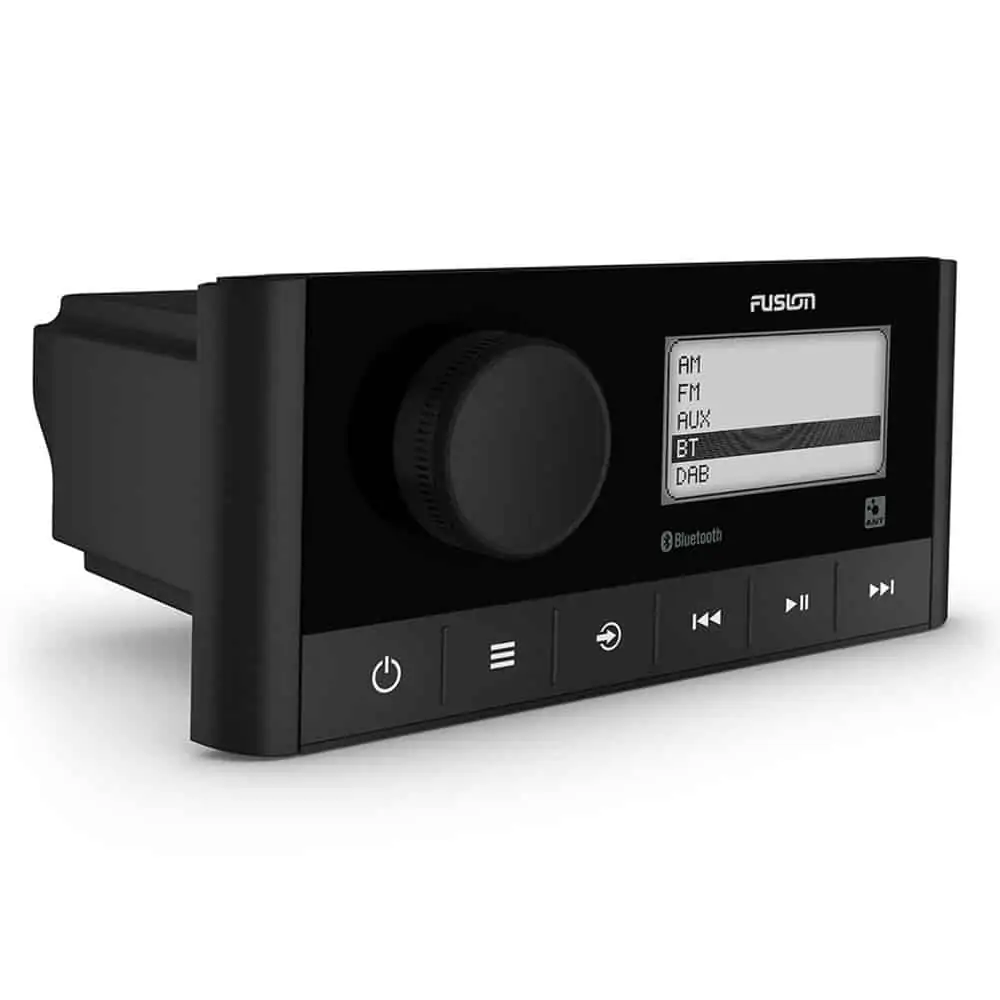

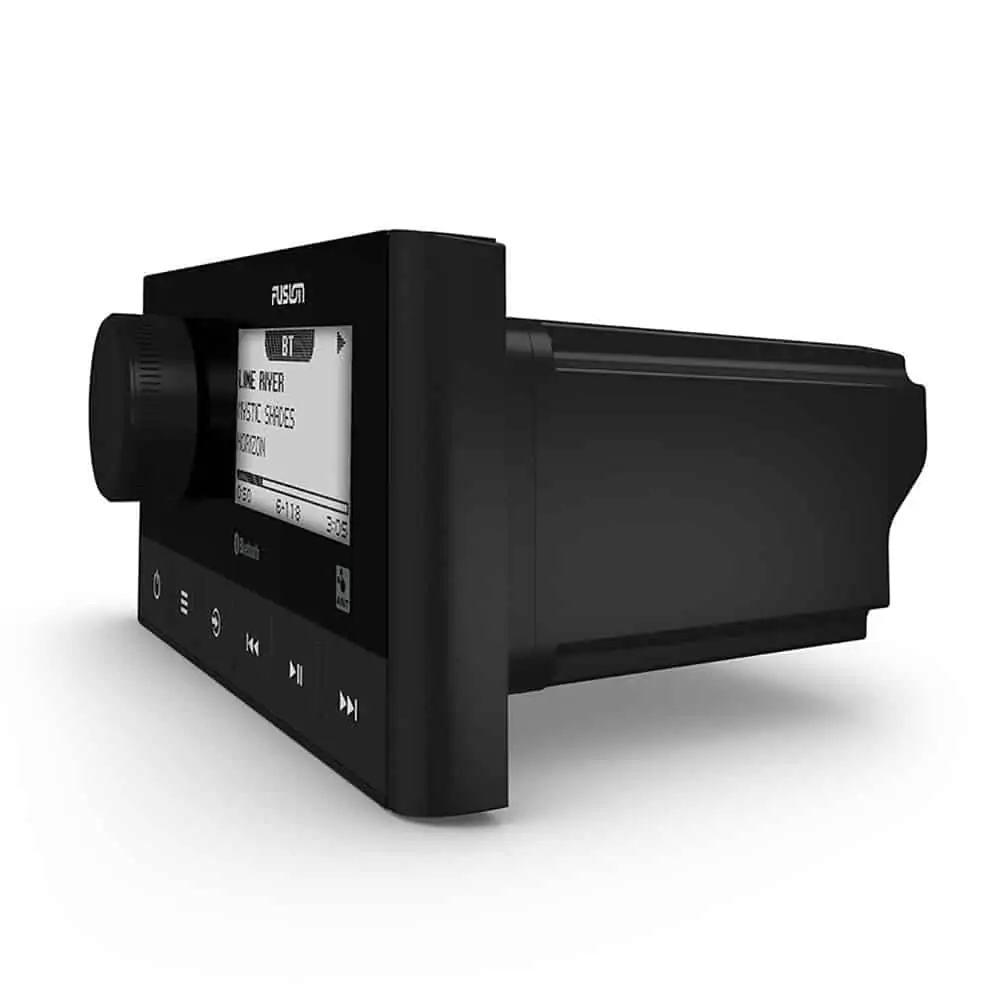

Fusion RA60 Marine Stereo With Wireless Connectivity
£259.99 £219.95
This item is currently unavailable to purchase.
Want to be notified when this product is back in stock?
MODERN, COMPACT AND ECONOMICAL
The MS-RA60 is the most economical marine stereo from Fusion yet, featuring modern aesthetics, Multi-Zone™ Technology in two zones and advanced connectivity options in a compact form factor.
Bonded LCD improves durability and protection against condensation and fogging.
Built-in Class-D amplifier delivers higher efficiency and greater output.
Enjoy convenient over-the-air software updates via Bluetooth® technology from the Fusion-Link™ app1.
Multi-Zone Technology gives you control of two separate audio zones.
Control your music from your compatible smart device or Garmin watch.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA60 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
RETROFITTABLE
The MS-RA60 is designed to fit in the MS-RA55 mounting profile, eliminating the need to alter your existing cutout, reducing complexity when upgrading your stereo system.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
MULTIPLE SOURCE OPTIONS
Take advantage of the multiple source options available, including Bluetooth technology, DAB+ radio, AM/FM radio and AUX connection.
BUILT-IN DAB TUNER
The built-in DAB tuner supports the latest DAB and DAB+ broadcasts, allowing you to enjoy high-quality digital radio streaming wherever DAB and DAB+ are supported.
In the Box
- Fusion® MS-RA60 Marine Stereo
- Mounting gasket
- Four 6-gauge, self-tapping screws
- Two screw covers
- Power and speaker wiring harness
- Auxiliary-in, line-out, and subwoofer-out wiring harnesses
- Documentation
Specifications
General |
|
| Warranty | 1 year |
| Weight | 316 g |
| Water rating | IPX6 and IPX7 (front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 0° to 50° C |
| Current (max.) | 15 A |
| Bluetooth wireless range | Up to 30 ft. (10 m) |
| ANT wireless range | Up to 10 ft. (3 m) |
| Wireless frequencies/protocols | Bluetooth 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 150 mm |
Stereo features |
|
| Display | 2.3″ perimeter bonded monochrome dot matrix LCD |
| Built-in amplifier | Class-D (minimum 4 Ohm impedance) |
| Peak power | 180 W |
| Rated power output (4 Ohm) | 22 W rms x 4 @ 14.4 V input, 4 ohm, 10 % THD |
| Fusion-Link™ control | Yes (with compatible Apple and Android devices) |
| Fusion-Link Lite control | Yes (with compatible Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| Bluetooth wireless technology | Yes |
| ANT wireless technology | Yes |
| DAB+ | Yes (DAB tuner built in) |
| Multi-language interface | Dutch/English/French/German/Italian/Spanish |
| Software updates | Over-the-air software updates via Bluetooth wireless technology using the Fusion-Link app |
| Warranty | 1 year |
Sources |
|
| Sources | AM/FM/Bluetooth/AUX x1/DAB+ (available in Europe and Australia only) |
Connectivity |
|
| Auxiliary input | One RCA input (AUX) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 x speaker connections (2 amplified zones) |
| RCA Pre-out (left, right and subwoofer) | 1 zone (requires external amplification) |
| Line out | Zone 1: L + R (requires external amplification) |
| Subwoofer out | Zone (requires external amplification) |
