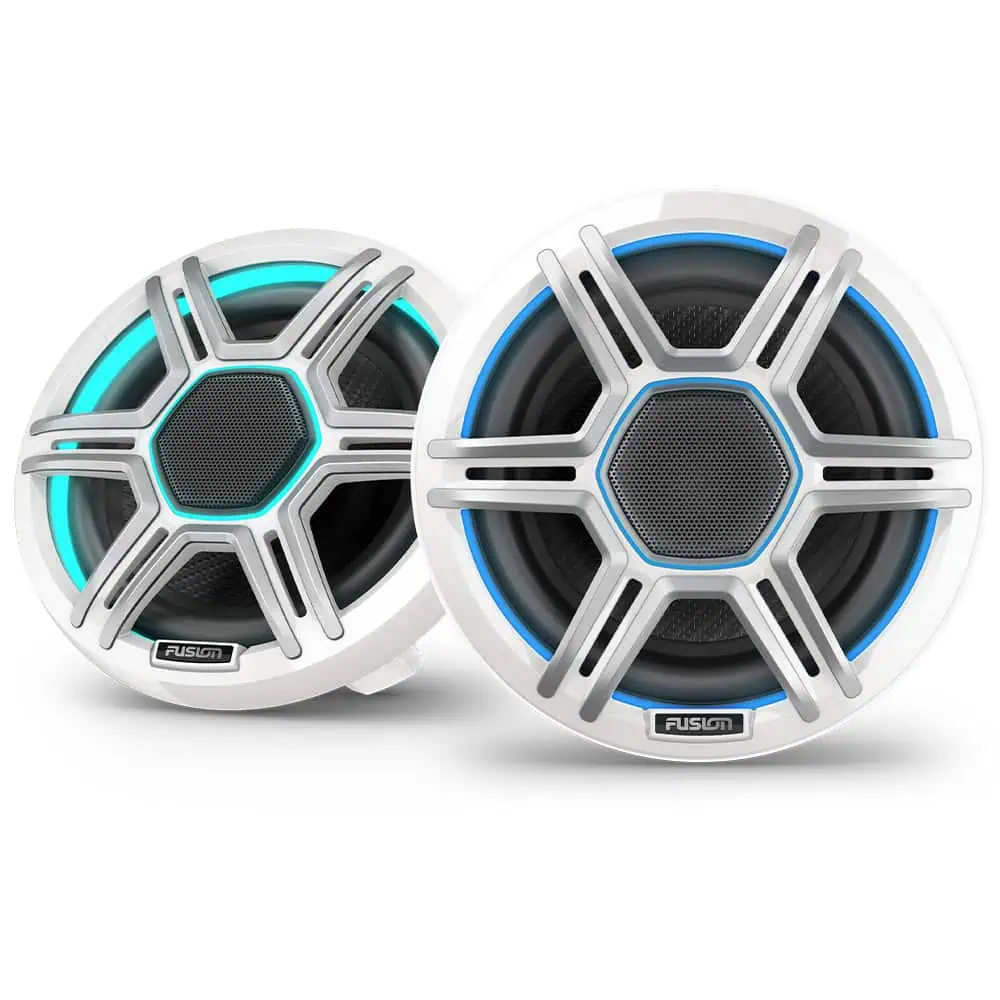

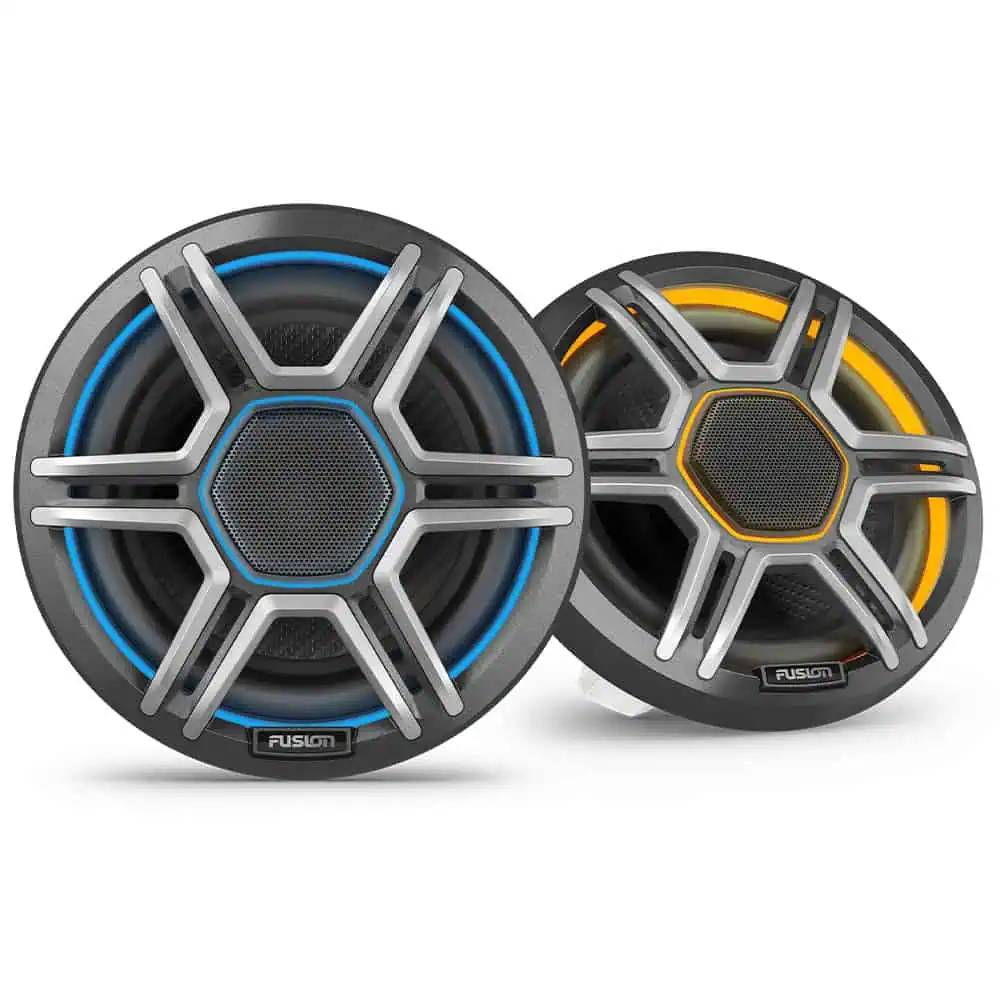

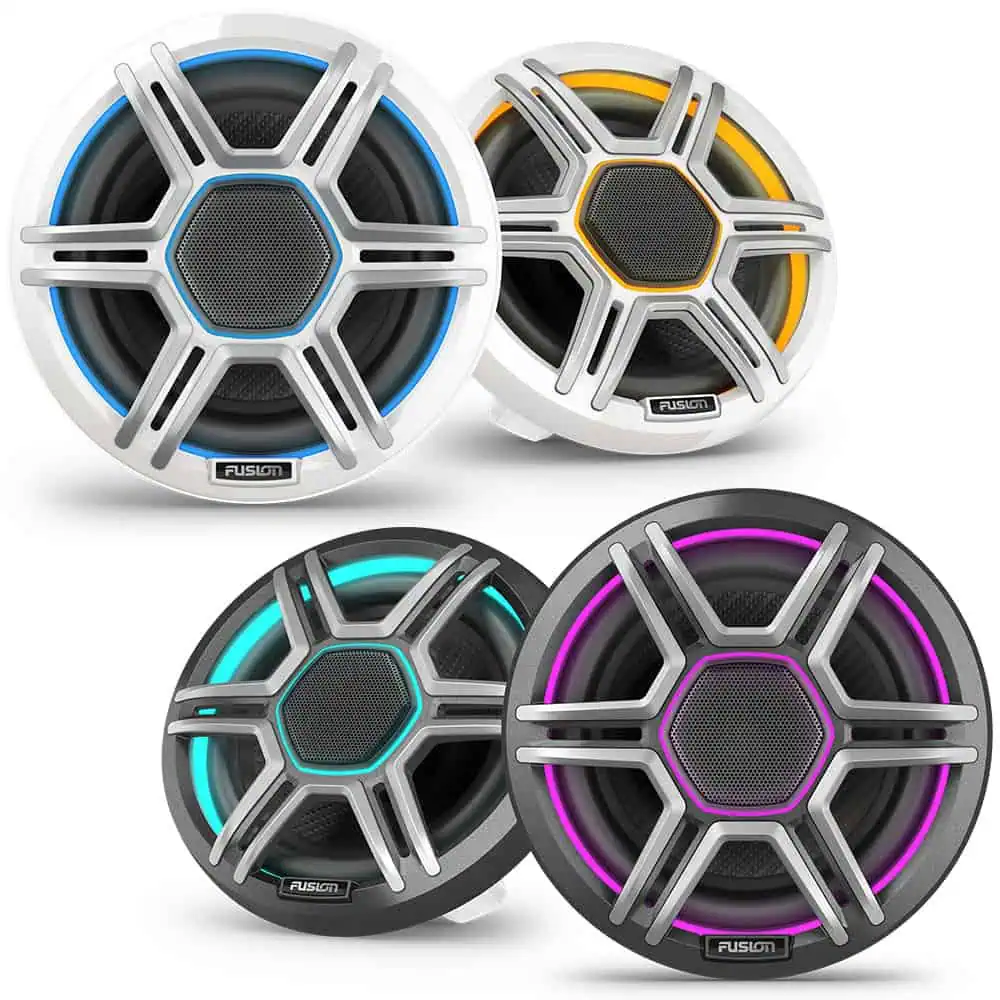

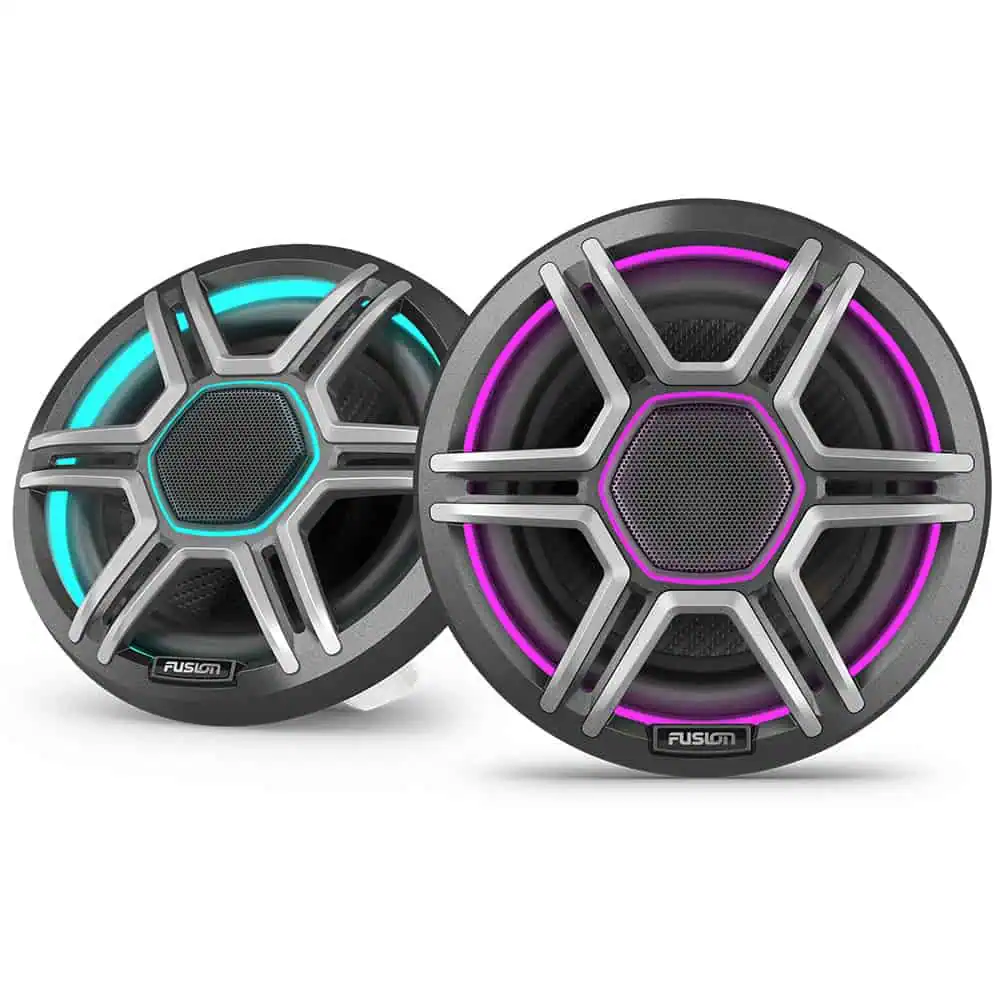

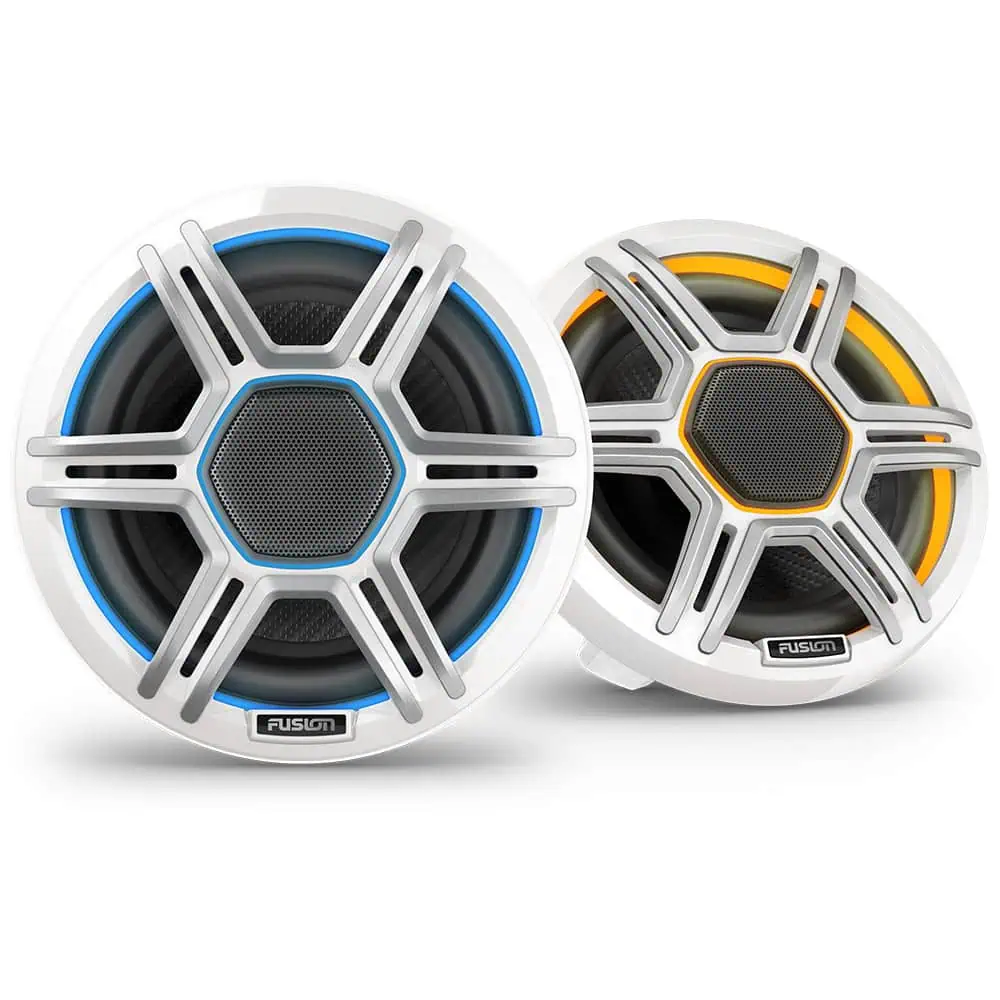

Fusion Apollo Speakers
£379.95 - £489.95
Fusion Apollo coaxial marine speakers deliver immersive, high-fidelity audio on the water and are engineered to withstand harsh marine conditions.
In the box:
Pair of speakers with sports white or sports grey grilles (based on what you select)
Mounting screws
Documentation
| General | |
| Sizes | 6.5″/7.7″/8.8″ |
| Colour | Sports White or Sports Gray |
| Physical dimensions (Diameter) | 6.5″: 6.93″ (176 mm) |
| 7.7″: 7.72″ (196 mm) | |
| 8.8″: 8.82″ (224 mm) | |
| Physical dimensions (Depth) | 6.5″: 4.06″ (103.1 mm) |
| 7.7″: 4.46″ (113.2 mm) | |
| 8.8″: 5.28″ (134.1 mm) | |
| Weight | 6.5″: 8.3 lbs (3.76 kg) |
| 7.7″: 11.3 lbs (5.12 kg) | |
| 8.8″: 14.1 lbs (6.39 kg) | |
| Water and dust rating | IP66/IP67 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5″: 75 W |
| 7.7″: 100 W | |
| 8.8″: 130 W | |
| Sensitivity (SPL @ 1 W/1 m) | 6.5″: 90 dB |
| 7.7″/8.8″: 91 dB | |
| Frequency response (+/- 3 dB) | 6.5″: 70 Hz-22 kHz |
| 7.7″: 60 Hz-22 kHz | |
| 8.8″: 50 Hz-20 kHz | |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5″: 25-150 W/Channel |
| 7.7″: 30-200 W/Channel | |
| 8.8″: 40-260 W/Channel | |
| LED lighting | yes – CRGBW (5 colors) |
| LED supply voltage | 10.8-16 VDC |
| LED Load Current @ 14.4 VDC (max) | 6.5″: 130 mA per color, per speaker |
| 7.7″: 140 mA per color, per speaker | |
| 8.8″: 180mA per color, per speaker | |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Cone material | CURV® Cone Technology with Rubber Surround |
| Tweeter type | Silk Dome |
| Tweeter size | 6.5″: 1″ (25 mm) |
| 7.7″: 1″ (25 mm) | |
| 8.8″: 1.25″ (32 mm) | |
| Warranty | 3 years |
| Electrical features | |
| Compass safe distance | 6.5″: 9.19 ft (280 cm) |
| 7.7″: 9.84 ft (300 cm) | |
| 8.8″: 10.33 ft (315 cm) | |
| Connections | |
| Speaker connections | 5.9″ (150 mm) water-resistant 2-way connector (2-pin, audio positive and negative) or Male spade connectors (0.25″ (6.3 mm) positive and 0.19″ (4.8 mm) negative) |
| LED connection | 5.9″ (150 mm) water-resistant 6-way connector (6-pin, CRGBW and ground) |
| Mounting Dimensions | |
| Mounting diameter clearance | 6.5″: 5.35″ (136 mm) |
| 7.7″: 6.14″ (156 mm) | |
| 8.8″: 7.09″ (180 mm) | |
| Mounting depth clearance | 6.5″: 3.03″ (77 mm) |
| 7.7″: 3.39″ (86 mm) | |
| 8.8″: 4.13″ (105 mm) | |
| Frontal grille protrusion | 6.5″: 1.18″ (30 mm) |
| 7.7″: 1.26″ (32 mm) | |
| 8.8″: 1.30″ (33 mm) |
Part Number
Size / Colour
Port Solent
Warehouse
99756857
6.5" / Sports White Grill
1
0
99756871
6.5" / Sports Grey Grill
1
0
99756888
7.7" / Sports White Grill
1
0
99756895
7.7" / Sports Grey Grill
1
0
99756901
8.8" / Sports White Grill
1
0
99756918
8.8" / Sports Grey Grill
1
0
