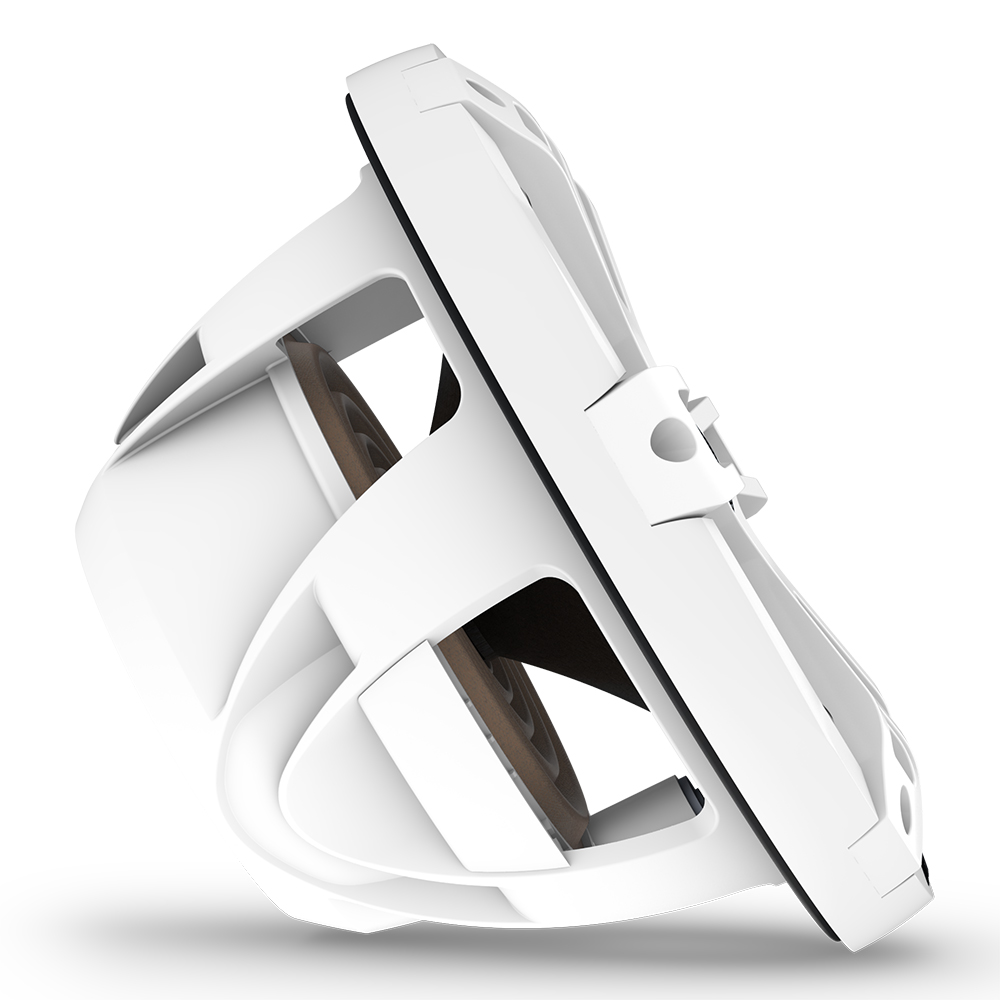

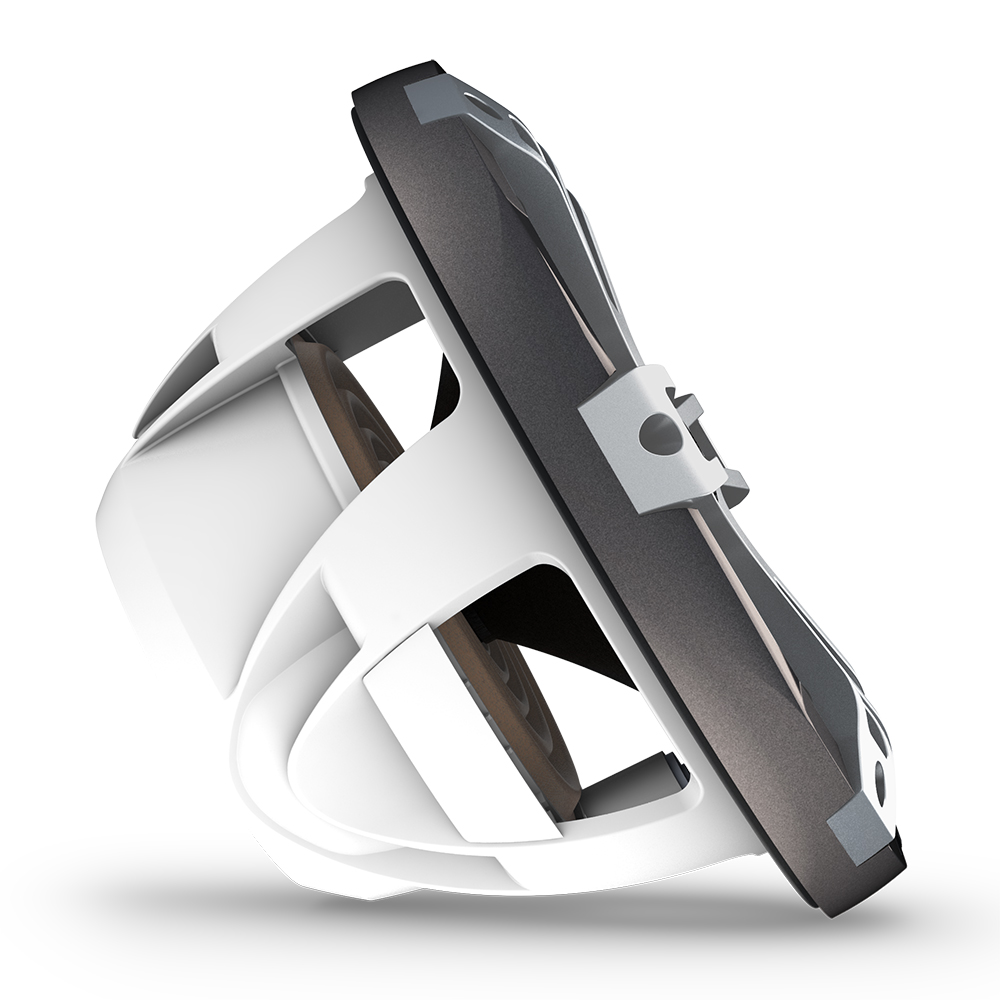

Fusion Signature Series 3i Speakers 8.8″
£359.95 - £429.95
MADE FOR LIFE ON THE WATER, JUST LIKE YOU
Bring on the elements. The Signature Series 3i coaxial speakers deliver crystal-clear audio and withstand the conditions like never before.
Crystal-clear premium sound quality is suited for the marine environment.
Water-resistant connectors provide simplified installation and superior protection.
The rigorously tested marinised design has an IP65 rating.

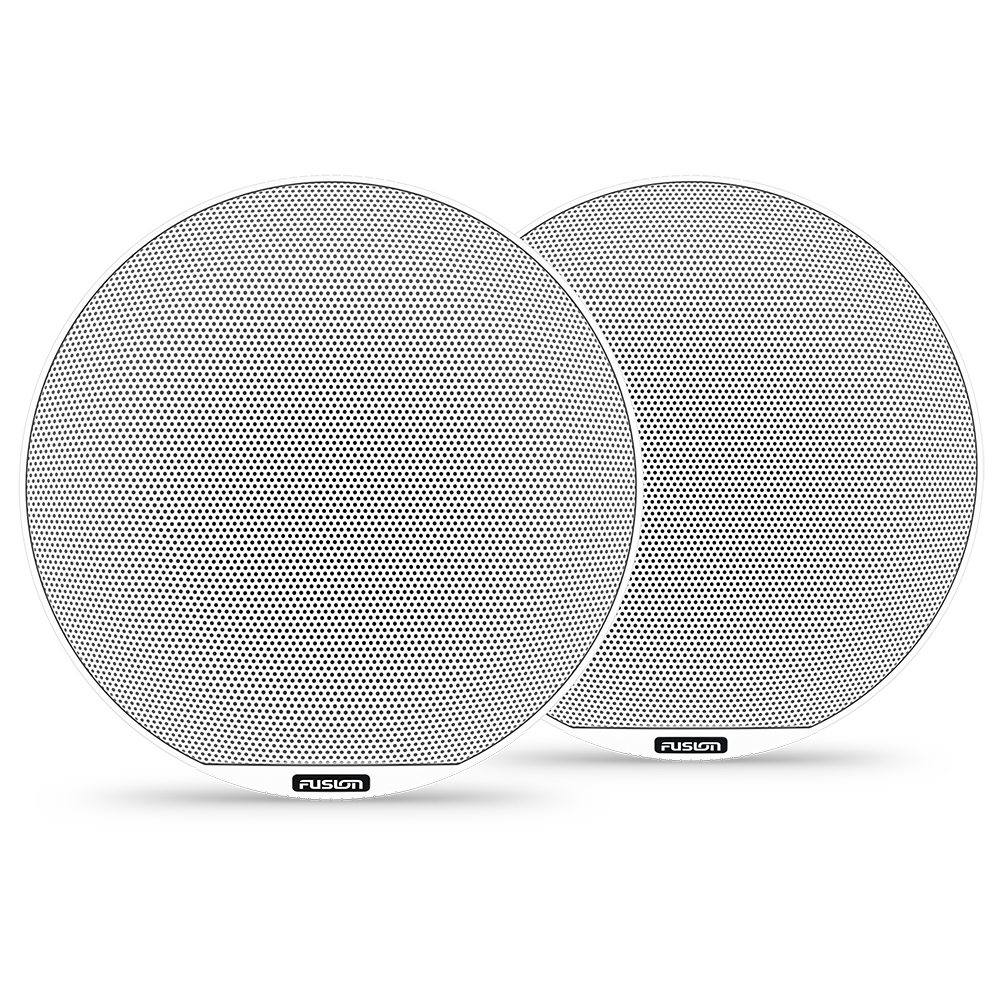

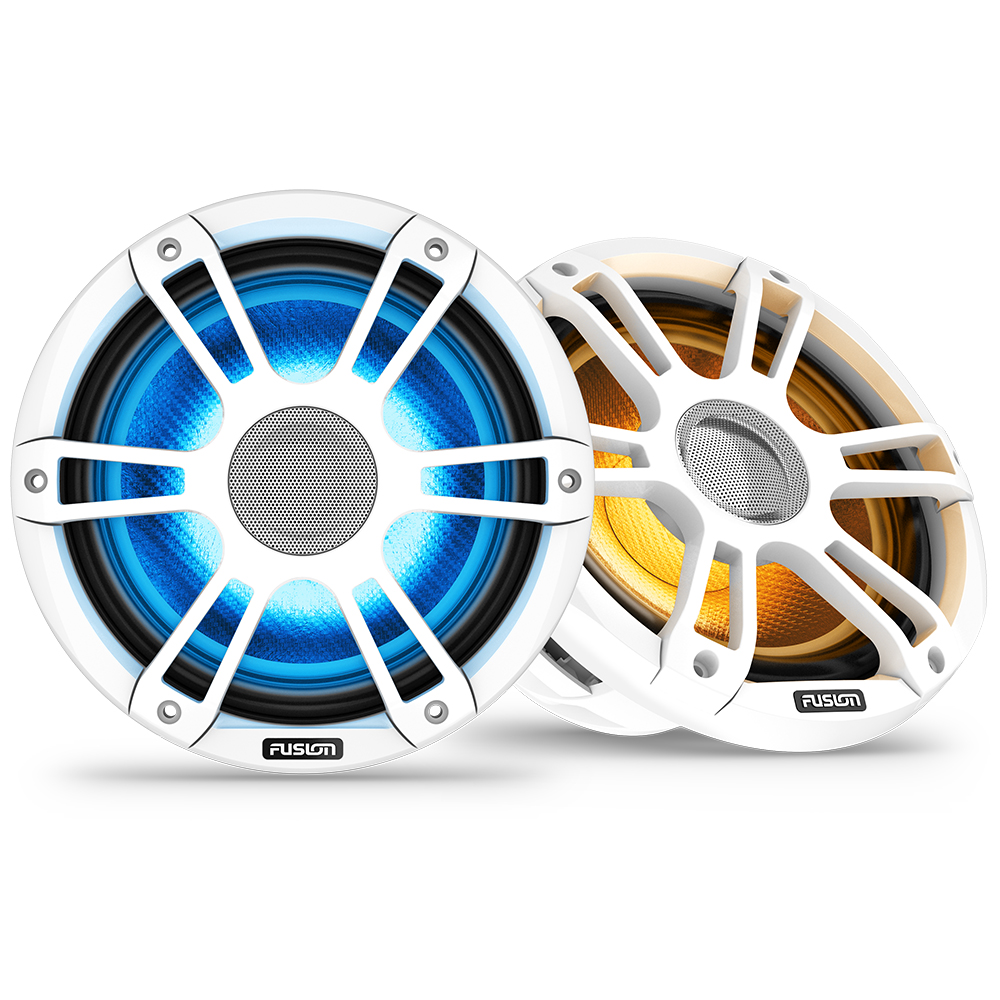

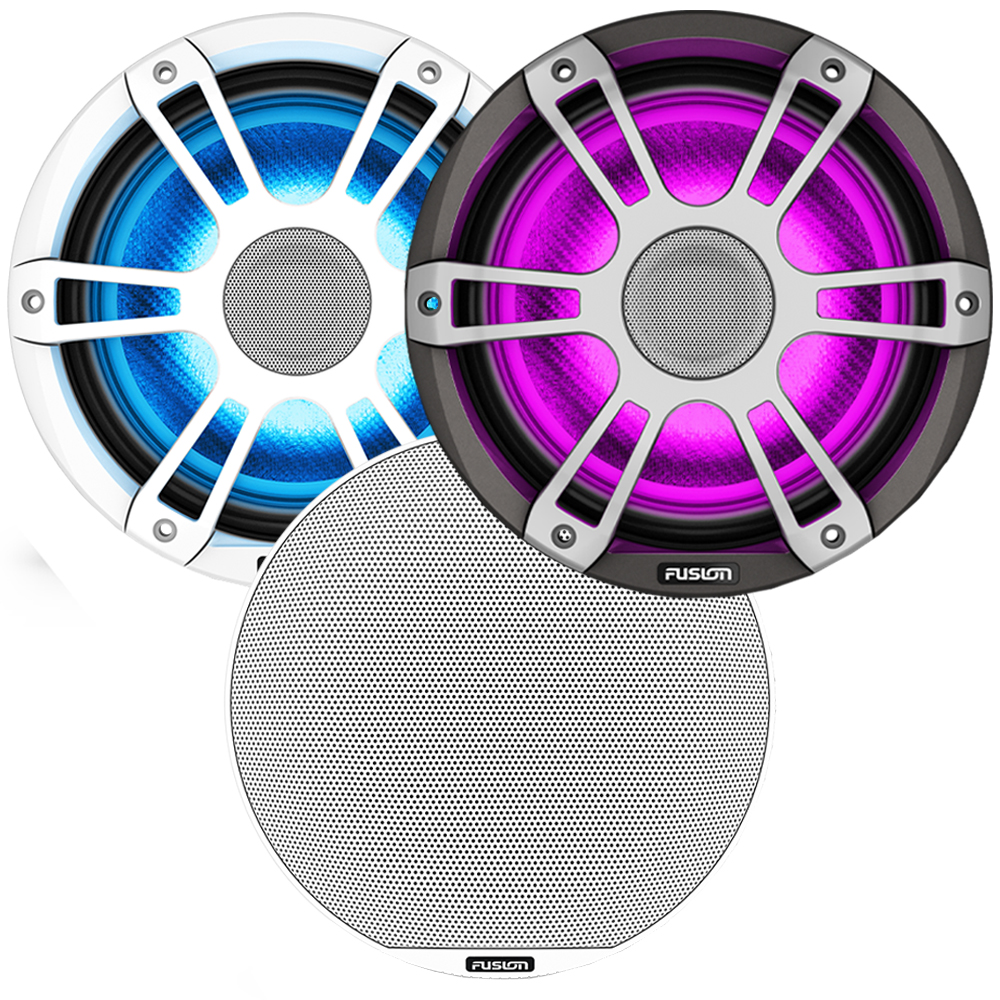

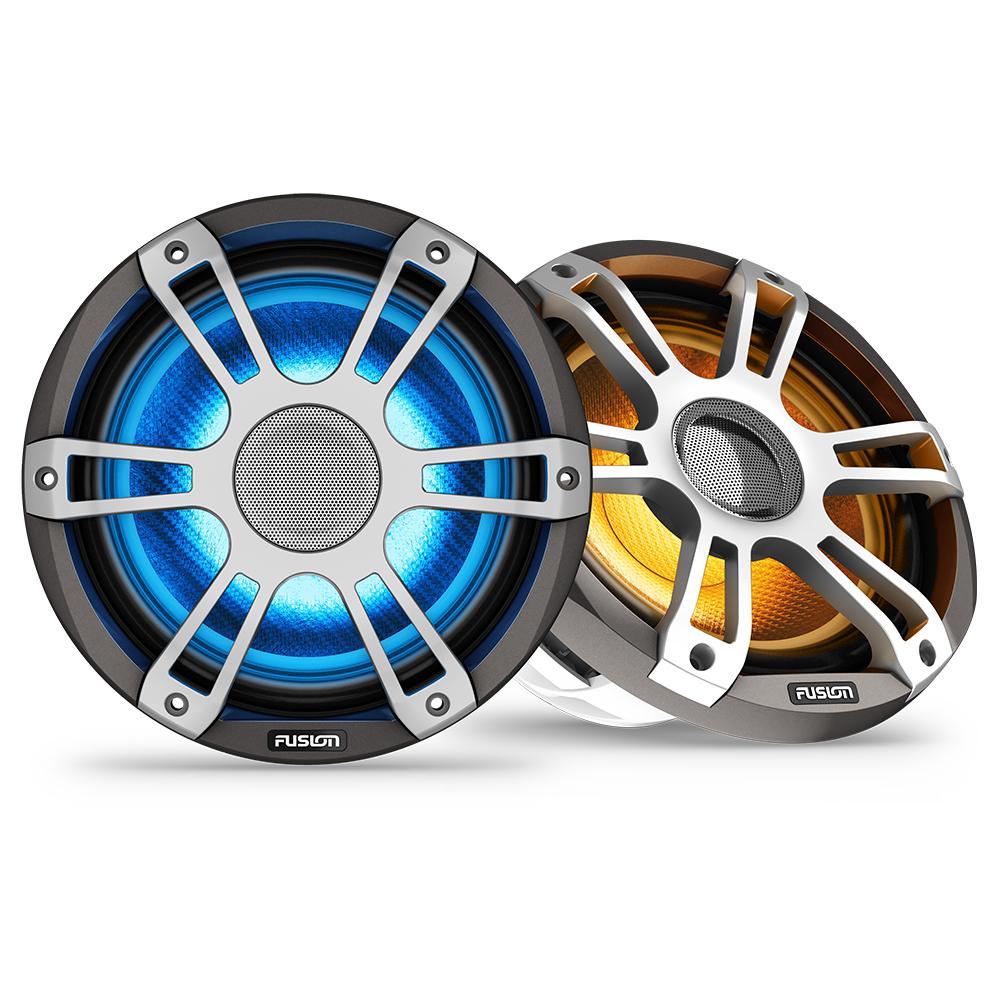

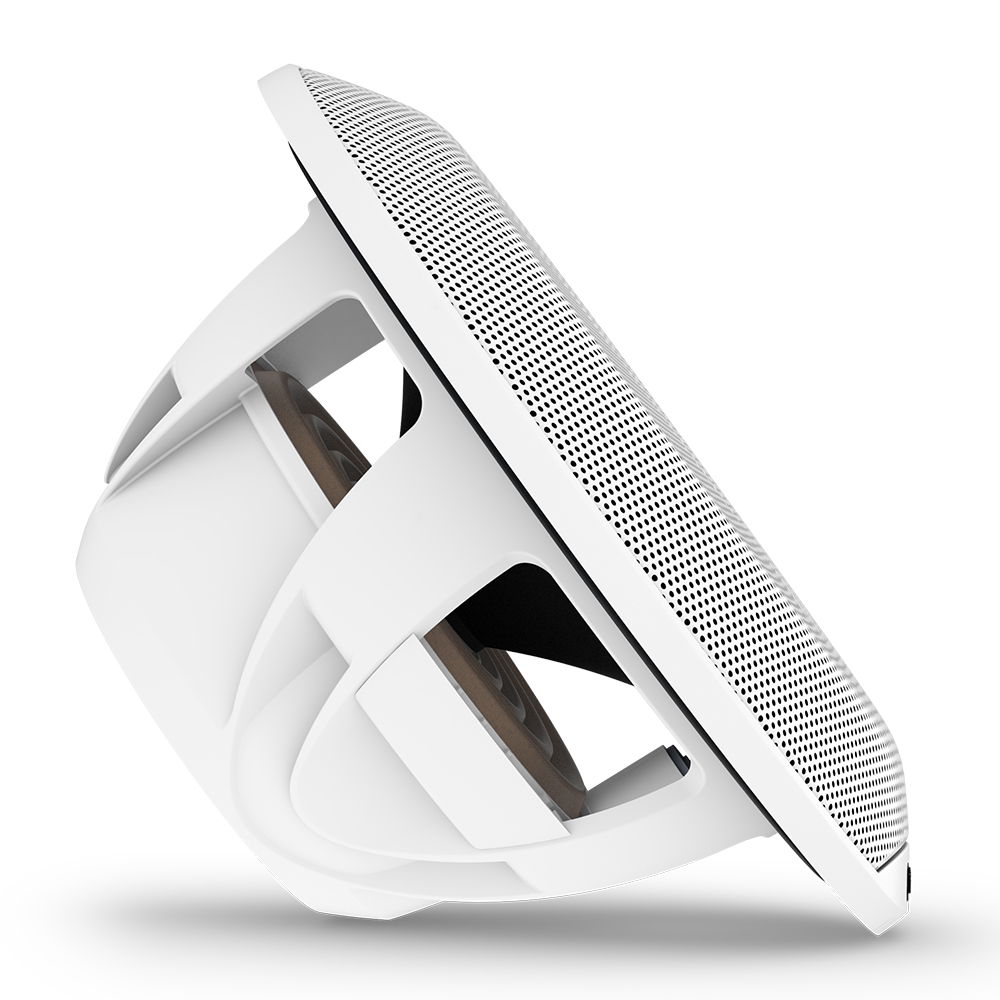

Available in classic or sports style grilles.
CRGBW LED lights set the scene on your boat.
Fusion® Signature Series 3i Marine Coaxial Speakers include a supported 3-year warranty.
MARINISED CONNECTORS
New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.
REDESIGNED GRILLE
Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.
TRUE-MARINE™ PHILOSOPHY
Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.
CURV® CONE TECHNOLOGY
A lighter and stronger woven fibre composite produces greater sound definition at a higher volume.
LED ILLUMINATION
Cool white, red, green, blue, warm white. You can choose a colour to match the mood of your music (LED versions only).
SYSTEM INTEGRATION
These speakers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion-Link™ smart-device app for setup.
In The Box
- One pair of speakers
- 12 Phillips stainless steel mounting screws, 4.2 mm x 40 mm (8 gauge x 1.6”)
- 2 water-resistant cable assemblies with 2-pin connector (5.9″ (150mm))
- 2 water-resistant cable assemblies with 6-pin connector (5.9″ (150mm), sports style with LED models only)
- Documentation
Specifications
General |
|
| Physical dimensions (diameter x depth) | 8.8″ classic speaker: 9.75″ x 5.16″ (247 x 131 mm) 8.8″ sports speaker: 8.82″ x 5.24″ (224 x 133 mm) |
| Weight (single unit) | 8.8″ classic speaker: 5.8 lbs (2.62 kg) 8.8″ CRGBW sports speaker: 5.8 lbs (2.61 kg) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Peak power (Watts) | 330 watts |
| RMS power rating (watts) | 130 watts |
| Sensitivity (1 watt @ 1 metre) | 91 dB |
| Frequency response | 50 Hz–20 kHz |
| Nominal impedance | 4 ohm |
| Recommended amplifier power (watts RMS) | 25–140 watts/channel |
| LED lighting | yes, CRGBW (sports style with LED models only) |
| LED supply voltage | 10.8–16 VDC (sports style with LED models only) |
| LED load current @14.4 VDC (max) | 300 mA (sports style with LED models only) |
| Operating temperature range | 32–122 degrees F (0–50 degrees C) |
| Voice coil diameter | 1.5″ |
| Cone material | CURV® Cone Technology with rubber surround |
| Tweeter type | Silk dome |
| Compass-safe distance | 162″ (412 cm) |
| Speaker connection | Flying lead with water-resistant 2-way connector, 5.9″ (150 mm) |
| LED connection (sports style with LED models only) | Flying lead with water-resistant 6-way connector, 5.9″ (150 mm) |
| Warranty | 3 years |
Mounting Dimensions |
|
| Mounting diameter clearance | 7.44″ (188 mm) |
| Mounting depth clearance | 4.13″ (106 mm) |
Optimum enclosure recommendations |
|
| Sealed enclosure volume (fully filled with absorption material) | 0.78 cubic ft (22 L) |
| Ported (vented) enclosure volume (lined with absorption material) | 1.23 cubic ft (35 L) |
| Port diameter | 3″ (76 mm) |
| Port length | 6.7″ (170 mm) |
