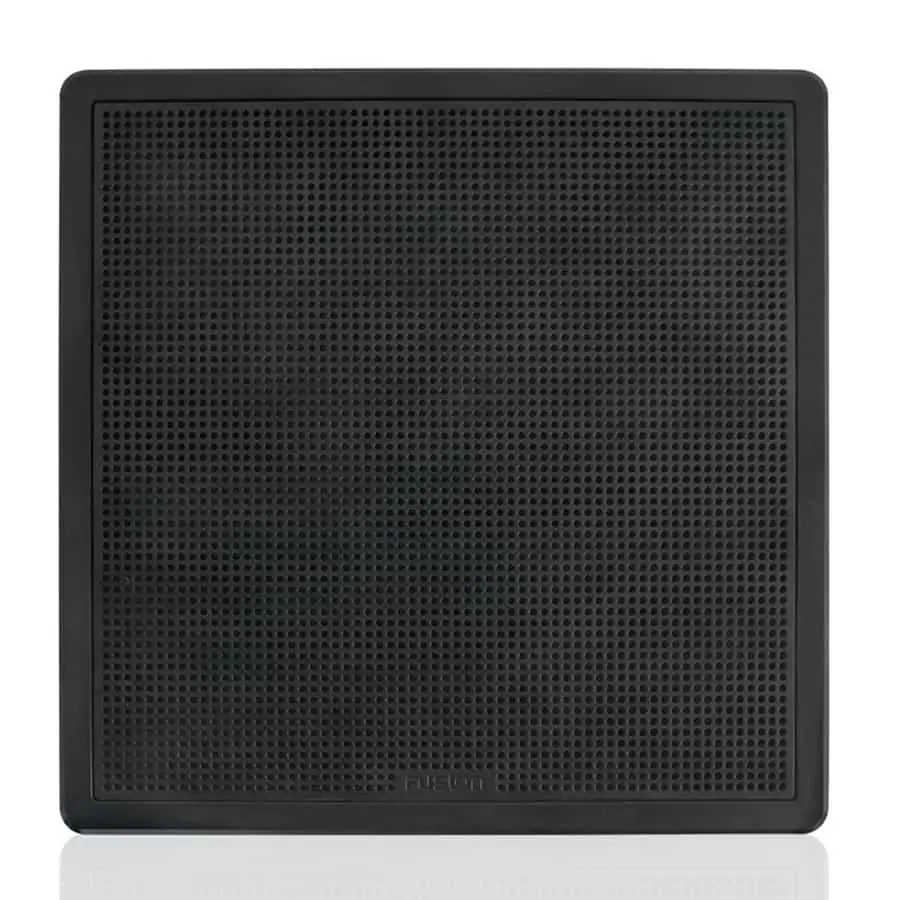

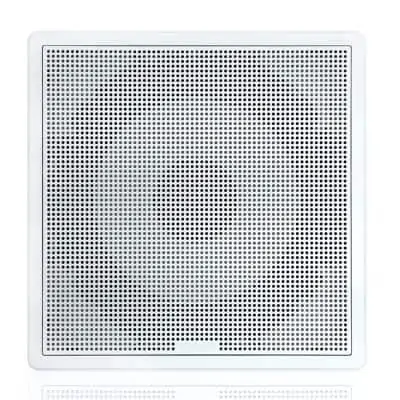

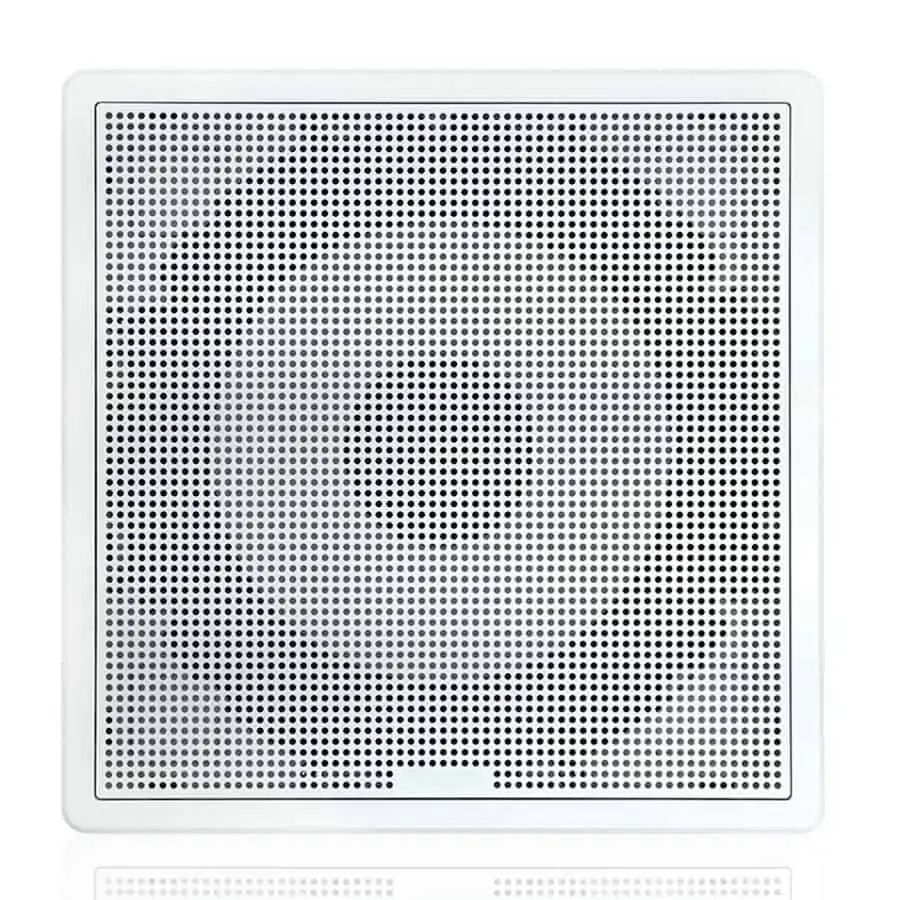

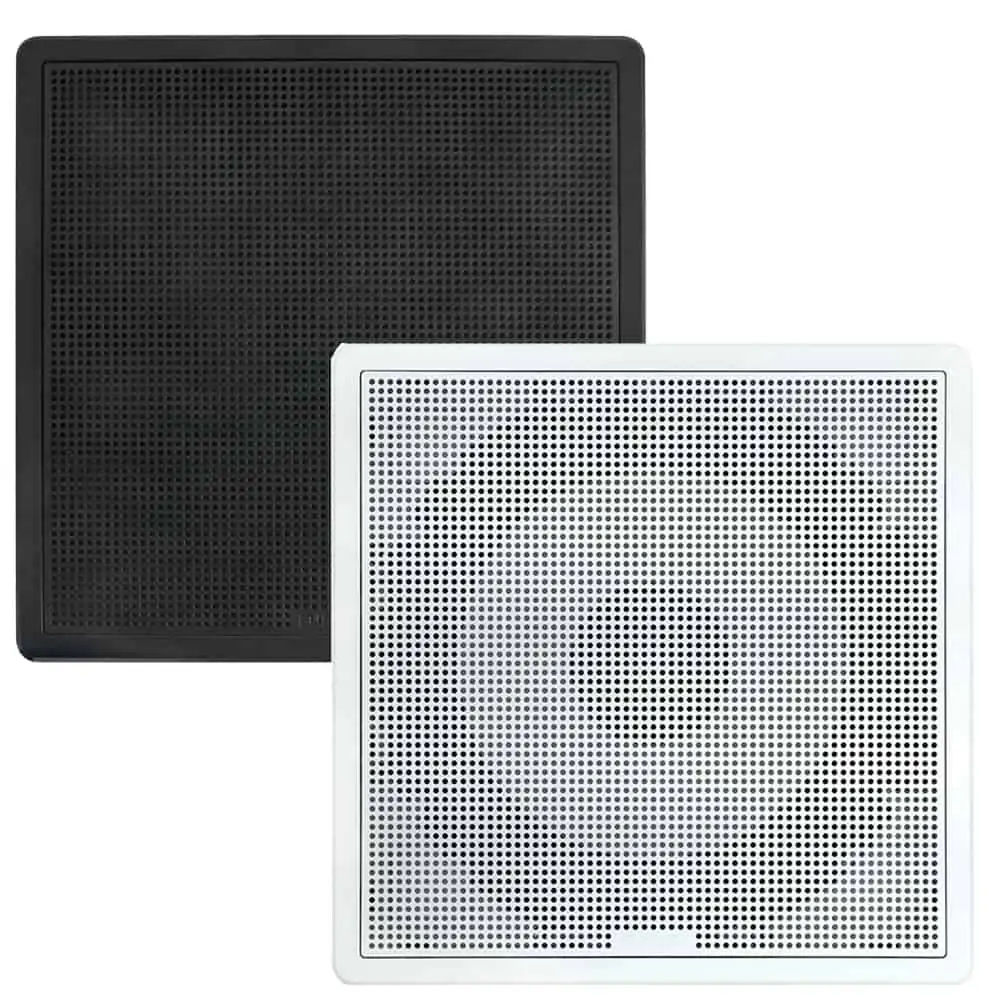

Fusion Square Flush Subwoofer 10″

Engineered for high-quality audio reproduction with innovative design aesthetics, Fusion’s new FM Series flush mount marine subwoofers are designed to deliver high-quality bass to your vessel in a sleek and minimalistic form factor to meet the latest boat design trends.

Featuring an intelligent mounting system for non-intrusive, easy installation, the FM Series subwoofers are designed to be flush mounted with a mounting flange no thicker than 3mm [1/8″] for a premium, visually-appealing, near-flat finish.

With an IP65 weatherproof rating, you can enjoy peace of mind that your FM Series subwoofers are built to last on board season after season.

Product Features:

Optimized 2.1 Configuration:

 When connected with a pair of FM Series speakers and a 2 Ohm stereo stable Fusion Multi-Zone™ stereo with DSP, you have the option of creating a 2.1 audio zone to simplify installation and reduce system cost by adding bass without the need for an external amplifier.

Quality Audio Reproduction:

Enjoy quality low frequency audio at any volume level.

Innovative Design Aesthetics:

Designed with a low profile, near-flat installation for a visually appealing finish, the FM Series will complement the aesthetics of any vessel.

Non-Intrusive Mounting System:

The FM Series uses ‘speaker legs’ that keep the subwoofer in place without the need to create any screw holes in your vessel.

True-Marine™ Designed and Engineered: Extensively tested to perform in the harsh marine environment, the FM Series carry an IP65 weatherproof rating along with True-Marine accreditation.

Designed To Comply With ISO12216:

Tested to international standards for pressure and watertightness, it recognizes the FM Series are designed and built to the highest industry standards for quality and robustness.

Product Specifications:

• Subwoofer Size: 10″
• Peak Power: 400 Watts
• RMS Power Rating: 120 Watts
• Efficiency (1W/1M): 87 dB
• Frequency Response: 30 Hz – 2 kHz
• Nominal Impedance: 4 Ohms
• Recommended Amplifier Power (RMS): 40 – 300 W/Ch
• Cone / Surround Material: Polypropylene with rubber surround
• Mounting Diameter Clearance: 269mm x 269mm [10-9/16″ x 10-9/16″]
• Mounting Depth Clearance: 140mm [5-1/2″]
• Optimum Enclosure Volume (Sealed enclosure, fully filled with absorption material): 40L
• Operating Temperature Range: 0 to 50°C (32 to 122°F)
• Storage Temperature Range: -20 to 70°C (-4 to 158°F)
• Water and Dust Resistance (IP rating): IP65
• Subwoofer Dimensions: Length x Height x Depth: 284mm x 284mm x 137mm [11-3/16″ x 11-3/16″ x 5-3/8″]
