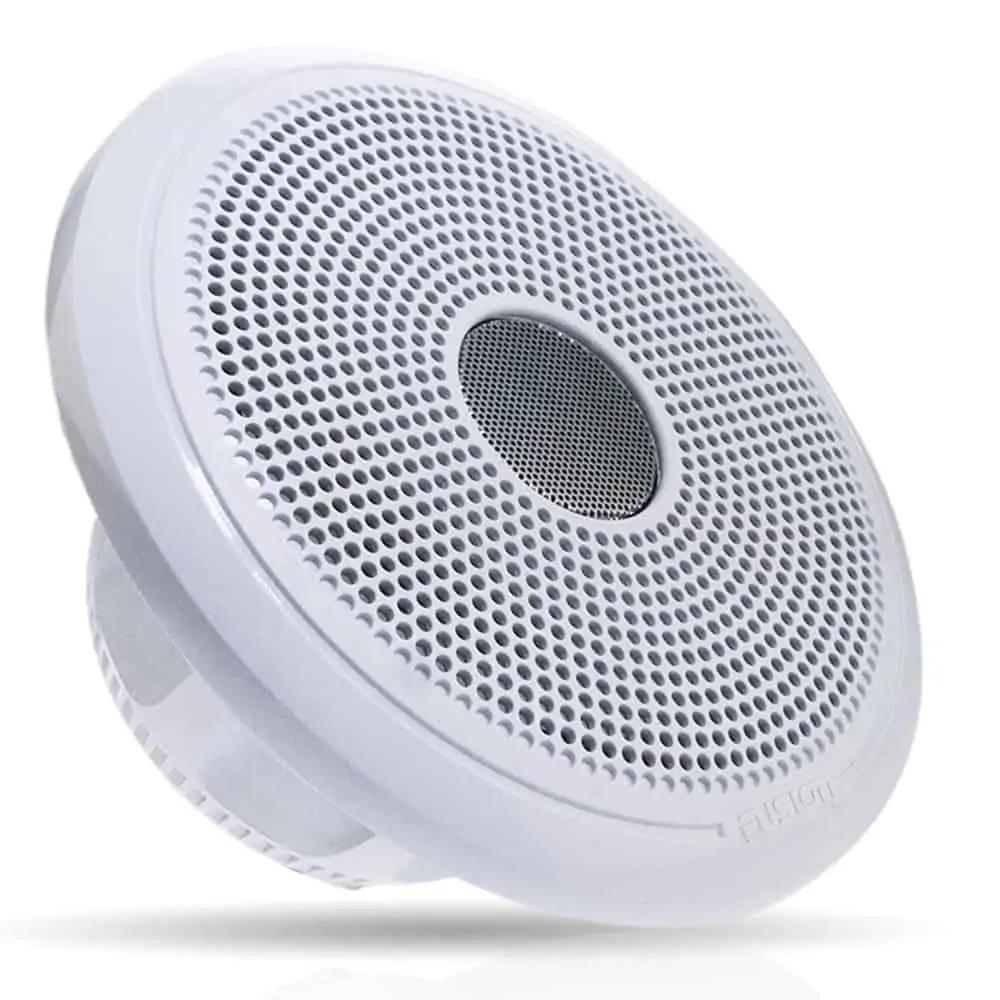

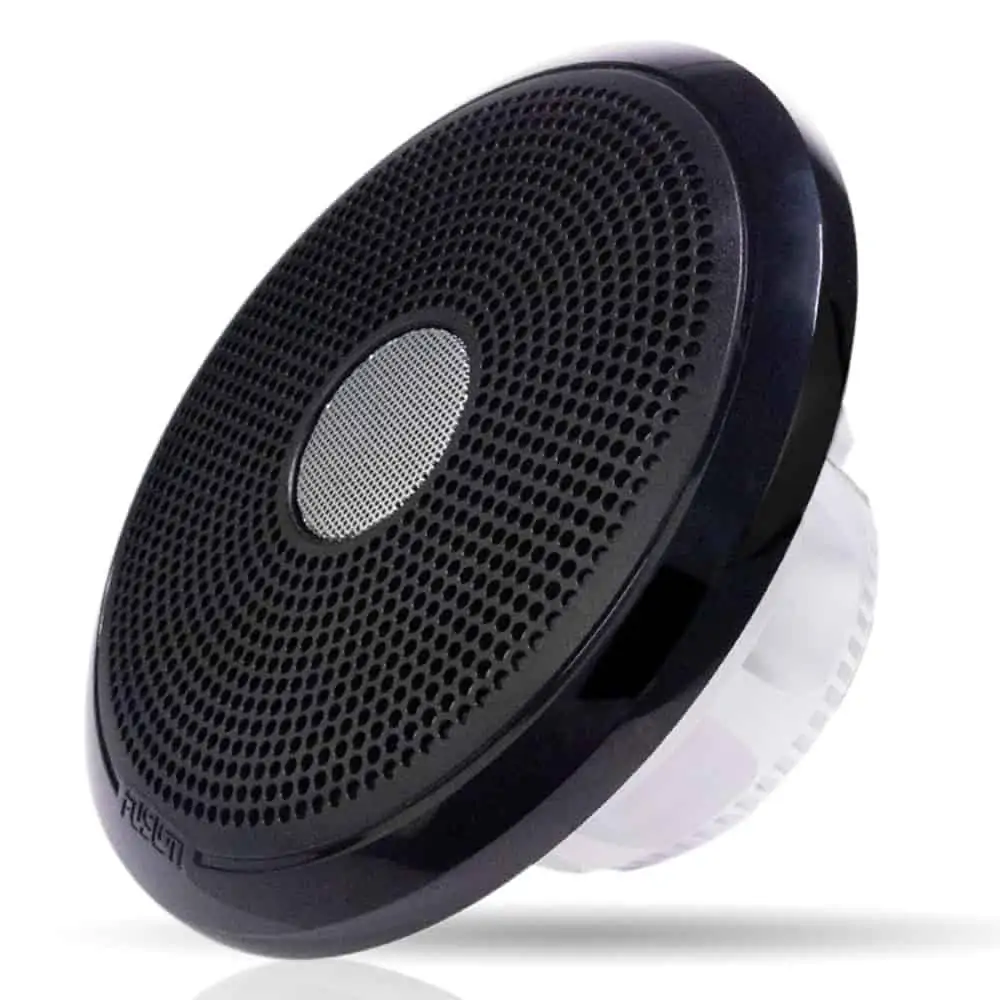

Fusion XS Series 7.7″ Speakers
£ 164.99 £ 144.95
Available to Back Order
Order and we will aim to deliver within 3-5 working days.
We will contact you if this takes longer.
EXPERIENCE SOUND AND COLOUR
Fusion’s new XS Series speakers feature their trademark quality audio reproduction and enhanced marine aesthetics at a mid-range price point.
Optimized for use in the marine environment, and built for performance, these stylish speakers are designed to produce consistently high quality audio at all volume levels, season after season.
The injection-moulded polypropylene cone provides clean, clear audio reproduction.
The aluminium dome tweeter provides a smooth upper frequency response and increased efficiency.
With an increase in real power, the voice coil provides a high-quality sound experience.
This speaker is available in 7.7″ with classic grilles.
Engineered to last season after season, the speakers include a 3-year warranty.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the XS Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The XS Series speakers incorporate high-quality materials and marine-specific design elements. This communicates not only their enhanced aesthetics but also their ability to reproduce high-performance audio while out on the water.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the XS Series speakers are designed and built to the highest industry standards for quality and robustness.
OVERHUNG VOICE COIL
The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality sound experience.
FULLY SEALED CROSSOVER COMPONENTS
Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers an improved frequency response at the crossover point for a detailed audio spectrum and a new level of acoustic performance.
CLASSIC-STYLE SPEAKERS

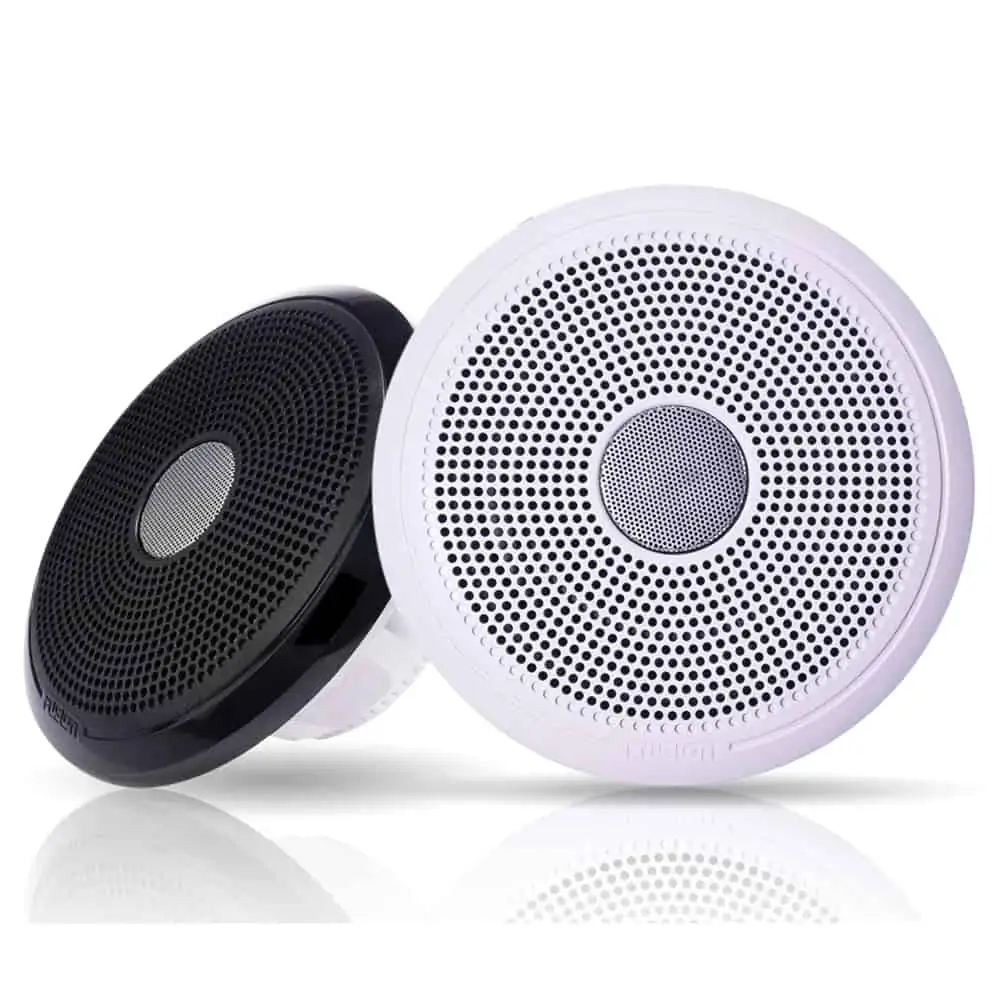

The XS Series classic-style speakers are available in 7.7″ with interchangeable classic white/classic black grilles for a timeless, elegantly styled finish to blend in with the aesthetics of your boat.
OPEN BASKET CONSTRUCTION
The optimised open back design allows for extended power handling and versatile mounting options with reduced mounting depth.
ALUMINIUM DOME TWEETER
The aluminium dome tweeter provides a smooth upper frequency response and increased efficiency, which delivers crystal-clear music reproduction.
In the Box
- One pair of XS-F77CWB speakers
- 12 Phillips stainless steel mounting screws (4.2 mm x 25.4 mm / 8 gauge x 1”)
- Speaker grilles (1 classic white/ 1 classic black)
- Documentation
Specifications
General |
|
| Physical dimensions (Diameter x Depth) | 7.72″ x 3.70″ (196 x 94 mm) |
| Water and dust rating | IP65 |
| Configuration | Coaxial |
| Speaker size | 7.7″ |
| Peak power (Watts) | 240 W |
| RMS power (Watts) | 60 W |
| Sensitivity (1 W / 1 m) | 92 dB |
| Frequency response | 70 Hz-18 kHz |
| Nominal impedance | 4 ohms |
| Recommended amplifier power (RMS) | 25-200 W/Ch |
| LED lighting | No |
| LED supply voltage | N/A |
| LED load current @ 14.4 VDC | N/A |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Voice coil diameter | 1.18″ |
| Operating temperature range | Polypropylene cone with cloth surround |
| Tweeter type | Aluminum dome |
| Compass-safe distance | 157.5″ (400 cm) |
| Warranty | 3 years |
Mounting dimensions |
|
| Mounting diameter clearance | 6.38″ (162 mm) |
| Mounting depth clearance | 3.03″ (77 mm) |
Optimum enclosure recommendations |
|
| Sealed enclosure volume1 | 0.35 cubic ft (10 L) |
