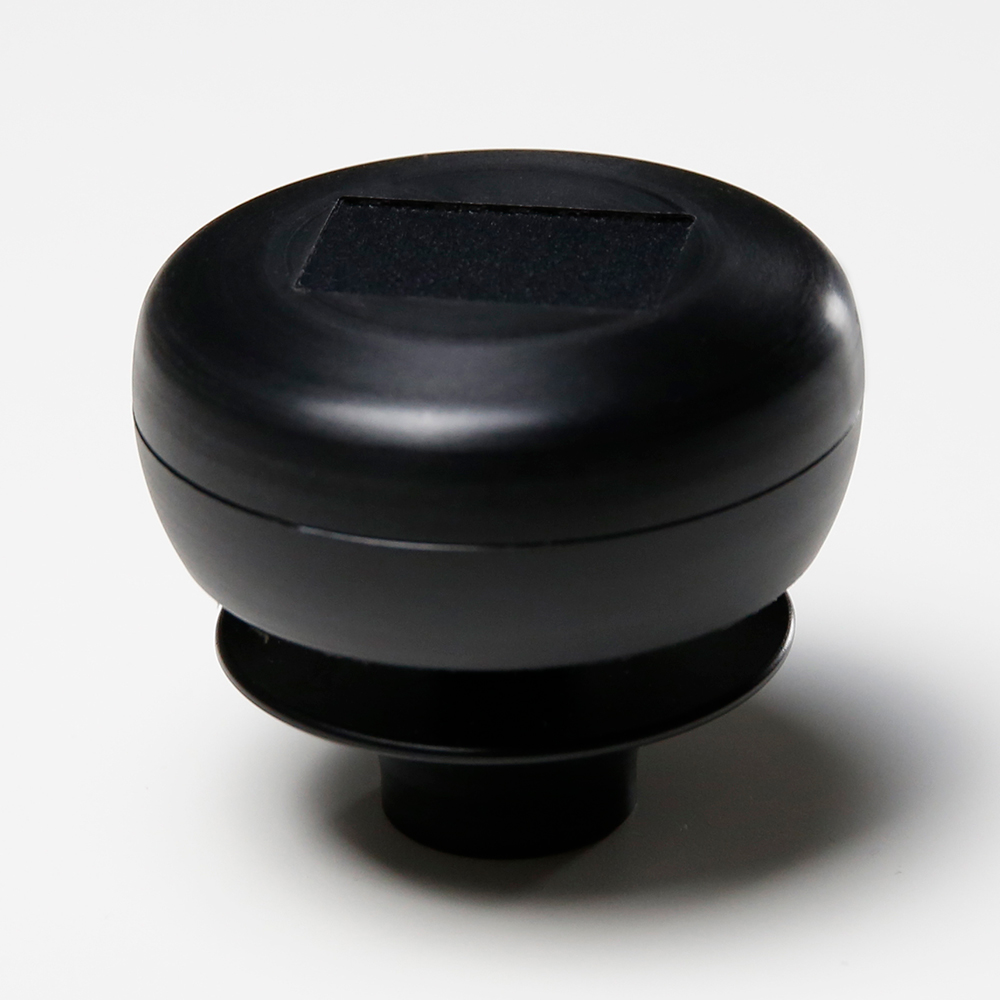

Calypso Ultrasonic Portable Solar Powered Wind Meter – Bluetooth

The Calypso Ultrasonic Portable anemometer is a solar powered wind speed and wind direction meter. Measuring only 70mm in diameter it requires no wiring on installation and communicates by Bluetooth directly to App or into an NMEA network via the optional Calypso NMEA Gateway.

Bluetooth, Solar Powered, pocket-sized ULTRASONIC anemometer.

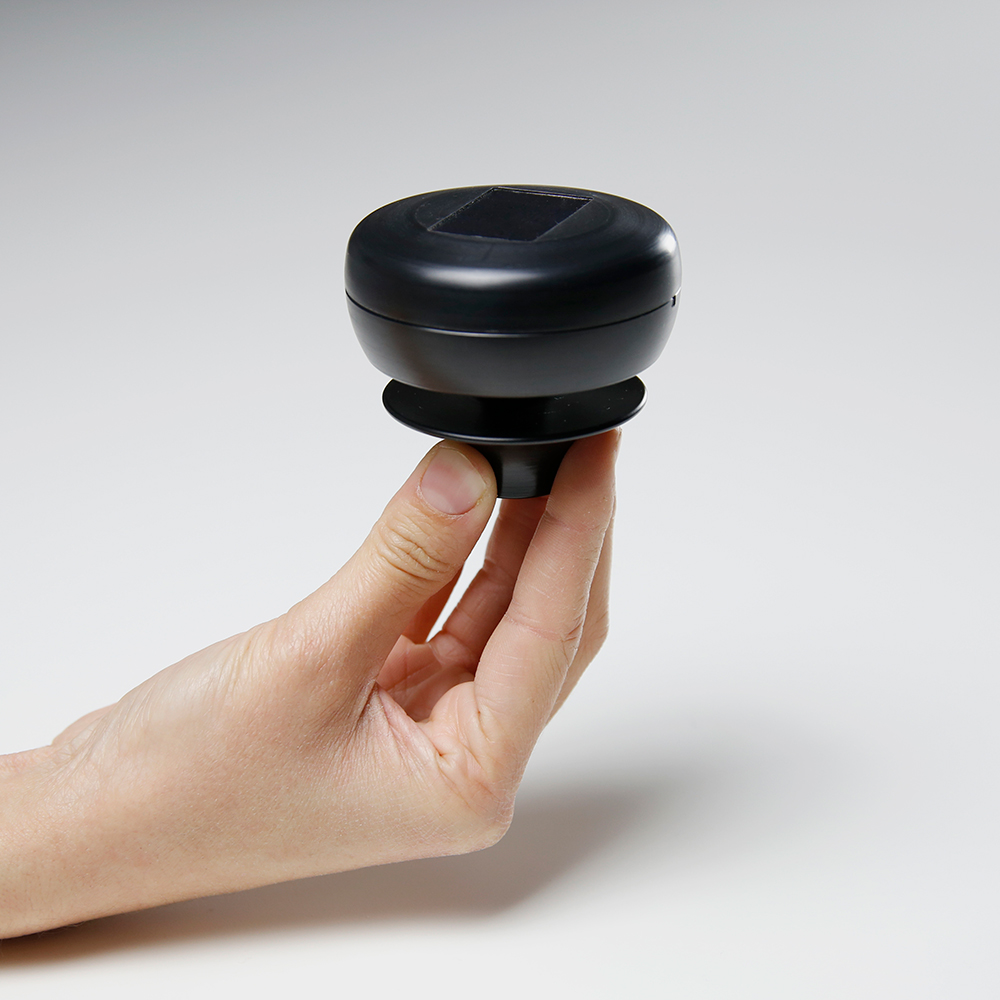

Small and robust, get instant wind speed and direction….or track it!. Built with ULTRASONIC sensors, with no moving parts to make it robust and dependable, the Ultrasonic Portable is a wind meter that measures both speed and direction, allowing data logging via a free app. Thanks to its small size and lightweight, the Ultrasonic Portable wind meter can be used both as a handheld and/or as a stand-alone wind meter what makes it a versatile instrument of great value on a wide range of industries and applications.

Easy to mount, easy to use.

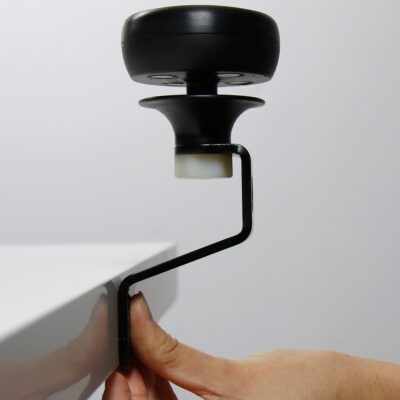

Just unbox it, screw it to your favourite setup or to one of our mounting accessories, download the app….and ready! Its simplicity has encouraged many users to find its own way of using it and our “open protocol” policy has definitely helped. Many app developers and OEMs have made the Ultrasonic portable compatible: weather apps, ballistics, marine etc…one piece of hardware but many different apps/displays!.

ZERO cable tolerance : Wireless and Self Powered.

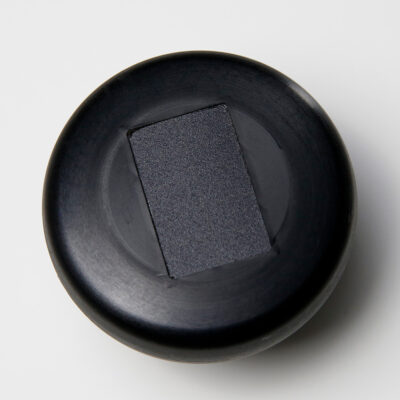

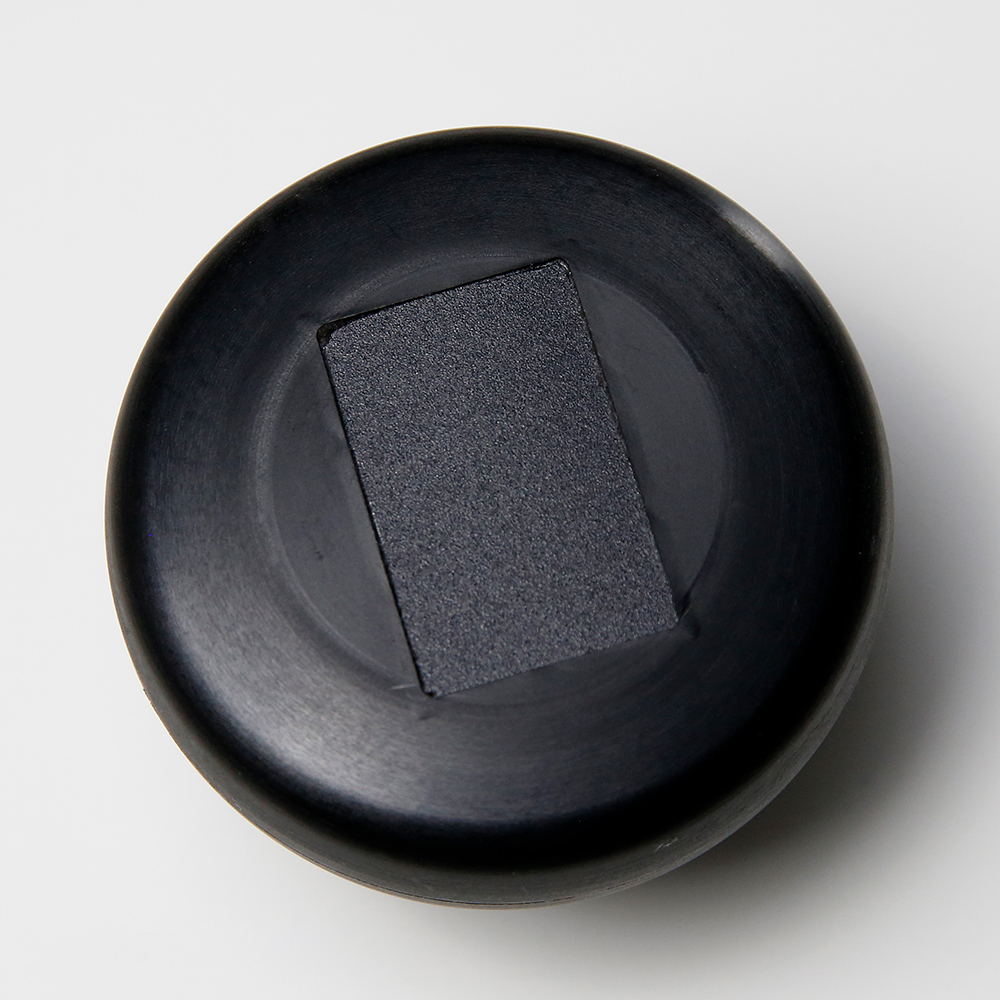

No power cords: its solar cell makes the Ultrasonic Portable self powered: Up to 30 days of continuous operation in the dark and over a year in sleep mode.
No data wires, but connectable to your network: its bluetooth connection avoids the hassle of wiring it to a display. Still, if you want to connect the Ultrasonic Portable to a display or network, you can use one of our gateways: the optional NMEA Connect Plus gets the Portable Bluetooth signal and converts it to a wired or NMEA0183 or NMEA2000 signal. It also relays the Bluetooth signal and casts NMEA0183 data via WiFi.

Nominated for the Dame Design Awards 2017

The Dame Awards recognize the best designed products at the Metstrade Show. Its unique relevance in the global marine marketplace emphasizes innovation and environmental impact among others.

Specifications

Material: Machined engineering plastic (black)

Dimensions:
Diameter : 70 mm (2.76 in.)
Height : 57 mm (2.24 in.)
Weight : 145 grams (5.15 oz.)

Wind Speed:
Range : 1-25 m/s (2.24 – 56 mph)
Accuracy : ±0.1 m/s at 10 m/s ( 0.22 mph at 22.40 mph)

Wind Direction:
Range : 0-359º
Accuracy : ± 1
Wind Information
Apparent and real wind speed & direction via App

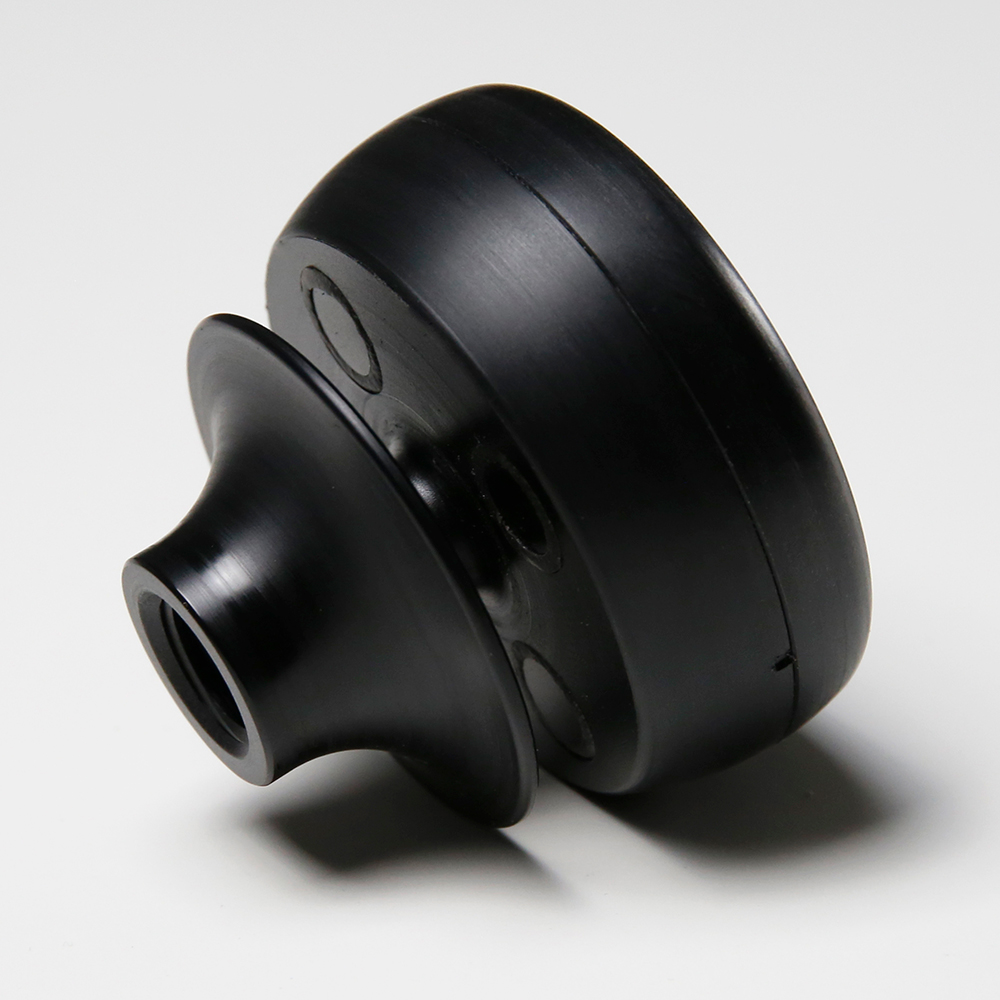

Sensors: Ultrasonic transducers ( 4x)

Sample rate: 1 Hz

Power: Solar panel, internal battery, automatic power management

Battery runtime: Up to 60 days while measuring

Data Output: Bluetooth 5.1. NMEA 0183- NMEA 2000 if used with NCP

Bluetooth Range: up to 30 m ( 98 ft.)

Firmware:Upgradable via Bluetooth

IP Code: IPX8 protection grade

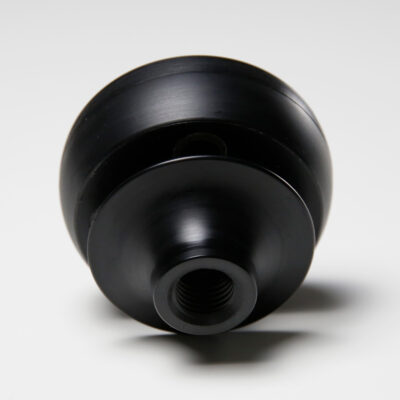

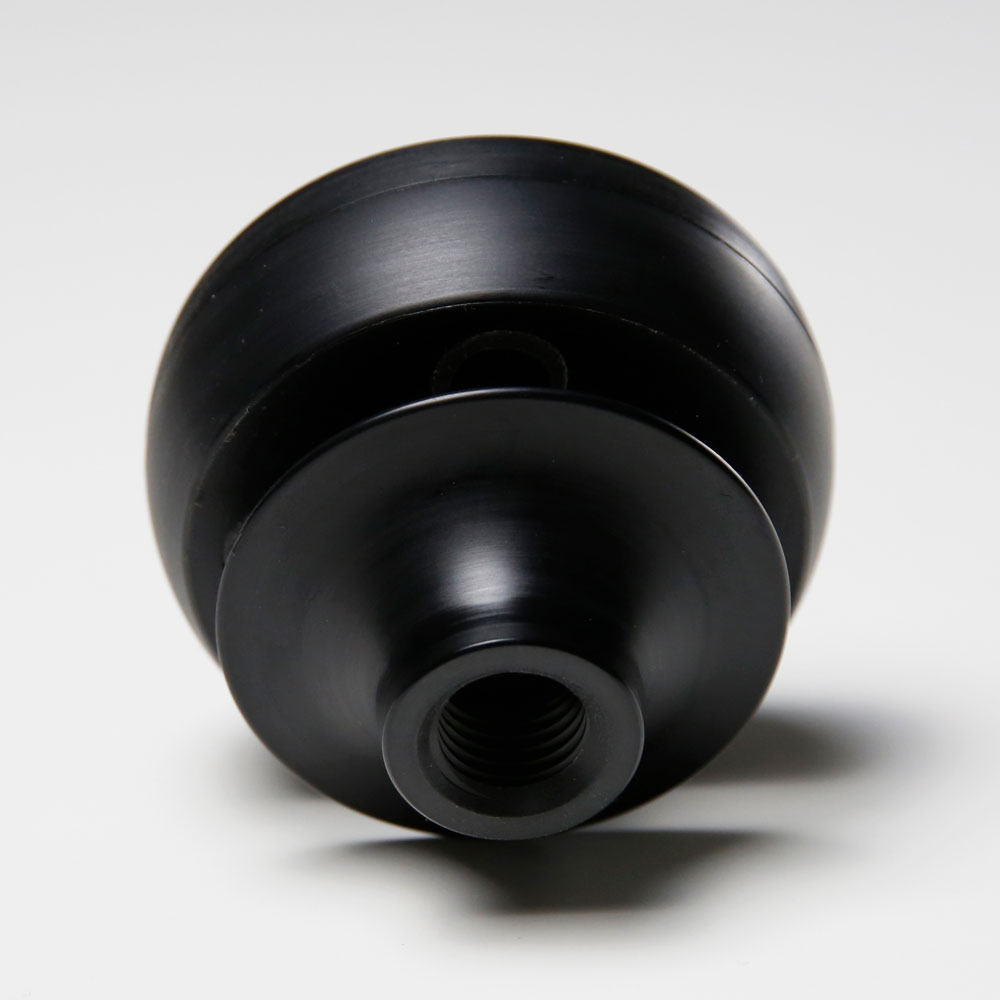

Mount: 16 mm (0.63 in.) (M16 x 2) female thread screw

Compatibility: Android & IOS devices, tablets, Garmin watches

Data Output: Bluetooth
