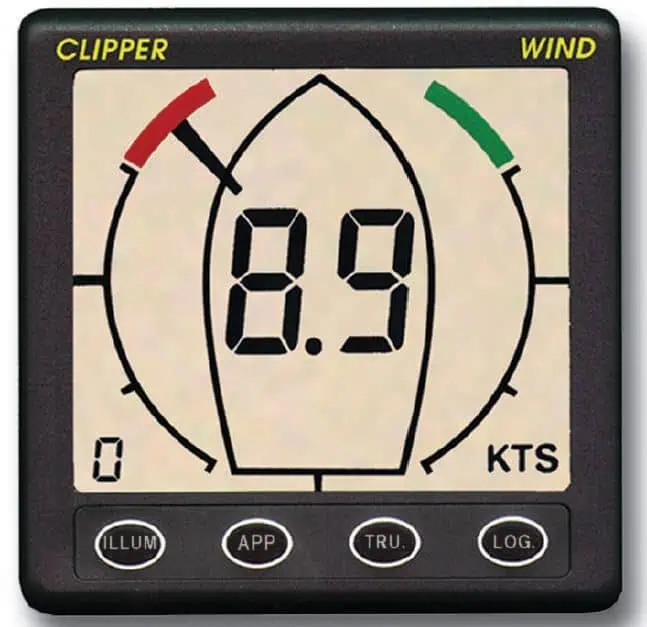

Clipper Tactical – True/Apparent Wind Display Only

This is the wind display only. It will not work with the older 5 cable mk1 wind systems.

The Clipper True Wind Display shows apparent wind speed and direction, when connected to a log or GPS, it can also show true wind speed and direction.

Requires NMEA boat speed input either VHW from log or RMC from GPS for True wind speed and direction

Supply voltage nominal 12 Volts
Supply current 10mA + (10mA for back light
illumination Max)
NMEA input sentence MWV
Back light – 9 levels
Pointer style – 1
Display wind speed – 0 to 99 Kts
Display Wind angle – 0 to 360 degrees
represented by 60 segments

Display case size 110 x 110mm
