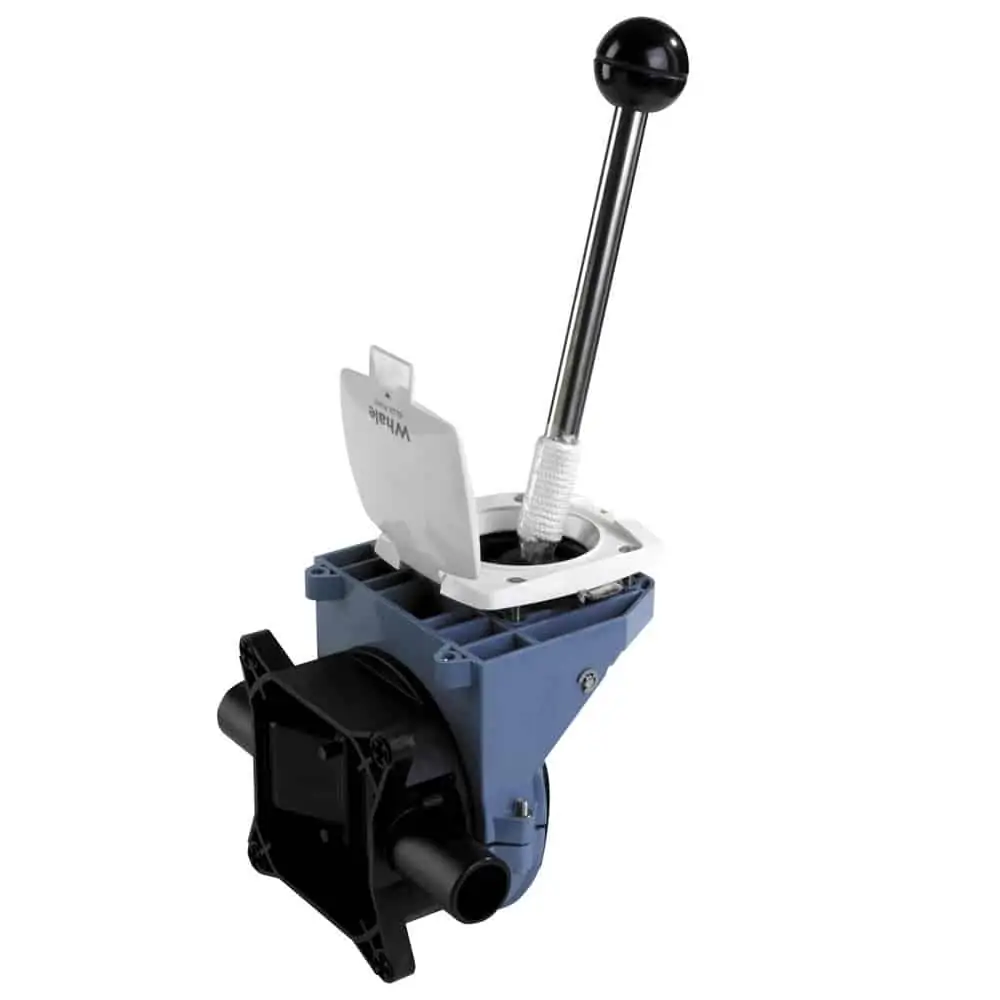

Whale Pump Gusher Titan – Thru Deck / Bulkhead

Tough, lightweight polypropylene model.

A combination of powerful performance and lightweight design.

Features

Proven Design

• Lightweight but tough

Easy use

• Ball handle

Multi Installation

• Clamping ring removable to allow for head rotation

Simple Plumbing

• Smooth 38mm (1 1/2″) hose connections

Benefits

• Tough, lightweight and proven pump from Whale – a decades-old tried and tested design that sailors trust
• High flow rate: 105 litres (28 US gals) per minute
• Quick maintenance – easily removable clamping ring allows for pump head rotation
• Tough, lightweight and proven design
• Thru Deck and Bulkhead mounting options
• Suitable on boats over 12m (40ft)

Tips

• It is important to ensure the system incorporates a vented anti-syphon loop.

Awards & Accreditations

• In accordance with ISO15083 a suitable primary bilge pump for 12m (40ft) boats and over

Specifications

• Weight: 1.85kg (4.1lbs)
• Hose Connections: Smooth 38mm (1 1/2″) hose connections
• Maximum Suction Lift: 4m (13.5 ft)
• Maximum Discharge Head: 4m (13.5ft)

Materials

• Pump Body: Glass-Filled Polypropylene
• Clamp Ring: Acetal
• Diaphragm & Valves: Neoprene
• Operating Lever: Glass-Filled Nylon
• Gaiter: EPDM
• Fasteners: Stainless Steel

Materials in Contact with Fluid

• Glass-Filled Polypropylene
• Acetal
• Neoprene
• Nitrile
