Whale Pump Compac 50

Designed to fit in confined spaces with limited room for a pump.Easy to install in the tight bilge spaces other pumps won’t fit in due to its compact design.

Features:

• Easy grip handle
• Smooth 25mm / 1″ hose connections
• Simple Maintenance
• Clamp ring easily removed for maintenance or head rotations
• Slimline Design

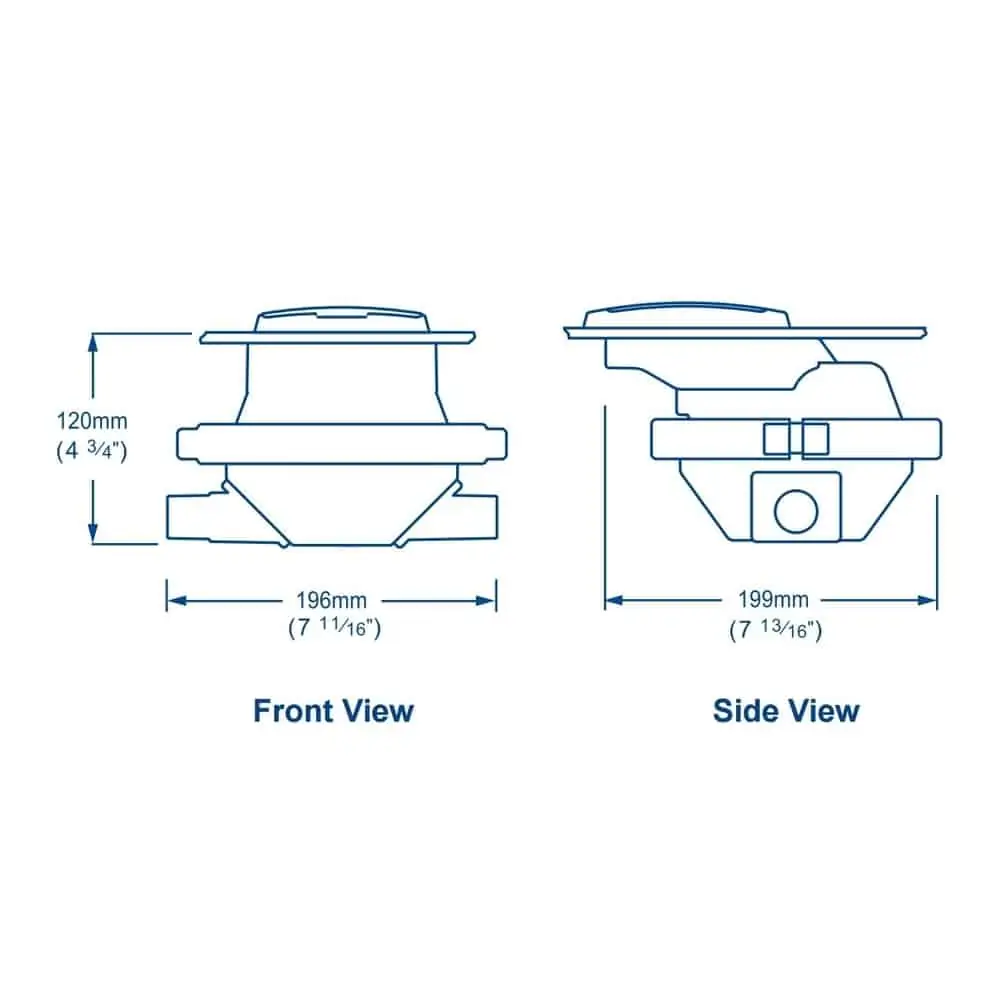

• Only 120mm (4 3/4″) below deck
• Benefits
• Slimmest ever design from Whale
• Sleek deck plate and cover included
• Tough, proven and reliable
• High performance (maximum 35 litres / 9.2 US gals per min)
• Suitable to pump bilge water, saltwater and diesel

Tips

• It is important to ensure the system incorporates a vented anti-syphon loop.

Awards & Accreditations

• In accordance with ISO15083 a suitable primary bilge pump for 12m (40ft) boats and larger.

Specifications

• Weight: 0.9kg (2 lbs)
• Hose Connections: Smooth 25mm (1″) hose connections
• Maximum Suction Lift: 3m (10 ft)
• Maximum Discharge Head: 4m (13.5ft)

Materials

• Pump Body: Glass-Filled Polypropylene
• Clamp Ring: Acetal
• Diaphragm, Valves & Seals: Nitrile
• Operating Level: Glass-Filled Nylon
• Gaiter: EPDM
• Deck Plate Cover: PBT
• Fasteners: Stainless Steel

Materials in Contact with Fluid:

• Glass-Filled Polypropylene
• Nitrile
• Stainless Steel

Performance Data

• Suction Lift: 1m (3ft)
• Discharge Head: 0.5m (1.5ft)
• 45 Strokes per Minute: 32 litres (9 US gals)
• 70 Strokes per Minute: 35 litres (9.2 US gals)
