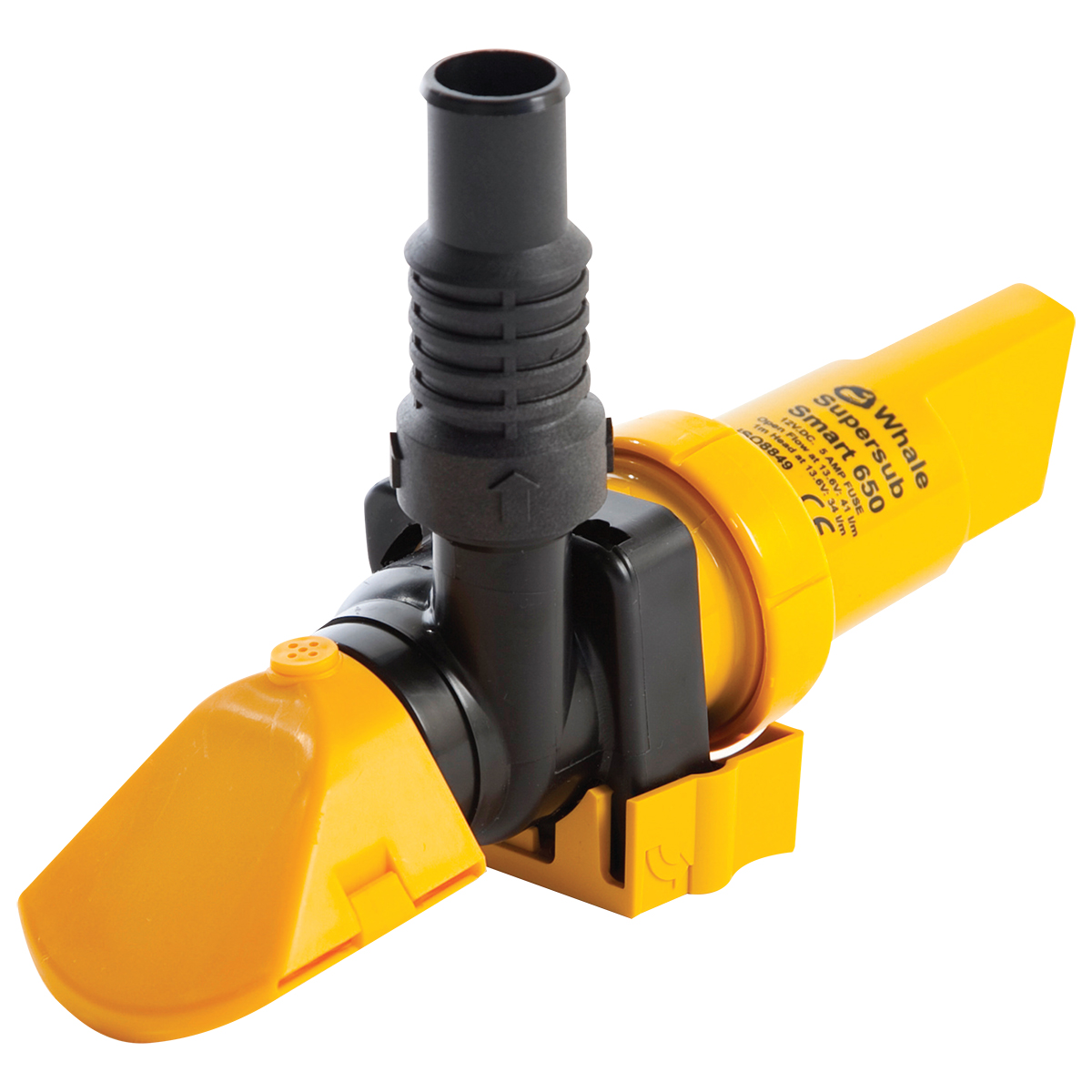

Whale Supersub Smart 650 Bilge Pump 12V

This low profile automatic submersible bilge pump senses bilge water level and switches on and off automatically.

Can be fitted deep in confined bilge areas, under engines and cockpit floors.

Features

• Drains down to as little as 9mm (1/3″)
• Electric Field Sensor Technology
• Straight forward installation
• Multi-position pump and body
• Efficient performance strainer design
• Easy clean
• Unique strainer
• Integrated bleed ball – prevents airlocks
• Barb connection or non-return valve
• Rotates to suit installation

New Improved Design

• Longer run on time for better drainage.
• New installation wedge for optimized operation.

Benefits

• Fits deep into bilge where other pumps can’t.
• No separate bilge switch is required.
• Water level detected by automatically controlled patented electric field sensor.
• Waterproof electronics – protects against water ingress.
• Quick and easy to install – long wires, strainer and outlet rotate to suit bilge area.
• Unaffected by wave motion.
• Environmentally friendly and mercury free.
• Manual override facility included.
• Solid state switching – no moving parts.
• Suitable for use in fresh or salt water.

Easy Clean

• Unique clever strainer design
• Easily removable and replaceable for cleaning

Awards and Accreditations

• Qualtec Award – Menzione Speciale 2009
• NMMA Innovation Award – Honourable Mention 2009
• CE Certified

Approvals and Standards

• Conforms to ISO 8849 and ISO 15083
• Ignition protected per ABYC and USCG standards
• NMMA type accepted

Specifications

• Open Flow Rate: 650 GPH (40 Litres/min) at 13.6V D.C.
• Flow Rate at 1m Head: 550 US GPH (34 Litres/min)
• Nominal Voltage: 12V D.C.
• Current Draw: 3.4 Amps
• Recommended Fuse Size: 5 Amp Automotive
• Wire Size (Caulked Size): 1.5mm (16 AWG)
• Weight: 0.326kg (0.71lbs)
• Maximum Discharge Head: 3m (10ft)
• Hose Connections: 19mm (3/4″) / 25mm (1″) Stepped Port
• Overall Height: 75mm (3″)
• Overall Width: 54mm (2 1/8″)
• Overall Length: 212mm (8 3/8″)

Materials

• Pump Body: Polypropylene, High temperature ABS, Fully potted circuitry
• Locking Ring: Acetal
• Impeller, Glass filled prolyproplene.
• Seals: Nitrile
• Fasteners: Stainless steel
