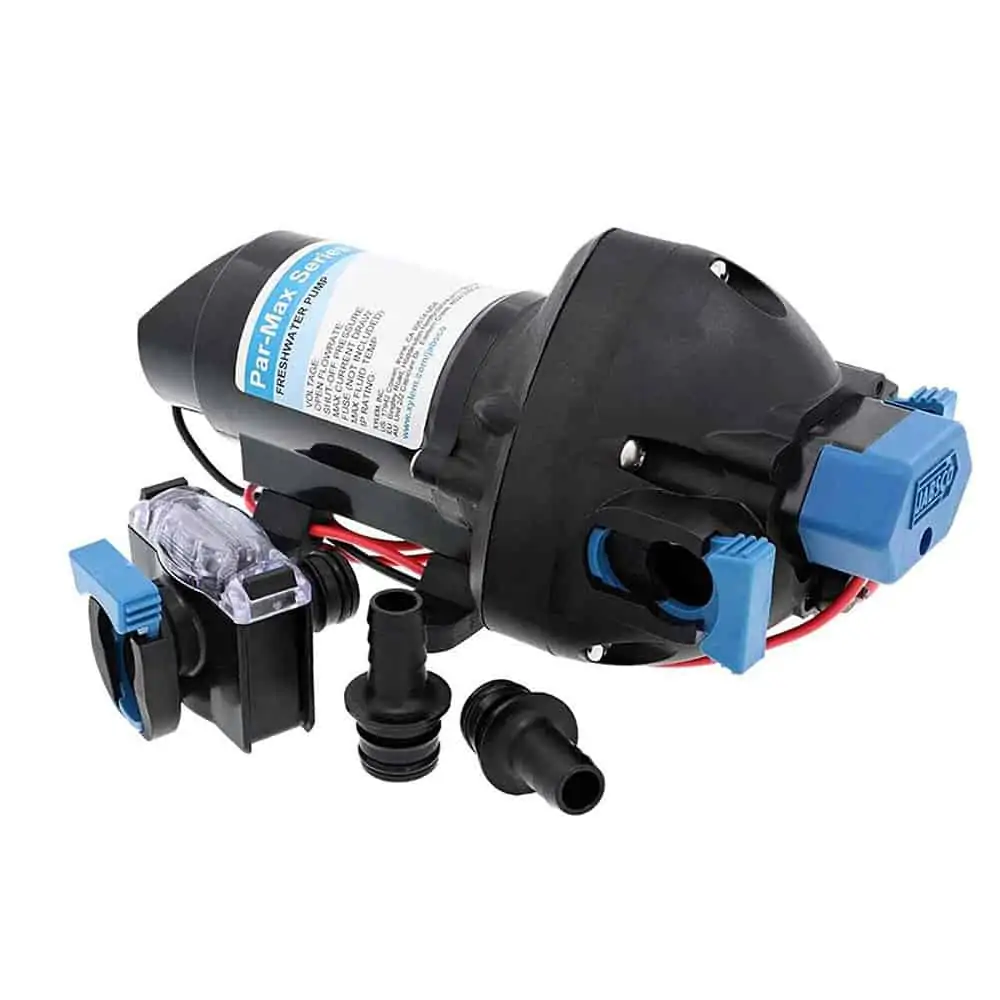

These pumps deliver exceptional performance, even the standard models boast an improved economical footprint.
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminium end bells and lower housing to improve pressure capability and life.
Features
- Efficient, high-flow
- Self-priming pump serving 2 or more outlets
- Multi-diaphragm design self primes to 3m (10ft) vertical lift, can run dry without damage
- Quiet running
- Motor protected by automatic thermal overload cut-out
- Includes bypass feature to provide smooth, quiet flow.
- Supplied with 2 x 1/2″ (13mm) Straight Hose barb.
Specifications
- Connections: for 13mm (½”) bore hose or Hep20 push-fit connectors CW193
- Dimensions: 231mm long, 99mm wide, 106mm high
- Fuse Size: 10(amp)
- Maximum Current: 6(amps)
- Output: 7.6 litres/minute (2 gallons/minute) open flow
- PRESSURE SWITCH – cuts in at 1.7bar (25psi) – cuts out at 2.4bar (35psi)
- Weight: 1.6kg
