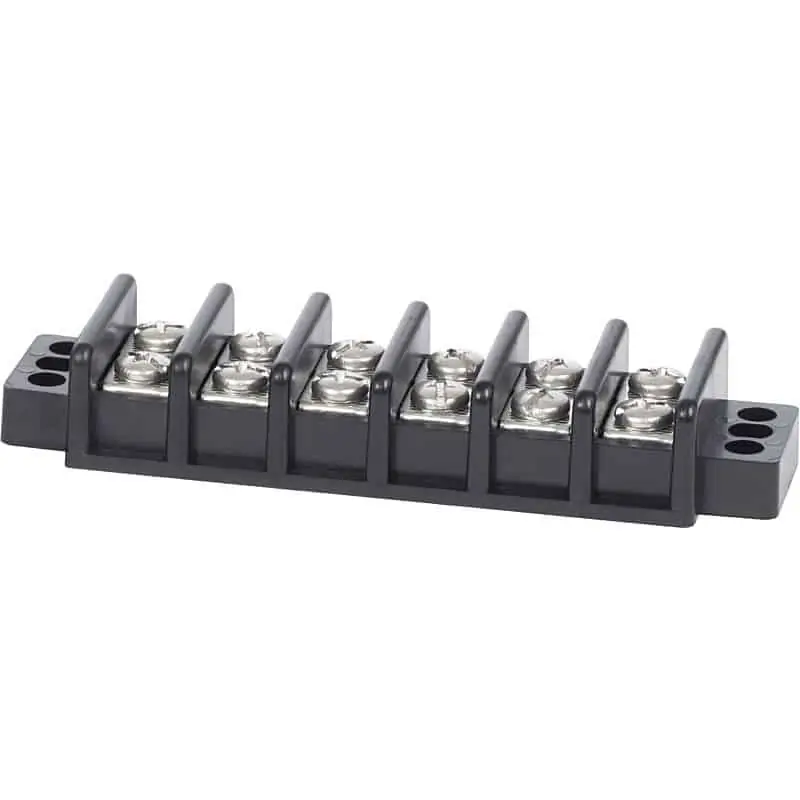

Blue Sea Terminal Block 6 Circuit
£ 11.05 £ 9.95
3 in stock
Closed back design completely insulates power from the mounting surface.
Each screw pair is one isolated circuit.
Jumpers allow creation of common circuits.
| Circuits | 6 |
| Length | 4.38in (111.25 mm) |
| Maximum Voltage | 600V AC/DC |
| Continuous Rating* | 30A |
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
| Weight | 0.21lb (0.1 kg) |
